Model 5820XL / 5820XL-EVS Installation Manual LS10061-001SK-E
7-7
• Troubles would activate Output Group 2 using the zone-coded cadence pattern.
To accomplish this you need to access the screen for each event and then select your output groups. Figure 7-5
shows how you would program this application.

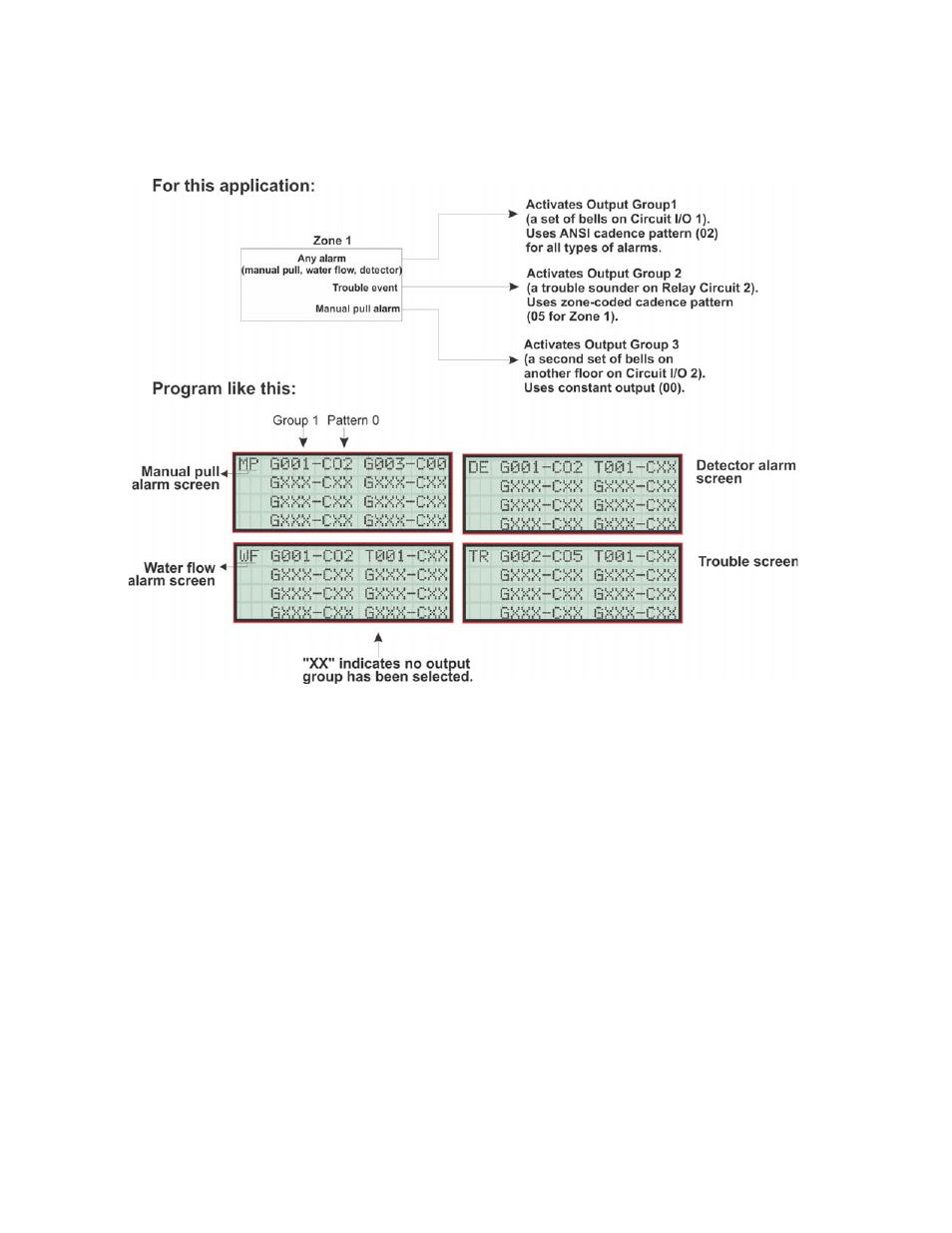

Figure 7-5 Zone Mapping Example
7.3.1.4 Cadence Patterns
The cadence patterns shown in Figure 7-6 are available for use with the control panel. Cadence patterns can be
selected by event type for each zone or for the entire system. Special cadence patterns can be selected for fire
