Model 5820XL / 5820XL-EVS Installation Manual LS10061-001SK-E
5-5
5.4.2 Wiring 5815XL in Style 6 & 7 (Class A) Configuration
The following figure illustrates how to wire the SLC loop for Style 6 or Style 7 Class A installations.
Note: Style 6 does not use short circuit isolator devices.
Note: Style 7 wiring requires an isolator module as the first device on the in and the out loops.
Note: No t-taps allowed on class A SLC loops.

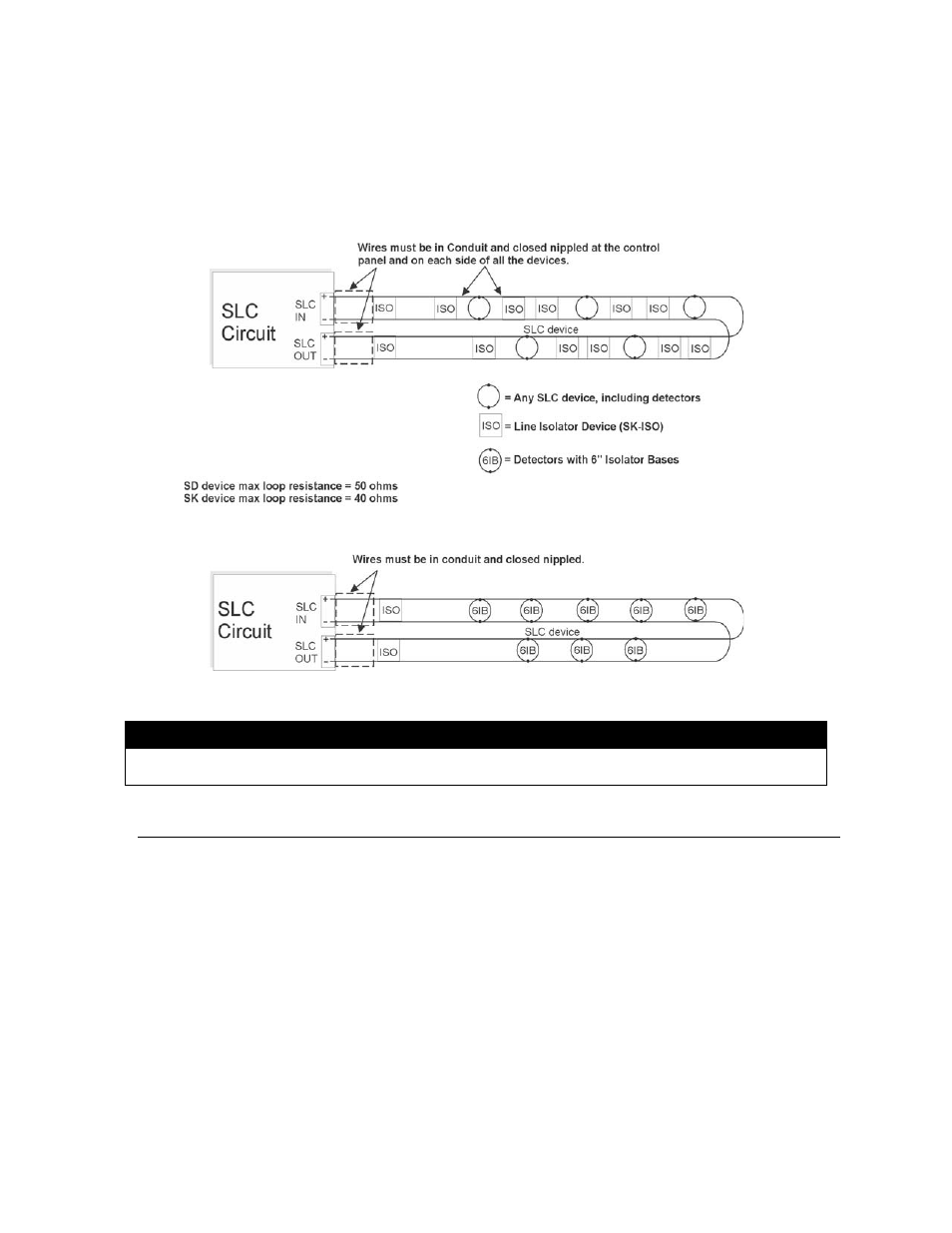

Figure 5-3 Class A SLC Configuration
5.5 Wiring SK SLC Detectors
This section describes how to install SK heat and smoke detectors. All detectors ship with installation
instructions. Refer to the detectors’ installation instructions for more detailed information.
This information applies to the following SK models:
• SK-Photo Photoelectric Smoke Detector
• SK-Photo-T Photoelectric Smoke Detector with Thermal
• SK-Acclimate Photoelectric Smoke Detector with Thermal
• SK-Heat Fixed Temperature Detector
• SK-Heat-T High Temperature Thermal Detector
• SK-Heat-ROR Rate-of-Rise Thermal Detector
• SK-Ion Ionization Smoke Detector
• SK-Fire-CO CO Detector
Caution
For proper system supervision do not use looped wire under terminals marked SLC + and – of the SLC device connectors.
Break wire runs to provide supervision of connections.
