SilentKnight 5820XL - Manual (Page 35)

LS10061-001SK-E Control Panel Installation
4-2
4.2 AC Connection
At installation, connect the AC terminals to the power source as shown in Figure 4-1. It may be necessary for a
professional electrician to make this connection.
The AC terminals are rated at 120 VAC, 60 Hz, 2.7A.

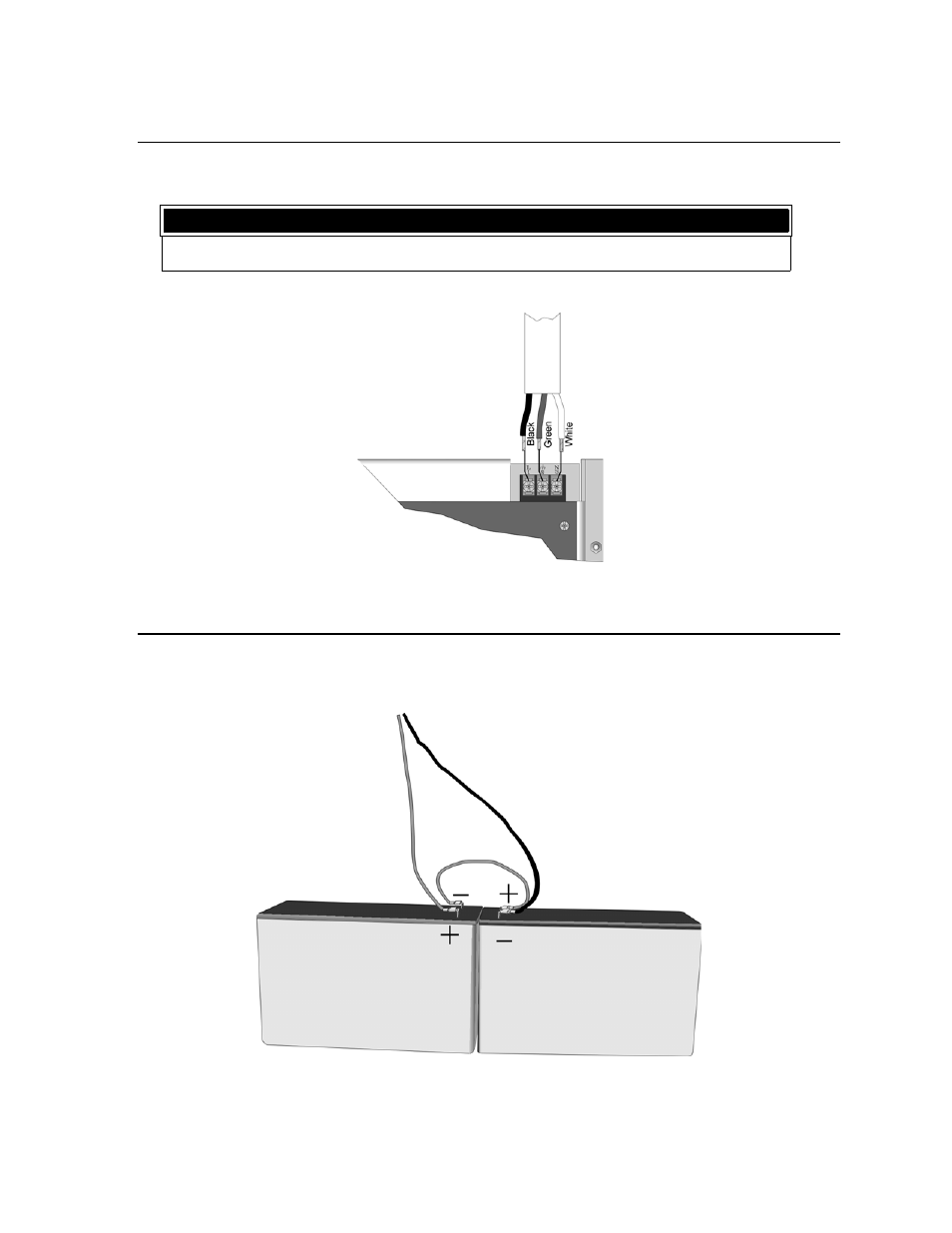

Figure 4-1 120 VAC Power Connection for the 5820XL/EVS
4.3 Battery Connection
The control panel battery charge capacity is 7.0 to 35 AH. Use 12V batteries of the same AH rating. Determine
the correct AH rating as per your current load calculation (see Section 3.6).
Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase the AH rating.
* It is recommended that you replace batteries every five years.
Figure 4-2 Battery Connection
Warning
To reduce the risk of electric shock, this product is provided with a grounding type power supply cord. Connect
product to a grounded receptacle.
To Control Panel
Red
Black
Battery Jumper
(P/N 140694)
Shipped With Panel
12V Gel Cell Battery 12V Gel Cell Battery
