SilentKnight 5820XL User Manual
Page 69
LS10061-001SK-E
Control Panel Installation
4-36
1.
Wire the MR-201/T as shown in Figure 4-45.

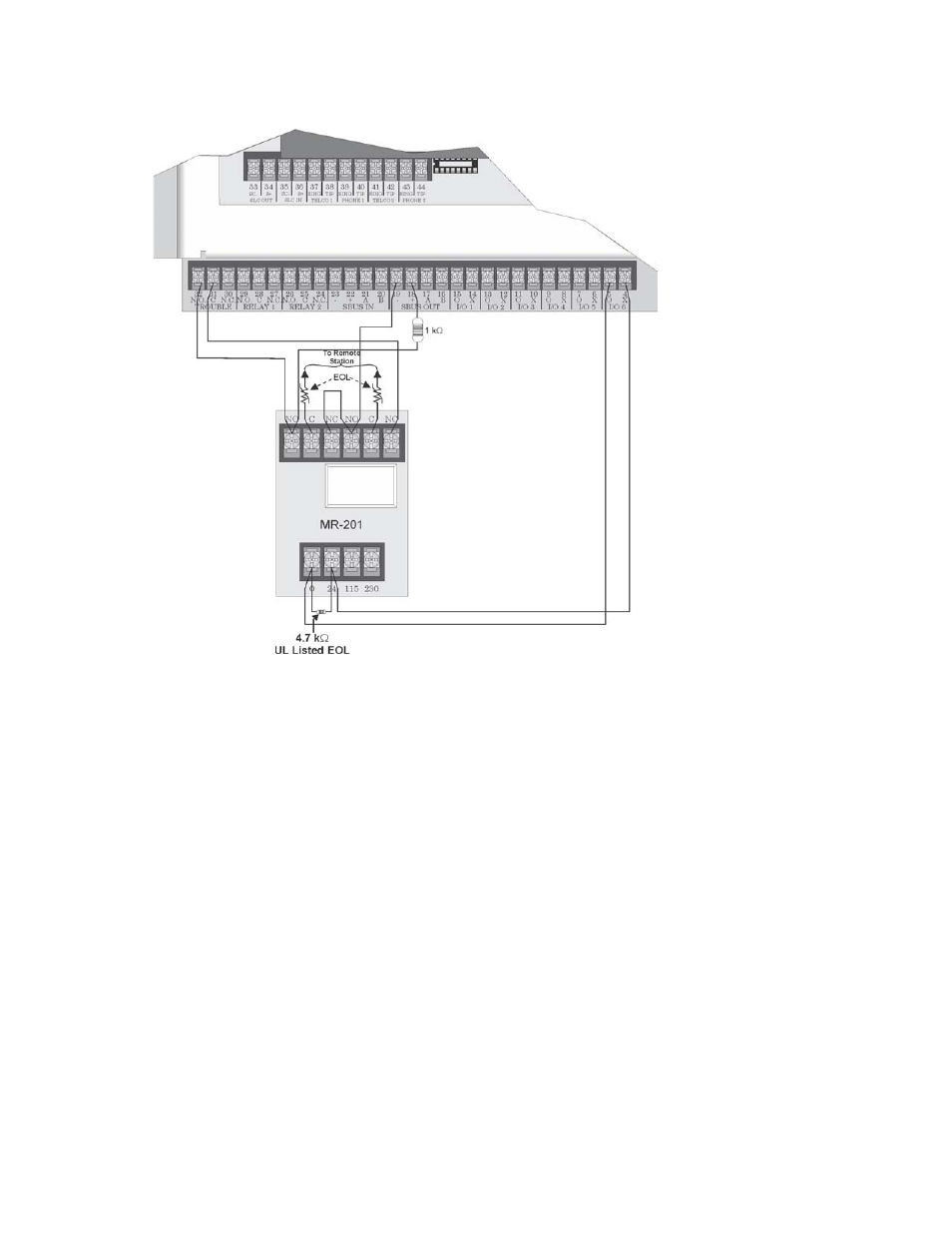

Figure 4-45 Wiring the MR-201/T
2.
Program the Flexput circuit for non silence NAC circuit (see Section 7.5).
Intended for
Connection to a
Polarity Reversal
Circuit of A Remote
Station Receiving Unit
Having Compatible
Rating.
