LS10061-001SK-E Programming
7-4
7.3.1.1 Edit Zone Name
6. Press 1 to edit the selected zone’s name.

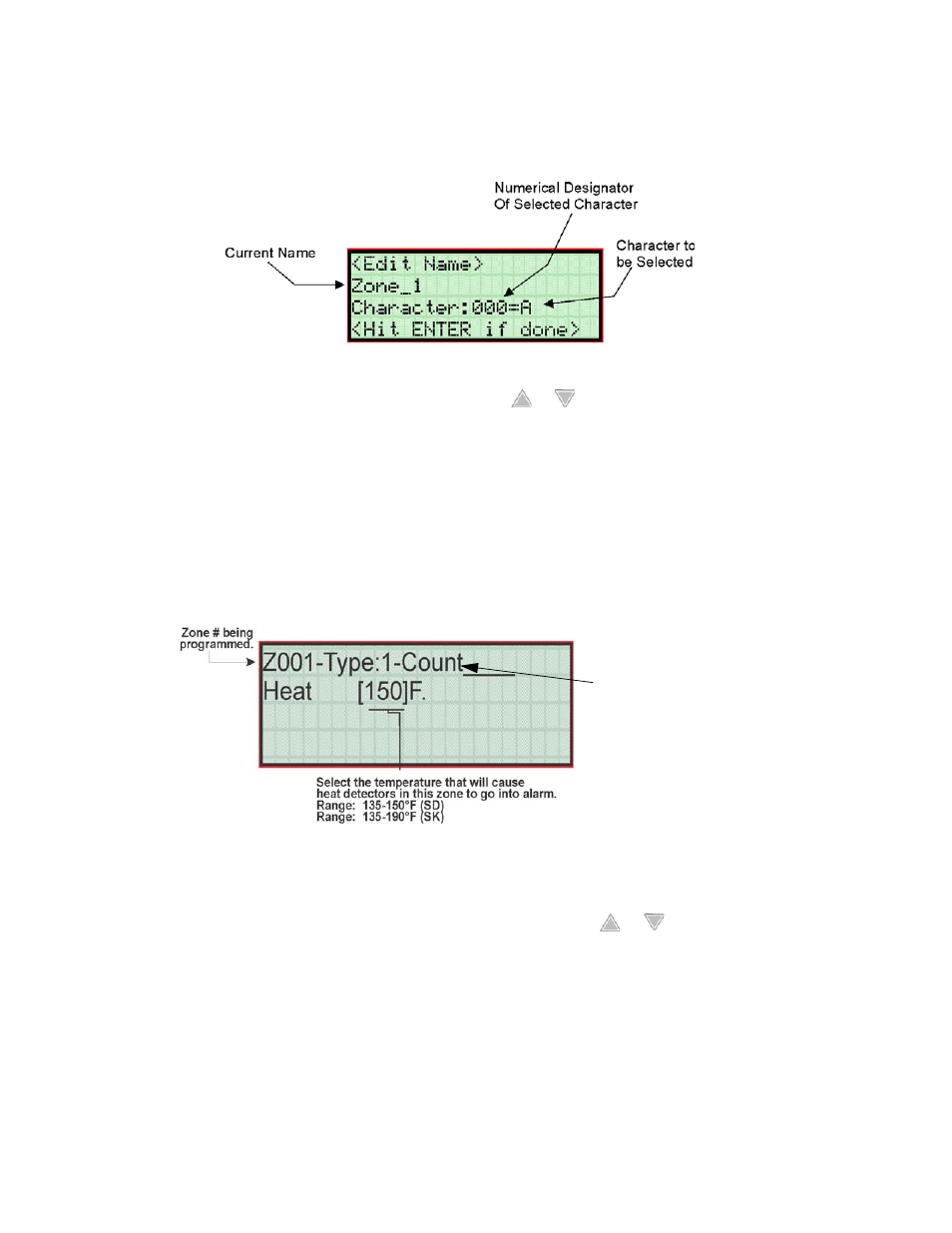

A screen similar to the one shown in Figure 7-2 displays.
Figure 7-2 Selecting Character for Zone Name
7. Select the characters for the zone name by pressing the or arrow until the desired character is shown
then press the right arrow or see Appendix B of this manual for a list of available characters and their
numeric designators.
8. Repeat step 8 until the name is complete.
9. Press ENTER when the name is complete.
7.3.1.2 Edit Zone Properties
Zone properties consist of alarm delay characteristics, heat detector sensitivity.
1. Do steps 1 through 5 of Section 7.3.1.
2. Press 2 to edit the properties of the selected zone.
Figure 7-3 Editing Zone Properties
Alarm Delay Characteristics
3. Select the alarm delay characteristics (see Table 7-1) by pressing the or arrow.
Detection type also selected
from this screen (see Table 7-1).
