Model 5820XL / 5820XL-EVS Installation Manual
LS10061-001SK-E
4-37
4.14.6
Transmitter Activated by Dry Contacts

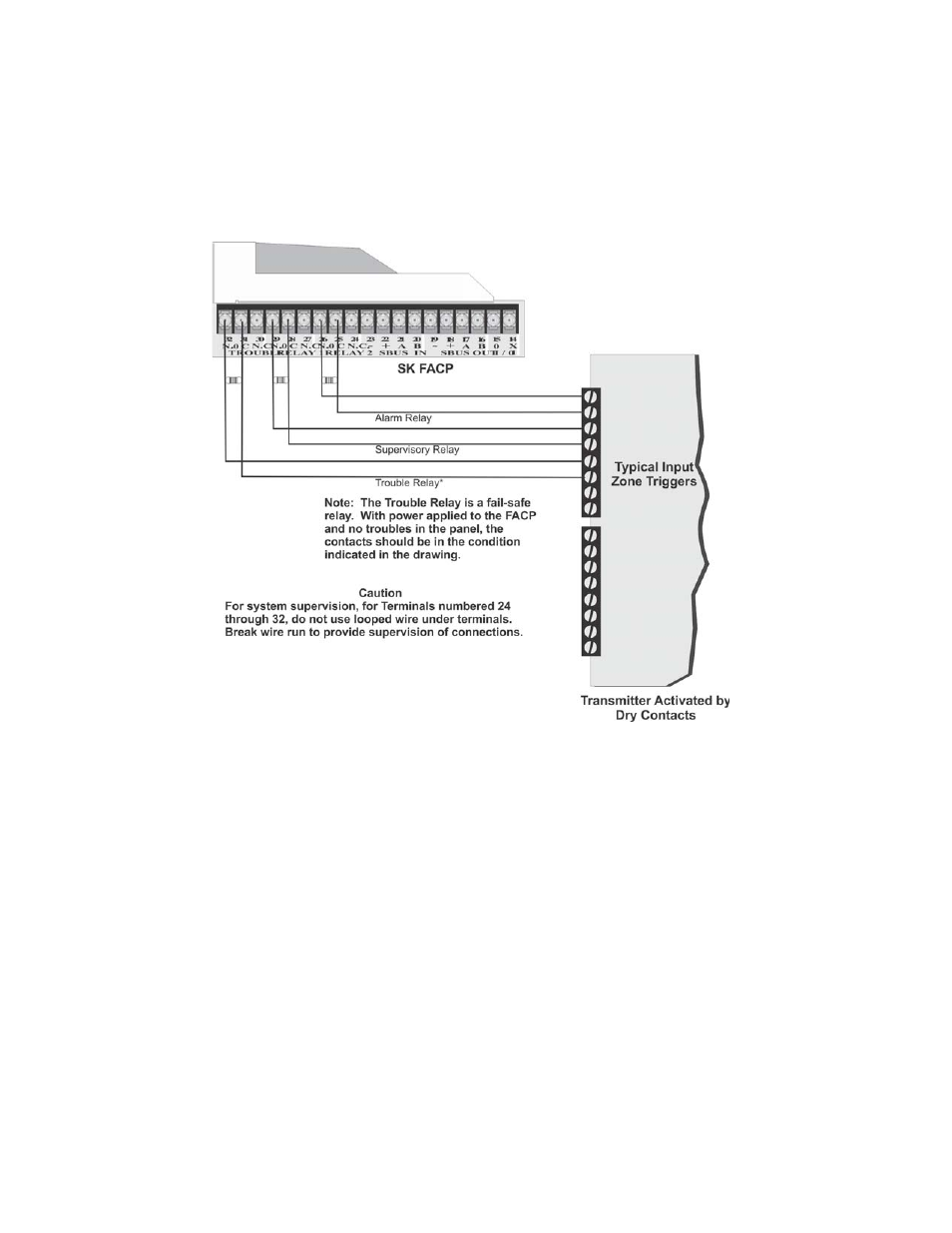

This section describes the connection of a UL 864 listed remote station transmitter to the 5820XL / 5820XL-EVS
FACP dry contacts. The FACP contacts must be supervised by the remote station transmitter module using end-
of-line resistors (ELRs) with a value determined by the transmitter manufacturer. Power is also provided by the
remote station transmitter manufacturer. Refer to the remote station transmitter manufacturer’s manual for
details.
