While in the Local Record mode, select keys 1-15 will be used to reference message slots 1-15. The associated
green Select Key will indicate that a message is currently programmed in the corresponding slot. When there is
no message recorded (or the message is erased), the associated green Select Key LED will be off. While
recording a particular message, the red Select Key will turn on until recording is completed. The Select Key 1-15
will be used to playback a recorded message or to select a message slot to record to or erase.
When in the Local Record mode, the EVS-VCM LEDs will function as follows:
9.10.1 Recording Messages 1-15 Using Aux Audio Input
Recording messages from the Aux Audio Input enables you to load customized, pre-recorded messages into an
EVS message location.
Follow these steps to record user message using Aux Audio Input:
Note: Refer to the Section 7 for detailed programming information.
1. Wire a speaker cable with 1/8” mini plug (Radio Shack Cat. No. 42-2454) to the Aux AUDIO GND and IN
terminals. Refer to Figure 9-7.

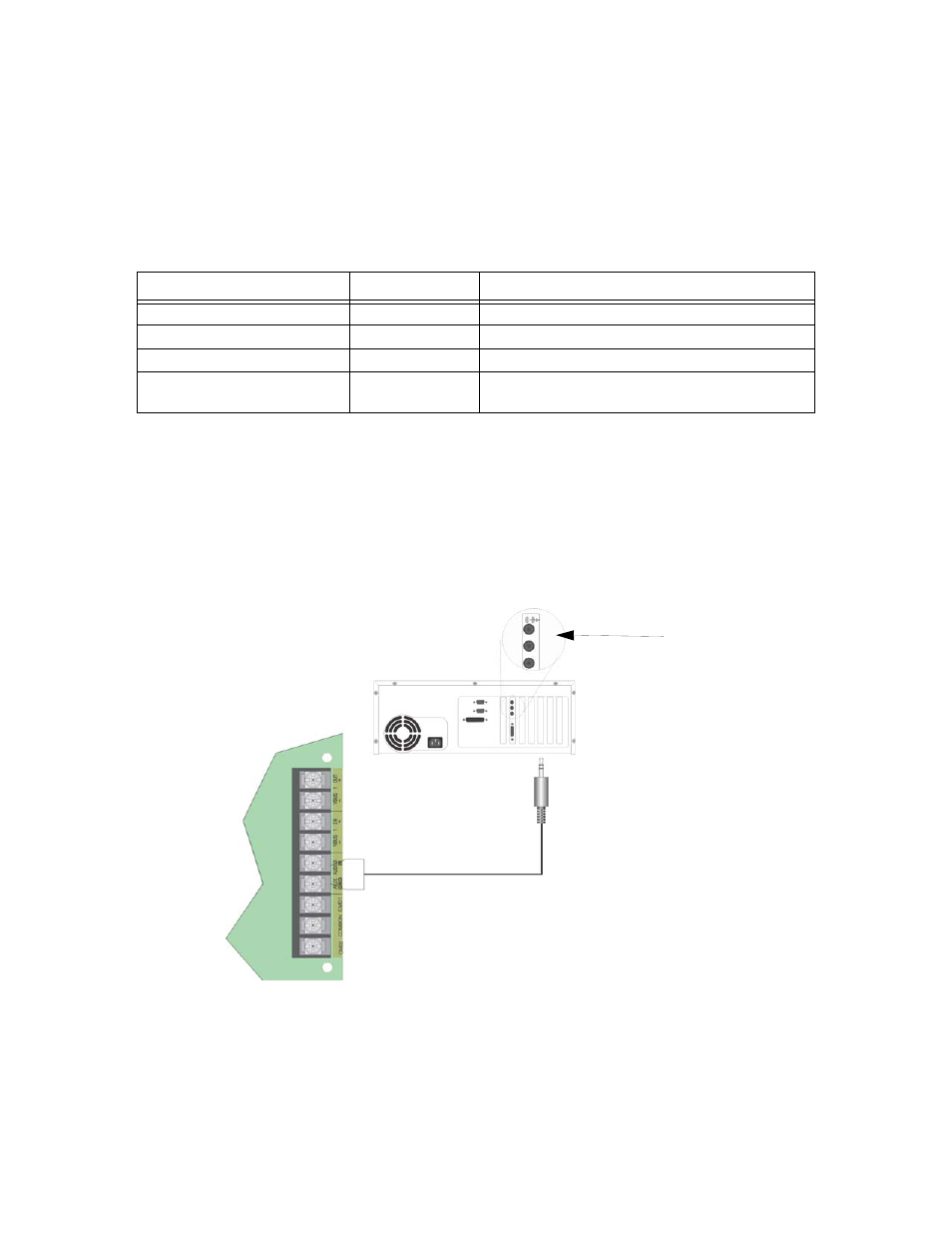

Figure 9-7 AUX Audio Connection for Recording
2. Plug the mini plug into the Line Out/Headphone jack on a PC or laptop. See Figure 9-7.
3. Enter programming mode at main control panel.
4. Select option 9 Voice Options.
5. Select option 1 VCM Maintenance.
Table 9-1: LED Functions During Programming
Switch LED Active LED Status Meaning
Select Key 1-15 Green LED On Message is currently programmed in this slot
Select Key 1-15 Red LED On Message recording is in progress
Select Key 1-15 Green/Red LED Off/Off Message slot is empty
Select Key 1-15 Red LED Flashing Message is being played back or message is
selected for recording
Plug in here
