7.4 Group
An output group is made up of output points that have been programmed to respond in the same way. Output
groups simplify programming because you only have to program the output characteristics that are common to
all of the group points once, instead of programming each individual point. Once you have defined the
characteristics of output groups, you can assign each point to the appropriate group. All valid output points are
assigned to only one output group. Unused points are not assigned to any output group. Up to 250 output groups
can be defined.
Each output group is defined as either a voice output group or a non-voice output group. Output points that are
audio circuits (all circuits on the EVS-50W, EVS-INT50W, EVS-100W, EVS-125W and EVS-CE4) can only be
assigned to voice output groups. Output points that are non-voice circuits (all other points and circuits that are on
all modules except the EVS-50W, EVS-INT50W, EVS-100W, EVS-125W and EVS-CE4) are assigned to non-
voice output groups.
7.4.1 Edit Group
In the edit group option you can program the name of an output group (Section 7.4.1.1) and change the properties
(Section 7.4.1.2) of that group.
To edit a group, follow these steps:
1. Enter the installer code. The panel will automatically go the main menu.
2. Select 7 for Program Menu.
3. Press 3 to enter group menu.
4. Press 1 to edit group.
5. Enter the number of the group you wish to edit, then press ENTER.
7.4.1.1 Edit Group Name
6. To edit the group name, press 1.
A screen similar to the one shown in Figure 7-8 displays.
7. Select the characters for the zone name by pressing the or arrow until the desired character is
shown. Refer to Appendix B for a list of available characters.
8. Repeat step 8 until the name is complete.
9. Press ENTER when the name is complete.

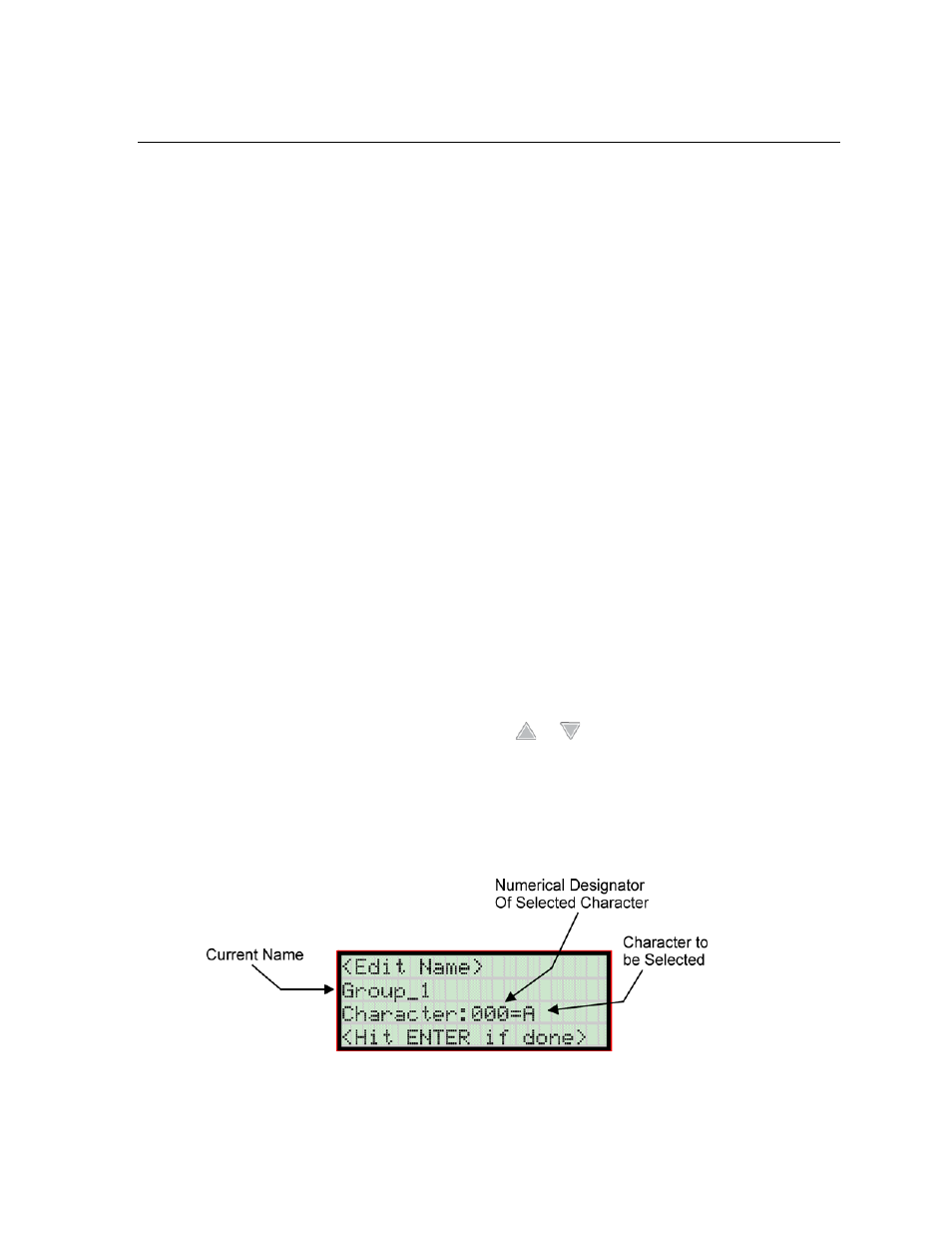

Figure 7-8 Selecting Character for Group Name
You can use words or numbers to create a descriptive name
or a group. Press the number (see Appendix B) until the character is shown.
Arrow left or right for position, and press Enter to accept.
