7.6.3.1 Trouble Events
You can map certain system trouble events to an output group. To access the screen for selecting output groups
and cadence patterns for system trouble events.
5. Press 1 for Trouble Events. A screen similar to the one in Figure 7-15 will display. Select a group and a
cadence pattern for each event as needed for your application. The U: field is for a user-specified trouble
condition. You can program an output group and cadence pattern for any of the following events:

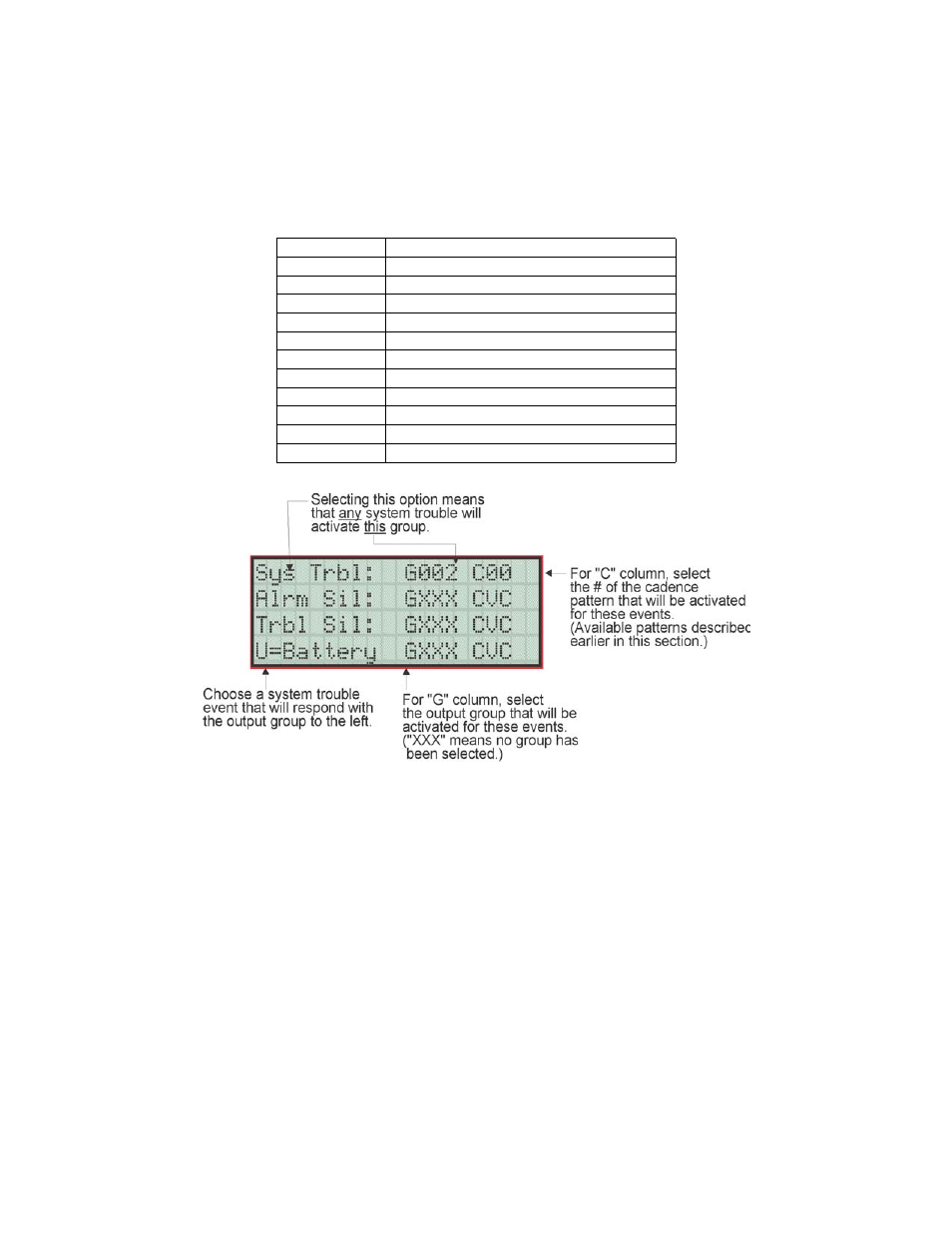

Figure 7-15 System Trouble Event Mapping Example
7.6.3.2 System Alarm Cadence
Fire drill and system auxiliary alarm events can have special cadence patterns to distinguish them from other
types of alarms. See Section 7.3.1.4 for available cadence patterns.
A typical use of the System AUX1 and AUX2 patterns is to distinguish fire emergencies from other types of
emergencies. The System AUX1 and AUX2 alarms would be triggered by a system-wide switch.
To access the screen for selecting output groups and cadence patterns for system trouble events:
1. Enter the installer code. The panel will automatically go to the main menu.
2. Select 7 for Program Menu.
3. Select 5 for System Options.
4. Select 2 for Sys. Event Outputs.
5. Press 2 for System Alarm Cadence.
A screen similar to the one in Figure 7-16 will display. Select a cadence pattern for these special events if
Battery Low battery condition
Gnd Flt Ground fault
Phone Ln Phone Line 1 or 2 trouble
Account Account trouble; cannot report to account
Printer Printer trouble
Aux Pwr Auxiliary power trouble
Sys Sw Trouble with a system switch
Group Tr Trouble with an output group
SBUS Com SBUS communication trouble
SBUS Pwr SBUS power trouble
SLC Loop Trouble on the SLC loop
AC Loss AC power lost
