Model 5820XL / 5820XL-EVS Installation Manual
LS10061-001SK-E
4-13

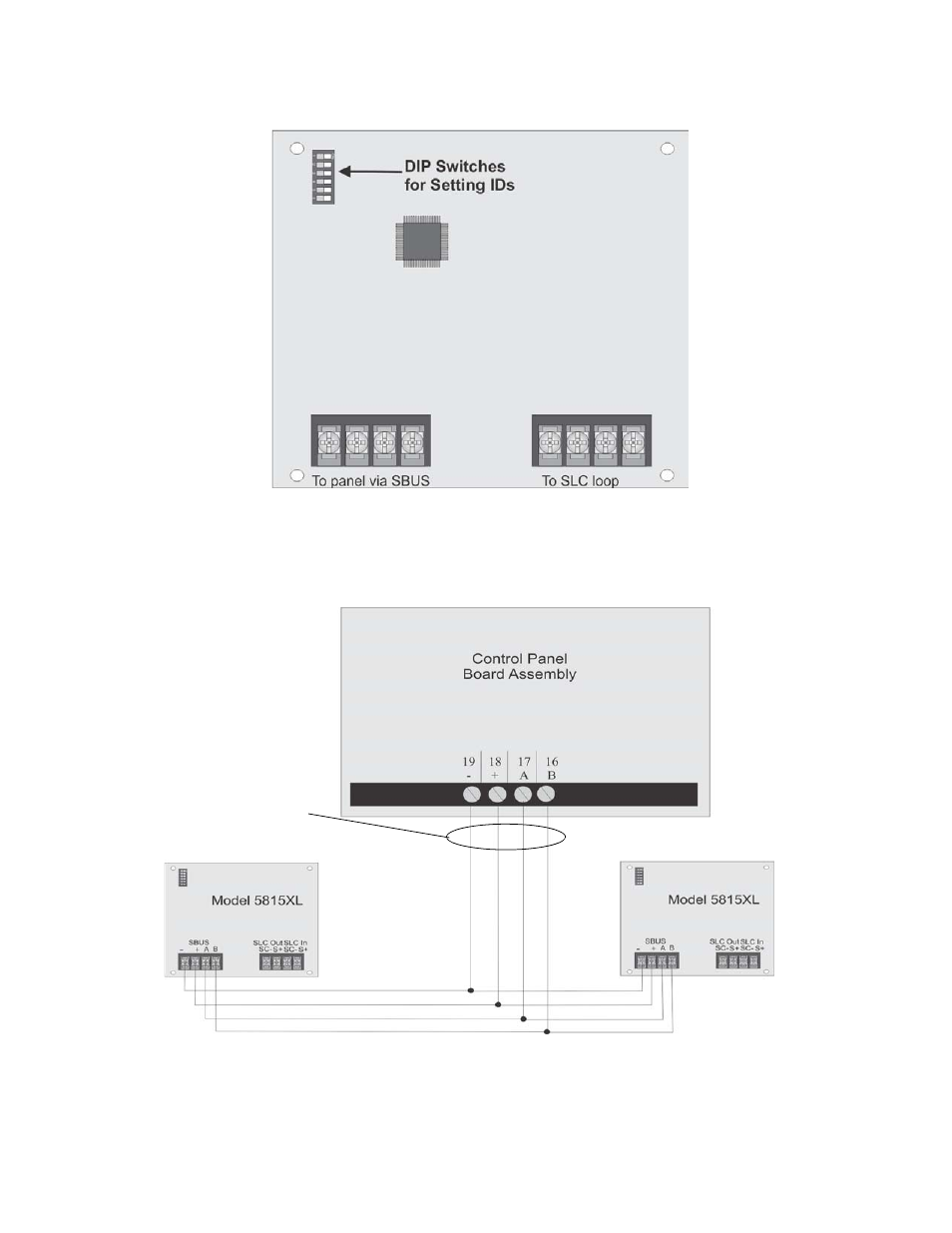

Figure 4-15 is a drawing of the 5815XL board, showing the location of terminals and DIP switches.
Figure 4-15 5820XL Board
4.6.1
5815XL Connection to the Panel
Connect the 5815XL to the control panel as shown in Figure 4-16. After the 5815XL is connected to the panel, it
must be added to the system. This programming step is described in Section 4.10.
Figure 4-16 5815XL Connection to Main Panel Assembly
Supervised
Power Limited
