Model 5820XL / 5820XL-EVS Installation Manual LS10061-001SK-E
5-7
5.7 Wiring SD SLC Detectors
This section describes how to install SD heat and smoke detectors. All detectors ship with installation
instructions. Refer to each detectors' installation instructions for more detailed information.
This information applies to the following SD models:
• SD505-AHS Heat Detector
• SD505-AIS Ionization Smoke Detector
• SD505-APS Photoelectric Smoke Detector
To wire SD505-APS, SD505-AHS, or SD505-AIS detectors:
1. Wire device bases as shown in Figure 5-6.
2. Set the address for each device as described in Section 5.8.

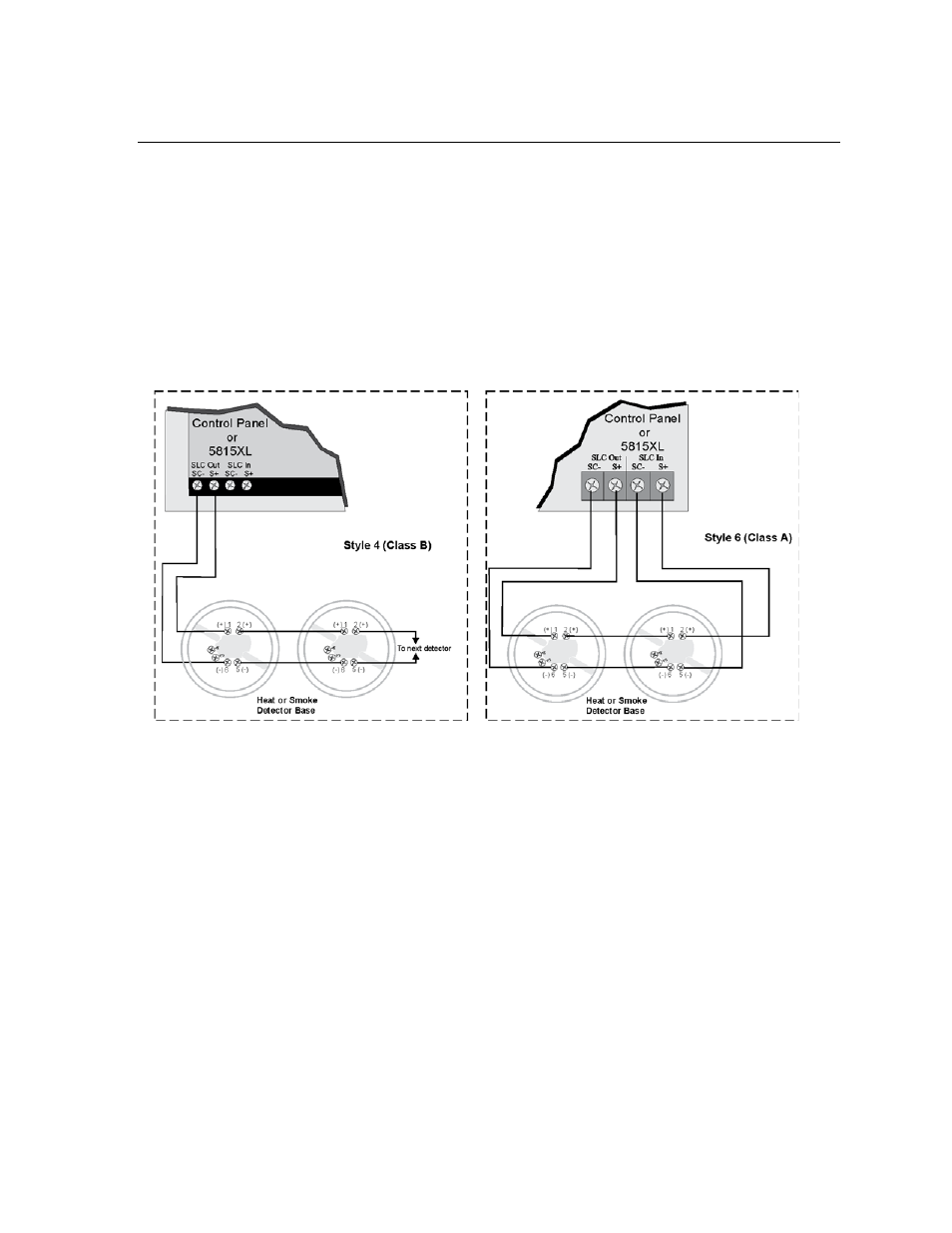

Figure 5-6 Heat or Smoke Detector Connection to the FACP
