Frame 14 Installation
11-27
3. The MCCBs can now be closed (see
"Closing the Circuit Breakers and
Energizing the Drive" on page 11-27
).
Closing the Circuit Breakers and Energizing the Drive
1. Close and latch all enclosure doors.
2. Press the “Close” (green) control button on the enclosure door.
3. The circuit breakers can be opened by pressing the “Open” (red) control
button on the enclosure door.
The motor operators are automatically recharged when they are opened.

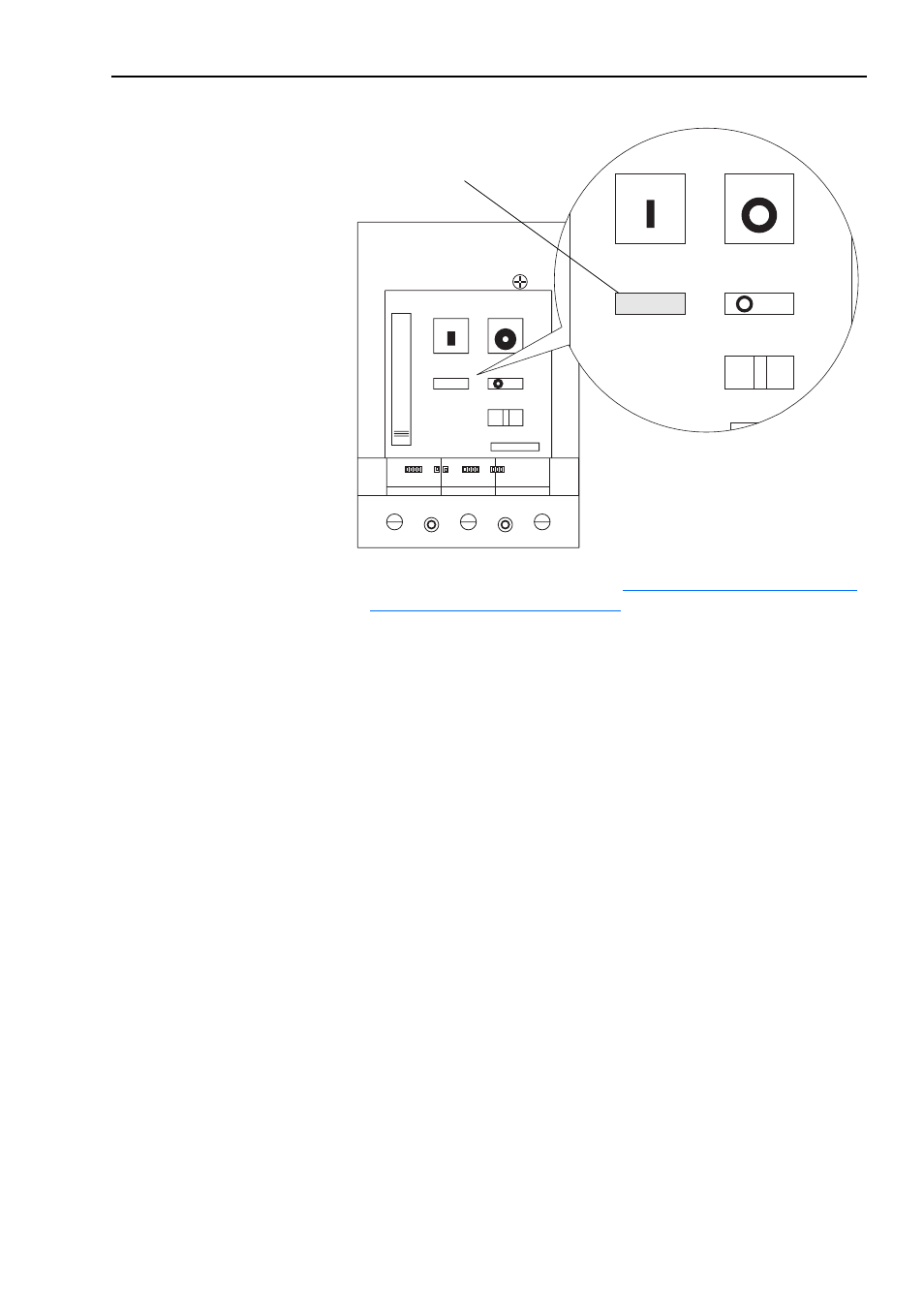

P
us
h On
P
us
h Off
OFF
DI
S
CHARGED
S
PRING
L
S
I
N
CHARGED
S
PRING
Status Text displays “Charged Spring”
when charged.
