11-26 Frame 14 Installation
Charging the MCCB Motor Operators
The stored energy motor operators must be charged prior to the first time the
circuit breakers are closed and whenever input power is removed and
re-applied to the drive.
1. With the doors of the enclosures containing the MCCBs open, apply
control voltage to the drive.
2. Press and hold the “Open” (red) control button on the enclosure door
until the status text “Charged Spring” displays on each of the MCCBs
(see illustration below).
!
ATTENTION: When an external device for circuit breaker
motor operator status is not used, the enclosure door(s) must be
open in order to view the status indicator on the circuit breakers.
Only qualified personnel familiar with PowerFlex 700S and
700H drives and associated machinery should plan or implement
the installation, start-up and subsequent maintenance of the
system. Failure to comply may result in personal injury and/or
equipment damage.
CLOSE
OPEN
CLOSE
OPEN

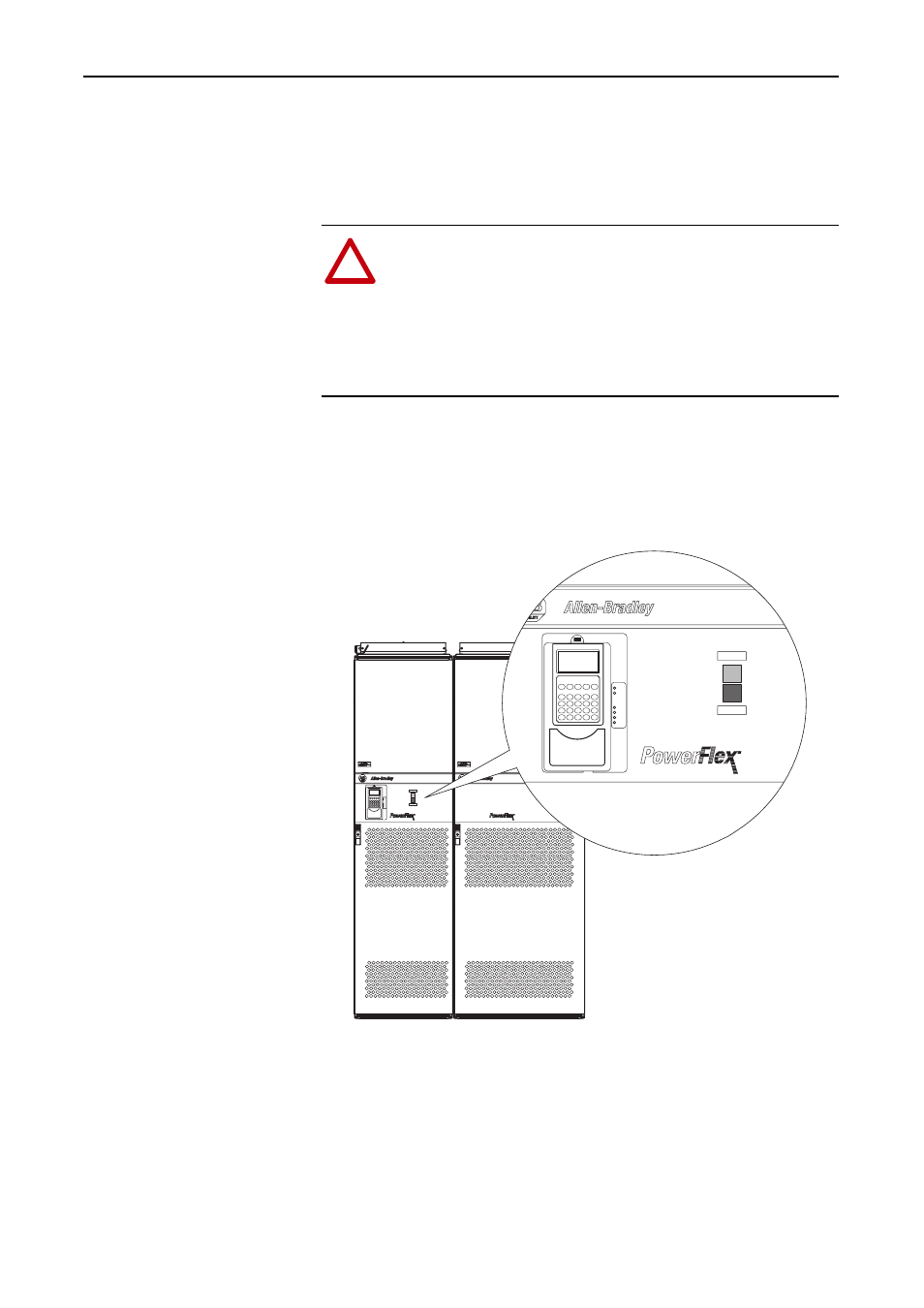

Close and Open buttons
location on enclosure door.
