Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 163
Frame 14 Installation
11-17

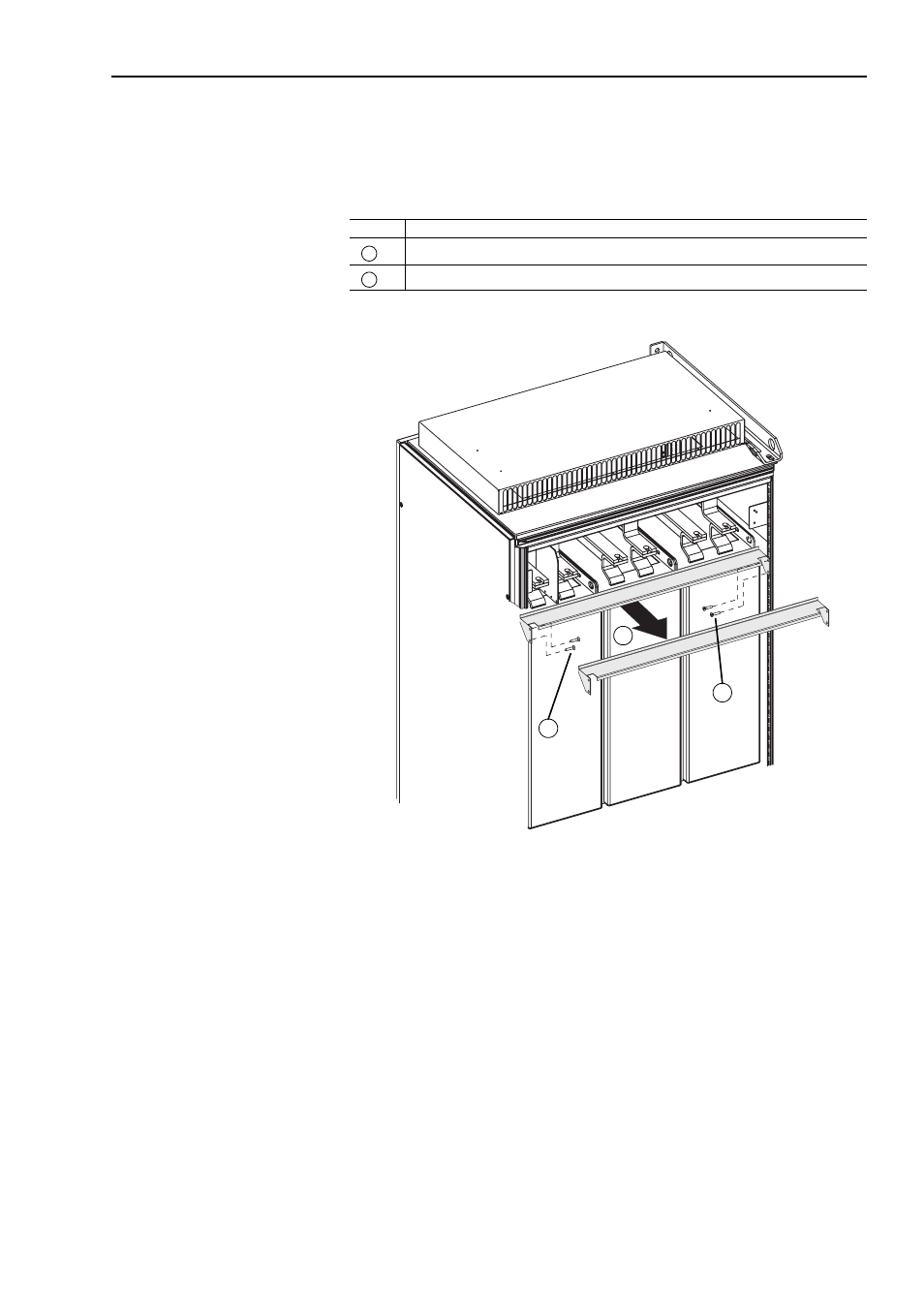

Removing the Airflow Plates
The drive is equipped with plates, just above the top of the protective
covers, that direct airflow through the drive enclosure. You must remove
these plates in order to access the protective covers.
Task
Description
Remove the T8 Torx-head screws that secure the airflow plates to the drive.
Slide the airflow plates off of the drive.
A
B
A
B
A
