B-2 Lifting and Mounting Instructions
Lifting Frame 9 Size Drives
Important: When lifting frame 9 drives, a rod must be placed between the
lifting holes as shown in Figure B.1 .

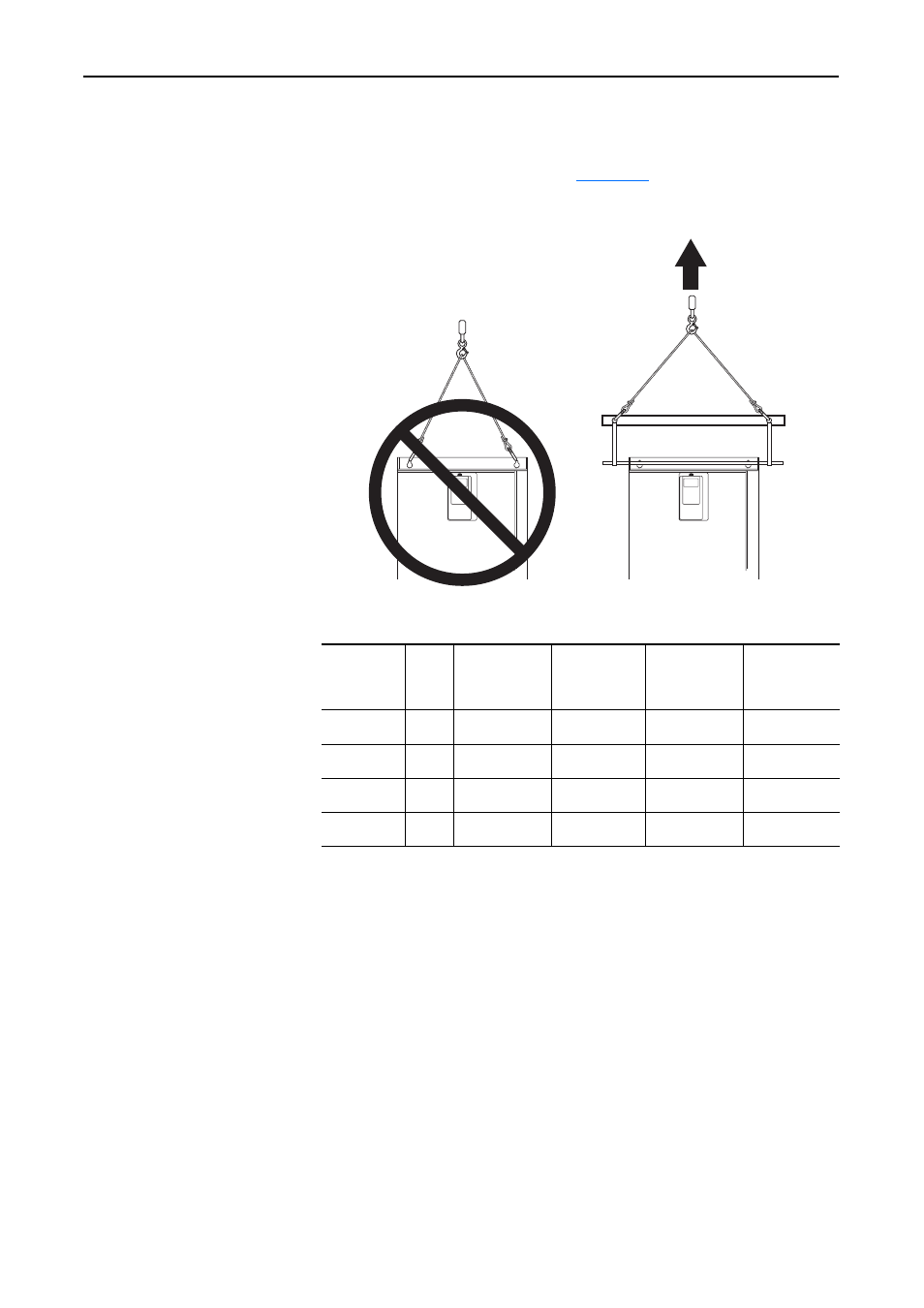

Figure B.1 Frame 9 Lifting
Table B.A Frame 9 - Approximate Drive and Enclosure Weights
Voltage Class
Drive
Rating
Amps AC Input Drive &
Enclosure
Weight kg (lbs.)
AC Input Drive,
Enclosure &
Packaging
Weight kg (lbs.)
DC Input Drive &
Enclosure
Weight kg (lbs.)
DC Input Drive,
Enclosure &
Packaging
Weight kg (lbs.)
400/480V AC
(540/650V DC) 261 143 (315) 205 (452) 109 (240) 171 (377)
400/480V AC
(540/650V DC) 300 151 (333) 213 (470) 117 (258) 179 (395)
600/690V AC
(810/932V DC) 170 143 (315) 205 (452) 109 (240) 171 (377)
600/690V AC
(810/932V DC) 208 143 (315) 205 (452) 109 (240) 171 (377)
