Frame 9 Installation

6-5

Power Wiring

Table 6.A Frame 9 Power Terminal Specifications

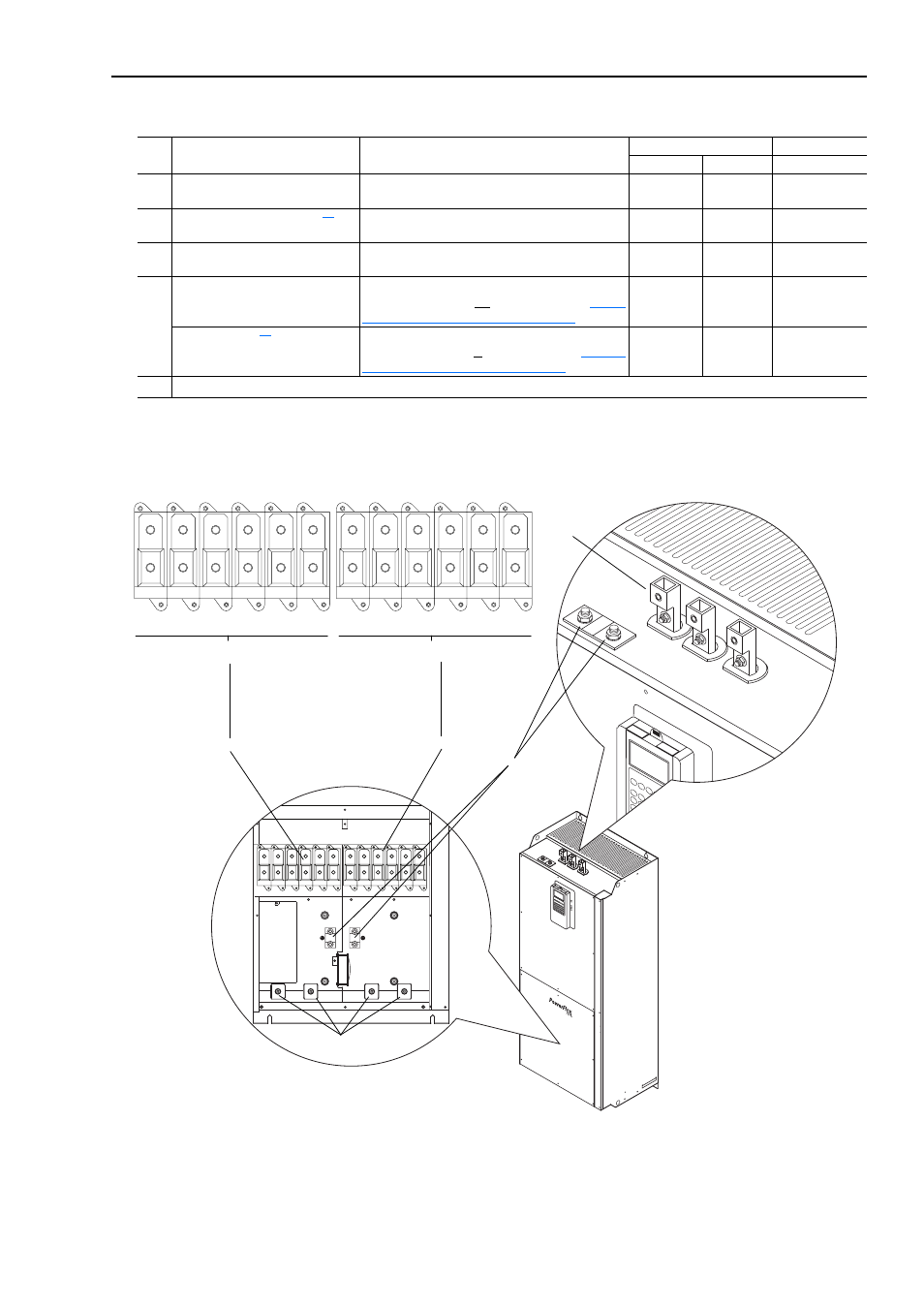

Figure 6.2 Terminal Locations and Power Terminal Block

No.

Name

Description

Wire Size Range

(1)

Torque

Maximum

Minimum

Recommended

Input Power Terminal Block

(2)

L1, L2, L3

Input power

185.0 mm

2

(350 MCM)

95.0 mm

2

(4/0 AWG)

40 N•m
(354 lb•in)

Output Power Terminal Block

(2)

U/T1, V/T2, W/T3

Motor connections

185.0 mm

2

(350 MCM)

95.0 mm

2

(4/0 AWG)

40 N•m
(354 lb•in)

SHLD Terminal, PE, Motor Ground Terminating point for wiring shields

95.0 mm

2

(4/0 AWG)

5.0 mm2
(10 AWG)

22 N•m
(195 lb•in)

DC Bus

(3)

(2 Terminals; DC–, DC+)

DC input or external brake resistor
(Internal Brake option not provided - Refer to

Frame

9 DC Bus/Brake Connections on page 6-6

.)

185.0 mm

2

(350 MCM)

95.0 mm

2

(4/0 AWG)

40 N•m
(354 lb•in)

DC Bus w/Brake

(3)

(3 Terminals; DC–, DC+/R+, R–)

DC input/internal brake
(Internal Brake option is provided - Refer to

Frame 9

DC Bus/Brake Connections on page 6-6

.)

185.0 mm

2

(350 MCM)

95.0 mm

2

(4/0 AWG)

40 N•m
(354 lb•in)

Cable Clamp for Shield

(1)

Maximum/minimum sizes that the terminal block will accept - these are not recommendations.

(2)

Do Not exceed maximum wire size. Parallel connections may be required.

(3)

DC terminal and brake lugs can be removed.

DC

DC

+/R

+

R–

DC –

DC+/R+

R–

L1

AC Line Input Power

To Motor Leads

L2

L3

L1

L2

L3

U/T1 V/T2 W/T3 U/T1 V/T2 W/T3

DC-, DC+/R+, R-
terminals shown with
protective cover removed.
