7-6

Frame 10 Installation

Removing the Protective
Covers

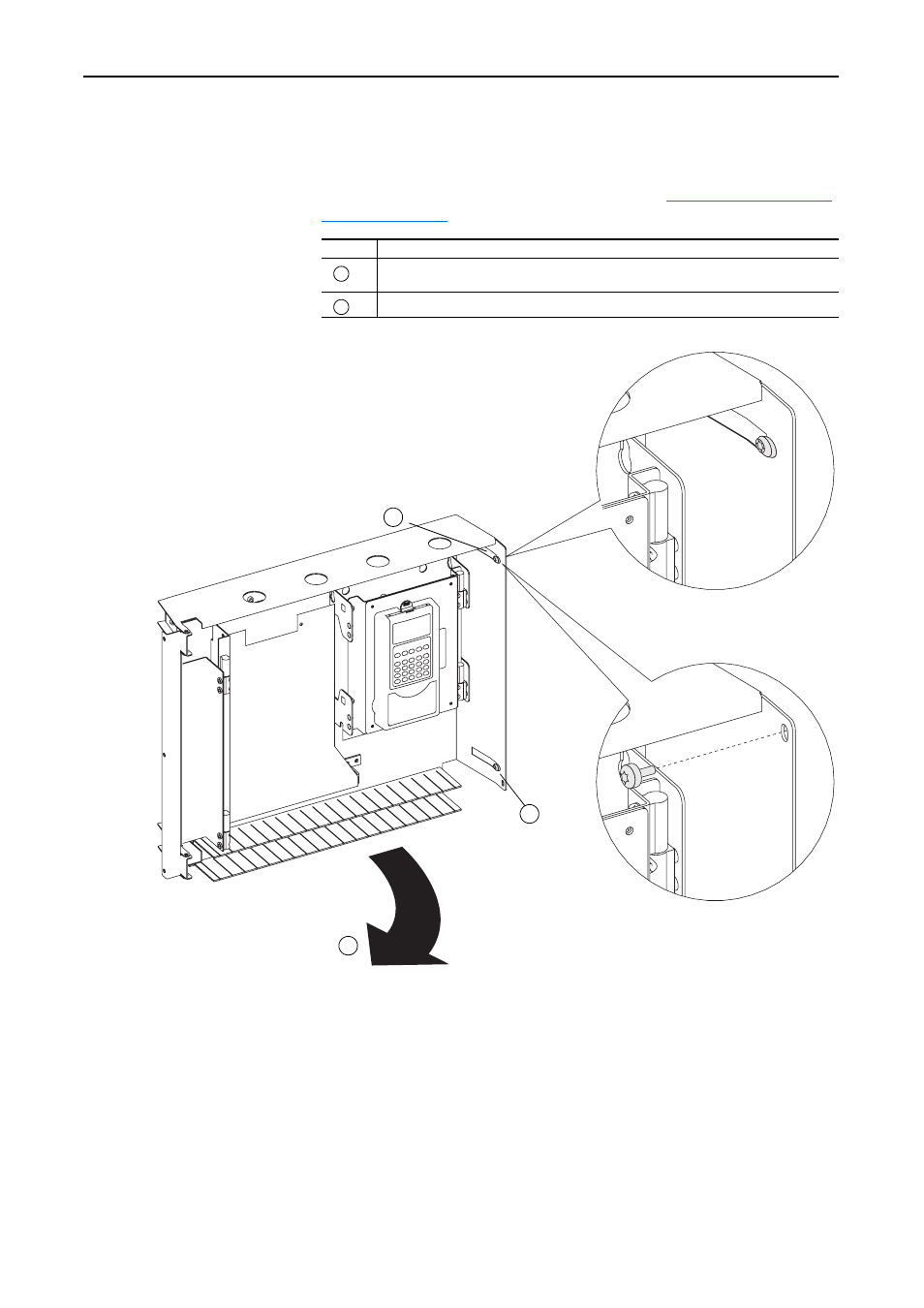

Moving the Control Frame

To gain access to the power wiring terminals, airflow plate and protective
covers you may need to move the Control Frame out of the way. If you do
not need to move the control frame, continue with

"Removing the Airflow

Plate" on page 7-7

.

Task

Description
Loosen the T8 Torx-head screws that secure the Control Frame to the drive enclosure
(Remove screws on early frame 10 drives).
Swing the Control Frame out and away from the power structure.

A

B

A

B

A

Frame 10 drives, from early production runs, have

holes instead of slots for these screws. You must

completely remove the screws from these drives in

order to swing-open the control frame.

or
