Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 158
11-12
Frame 14 Installation

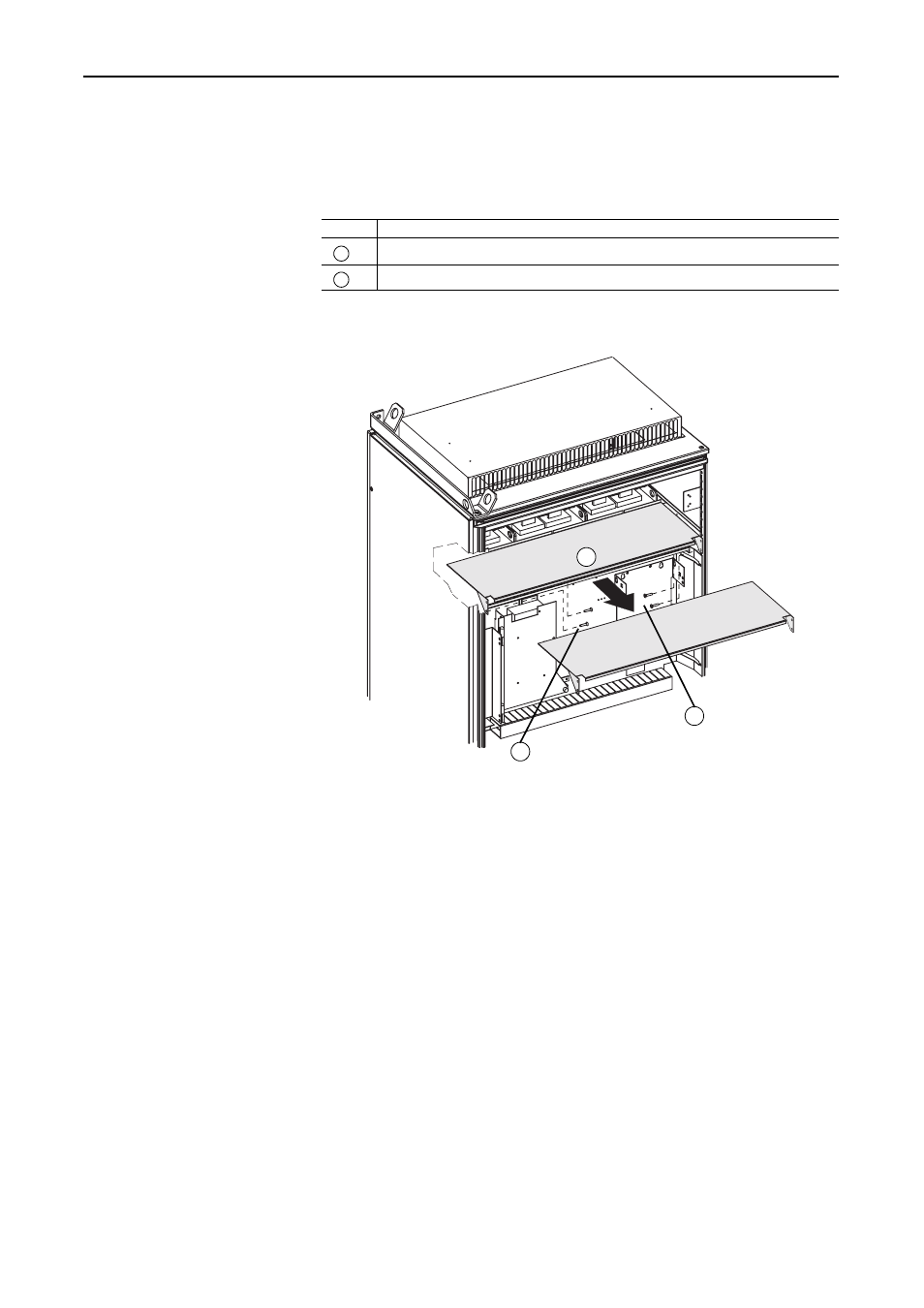

Removing the Airflow Plate(s)
The drive is equipped with a plate(s), just above the Converter unit(s), that
directs airflow through the drive enclosure(s). You must remove this plate(s)
in order to access the protective covers.
Task
Description
Remove the T8 Torx-head screws that secure the airflow plate to the drive.
Slide the airflow plate off of the drive.
A
B
A
B
A
1500A Drive Shown
