Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 208
B-12
Lifting and Mounting Instructions
3. Drives installed in a NEMA/UL Type 12 IP54 enclosure (PowerFlex
700H Control only) are shipped with the roof assembly installed at a
reduced height for shipping purposes. The roof assembly must be
installed at its full height before starting the drive. Follow the steps
below to install the roof assembly.
Note: The NEMA/UL Type 12 IP54 enclosure roof assembly is provided
with the required filters installed.
Task
Description

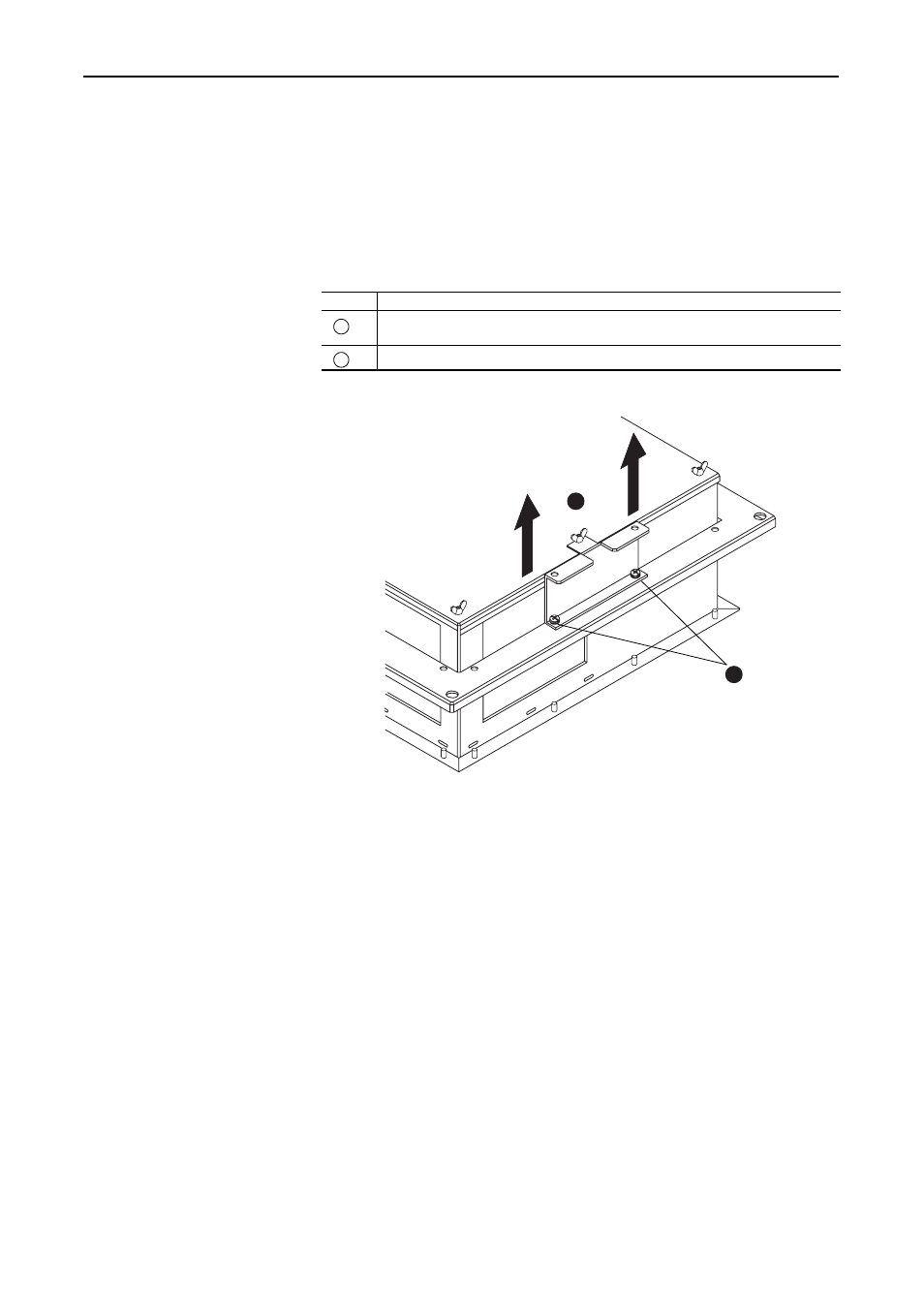

Remove the two sheet metal screws that secure each of the two roof assembly handles to
the roof panel.
Lift the roof assembly into place, using the handles provided.
A
B
A
B
One roof assembly handle
shown for clarity only.
