Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 212
B-16
Lifting and Mounting Instructions

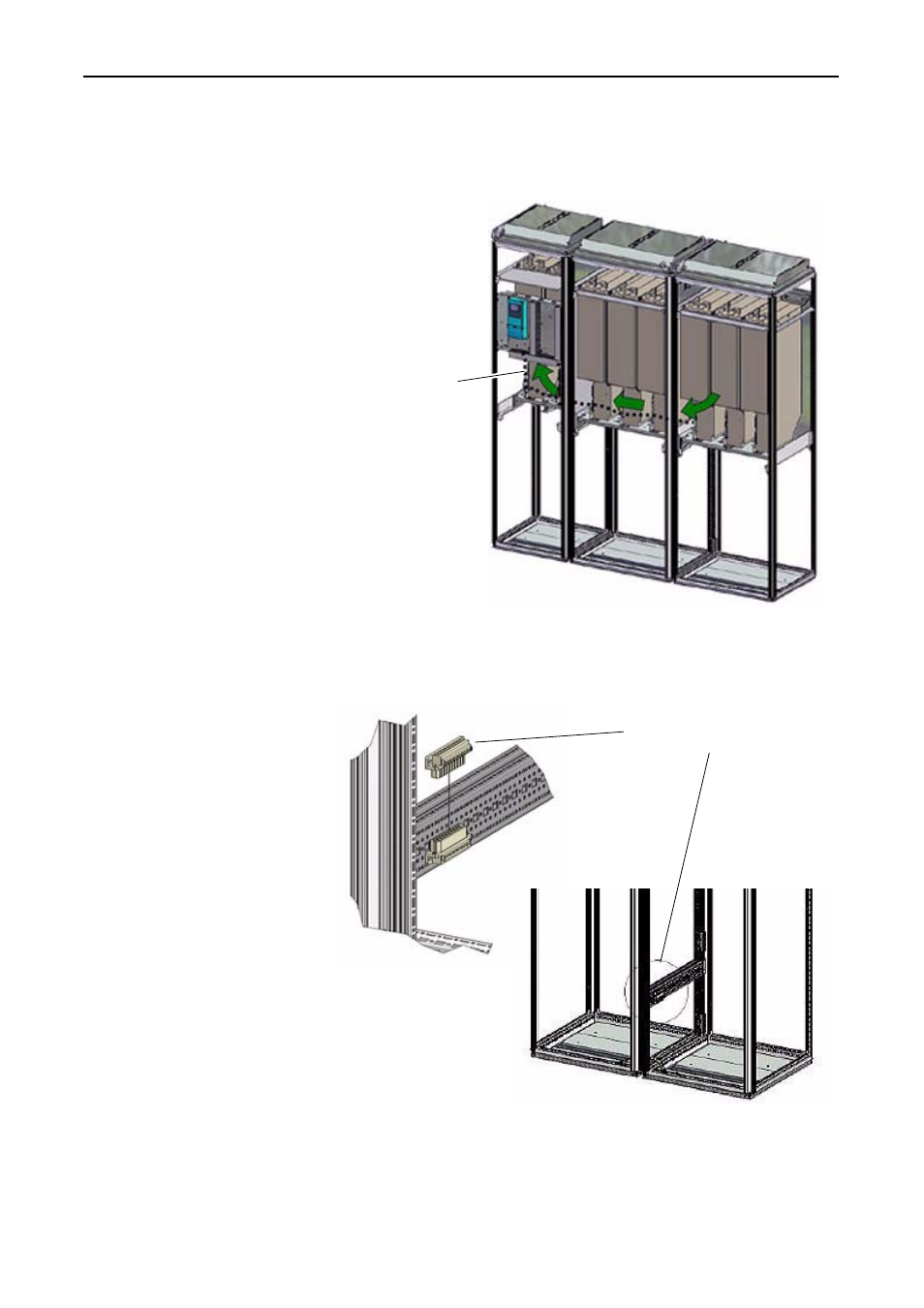

3. Route the fiber optic cables from the Power Structure (right-hand
enclosure) to control pan and connect the cables to the 700S Fiber Optic
Interface board on the back of the control plate or the 700H Star Coupler
board on the back of the control frame.
4. For frame 14 drives rated above 1500 Amps, route the circuit breaker
control cables and terminal plug from the right-hand enclosure and
connect it to the terminal block on the enclosure frame.
Route Fiber Optic
Cable Bundle.
Connect circuit breaker connections
terminal plug into the terminal block
