B-4 Lifting and Mounting Instructions

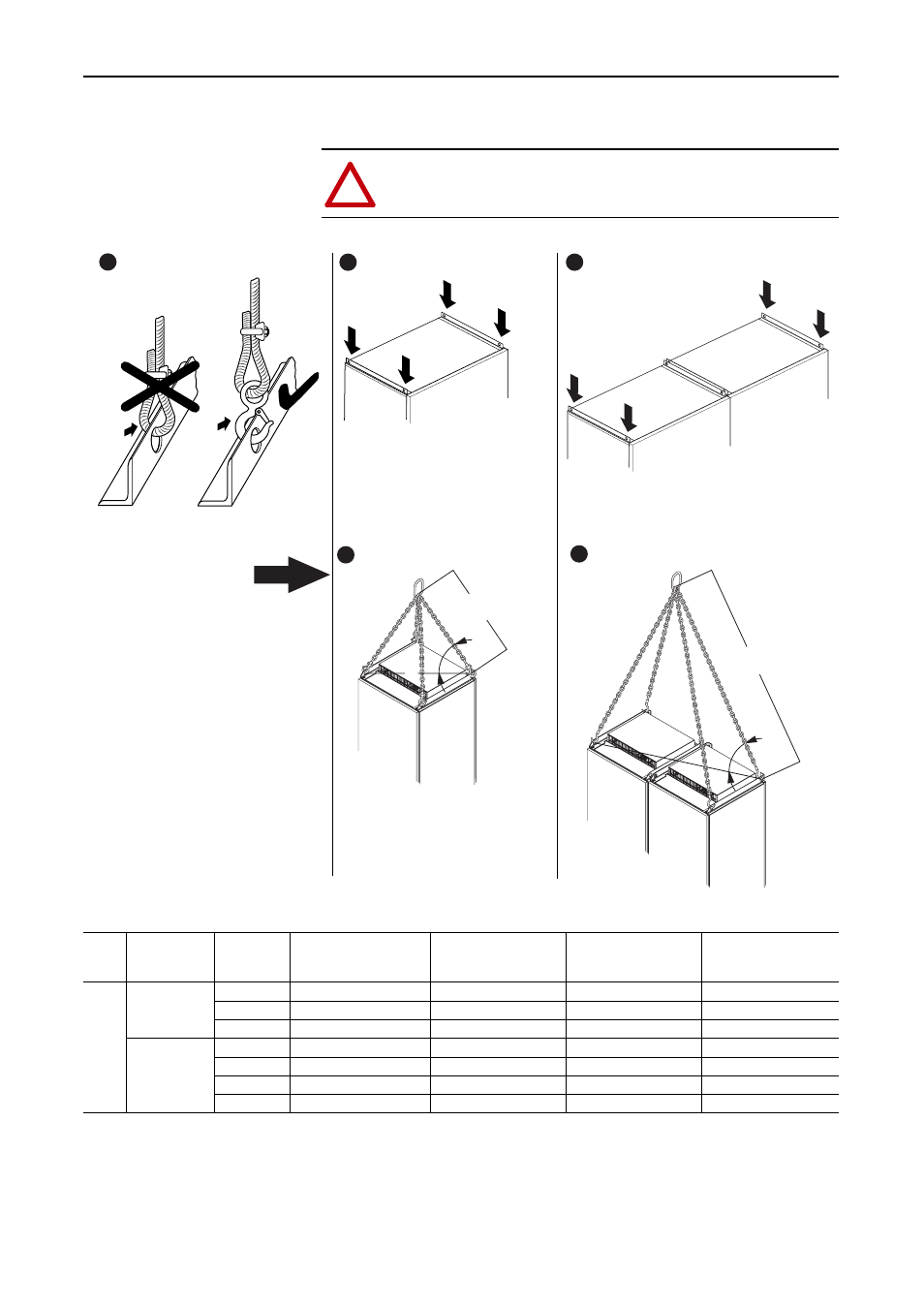

Directions for Lifting Drives in Rittal Enclosures (Codes “A” and “H”)
Table B.B Frame 10 - 13 Approximate Drive and Enclosure Weights
!
ATTENTION: Always use slings with load rated safety hooks
or shackles.
B A
A
Min. 60°
B > A
Min. 60°
B > A
A
C
Frame 10, 11, 13 and 14 Size Drives Frame 12, 13 and 14 Size Drives
C
All Size Drives B
TIP: To ensure that
the angle between the
roof of the enclosure
and the chain or cable
is greater than 60°,
make the length of the
chain or cable
between the center
lifting point and the
corners (B) is longer
than the distance
between the opposite
corners (A).
Note: Lift each Frame 14 drive
enclosure section separately.
Frame 10, 11, 13 and 14 Size Drives Frame 12, 13 and 14 Size Drives
Frame
Size
Voltage Class
Drive Rating
Amps
AC Input Drive &
Enclosure Weight
kg (lbs.) AC Input Drive &
Packaging Weight
kg (lbs.) DC Input Drive &
Enclosure Weight
kg (lbs.) DC Input Drive &
Packaging Weight
kg (lbs.)
10 400/480V AC
(540/650V DC) 385 382 (842) 432 (952) 267 (589) 317 (699)
460 382 (842) 432 (952) 267 (589) 317 (699)
500 382 (842) 432 (952) 267 (589) 317 (699)
600/690V AC
(810/932V DC) 261 320 (705) 370 (816) 267 (589) 317 (699)
325 351 (774) 401 (884) 267 (589) 317 (699)
385 351 (774) 401 (884) 267 (589) 317 (699)
416 351 (774) 401 (884) 267 (589) 317 (699)
