Page 71: Communication module locations -1
Chapter
5
Communication Options
Communication Module
Locations

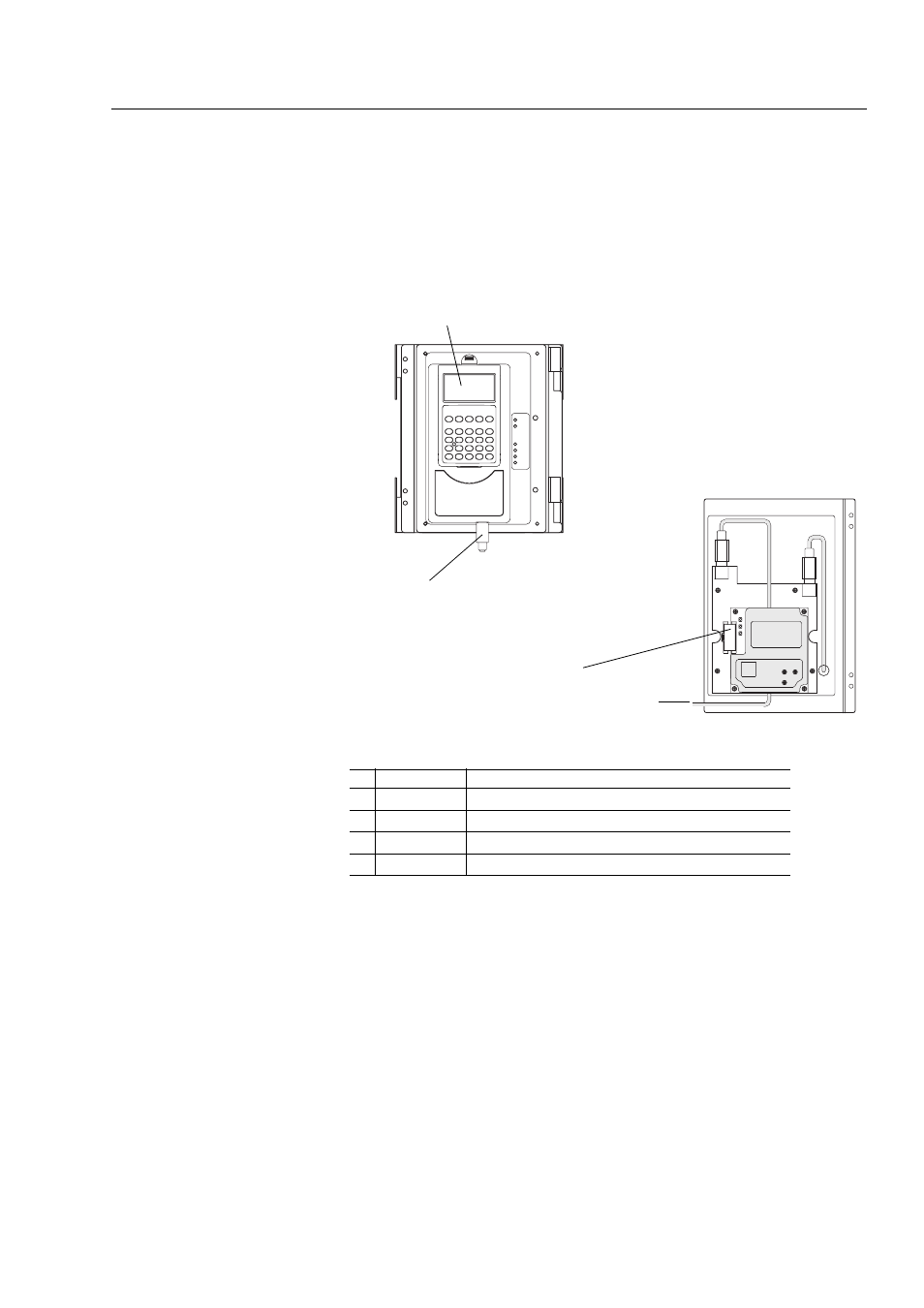

Figure 5.1 DPI Port Locations
Note:
DPI Port 4 is not available.
No. Connector
Description
➊
DPI Port 1
HIM connection when installed in the drive.
➋
DPI Port 2
Cable connection for handheld and remote options.
➌
DPI Port 3 or 2
Splitter cable connected to DPI Port 2 provides additional port.
➍
DPI Port 5
Cable connection for communications adapter.
X1
X2
The HIM panel opens to allow
access to the DPI interface. To
open panel, remove screws on
left side of HIM panel and swing
open.
➊
➍
➋➌
Back View
To Drive Control (Main Control
board on 700S , DPI Interface
board on 700H)
