Frame 13 Installation
10-9
Insulate Terminal X4 on the Rectifier Circuit Board
Follow the lettered steps below to insulate terminal X4 on the Rectifier
circuit board for each converter unit (refer to
for Rectifier board
location):
Important: Do not install the screw and washer that was removed from this
connection.
Task
Description

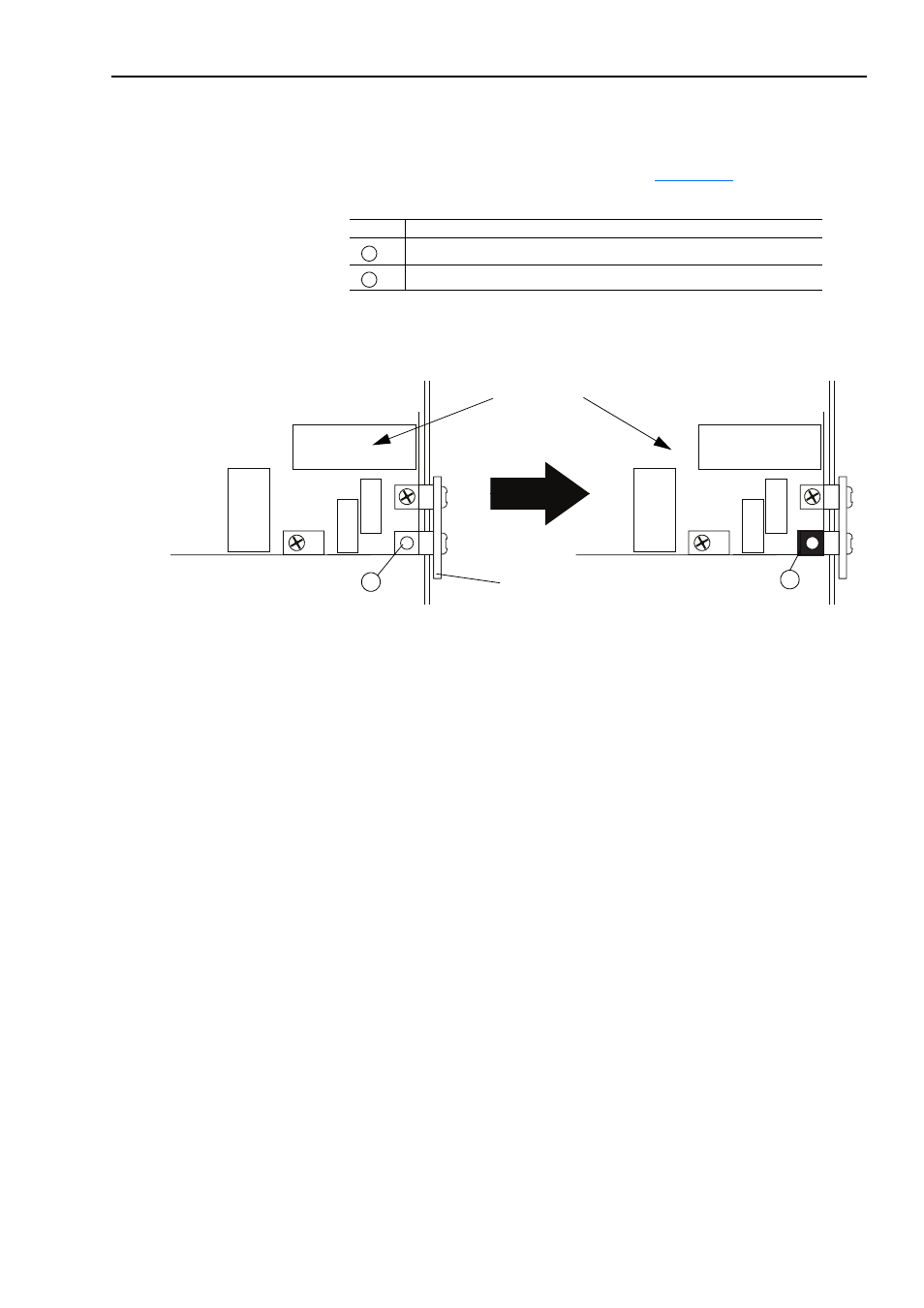

Remove the screw from the X4 connection on the Rectifier circuit board.
Insulate the top and bottom of the X4 connection on the Rectifier circuit board.
A
B
X1
X4
X41
X1
X4
X41
Rectifying Circuit
Board
Jumper
Side View of
Rectifying Structure
A
B
