Control Wiring for PowerFlex 700S Drives with Phase I Control

3-7

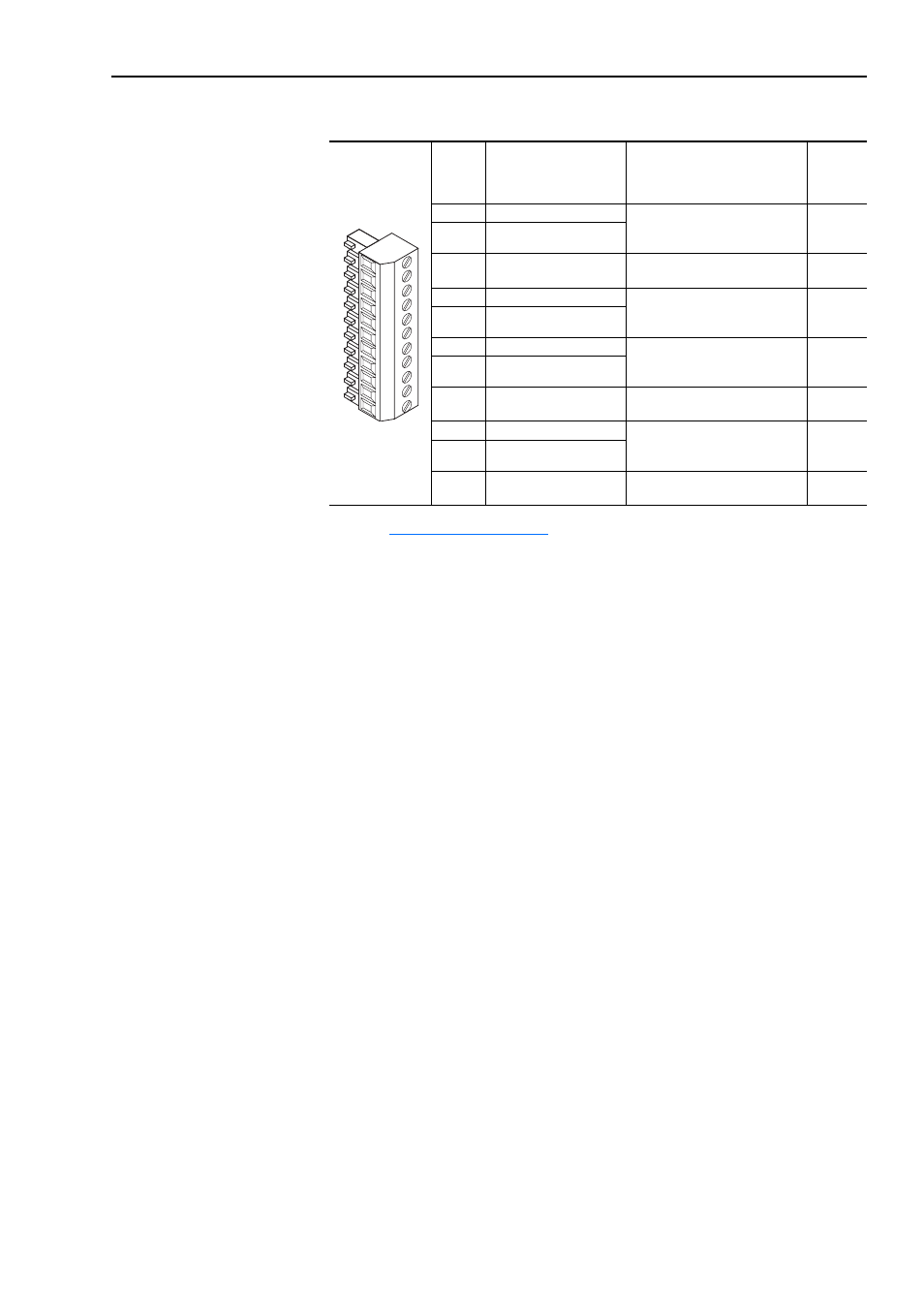

Table 3.E TB1 - Row B (Bottom) Terminals

Terminal Signal

Description

Related

Pa

ra

m

et

er

B11

Analog Input 1 (-)

+/-10.0V dc or +/-1.0V dc bipolar,
differential input.

(1)

13 bit + sign,

20k ohm input impedance.

800, 802,
803, 804,
805

B10

Analog Input 1 (+)

B9

Analog Input Shield

Optional connection point for
analog input shield.

(2)

B8

Analog Input 2 (-)

+/-10.0V dc or +/-1.0V dc bipolar,
differential input.

(1)

13 bit + sign,

20k ohm input impedance.

806, 808,
809, 810,
811

B7

Analog Input 2 (+)

B6

Analog Output 1 (+)

+/-10.0V dc bipolar, differential
output, 11 bit + sign, 2k ohm
minimum load.

812, 814,
815, 817,
818

B5

Analog Output 1 Return (-)

B4

Analog Output Shield

Optional connection point for
analog output shield.

(2)

B3

Analog Output 2 (+)

+/-10.0V dc bipolar, differential
output, 11 bit + sign, 2k ohm
minimum load.

813, 819,
820, 822,
823,

B2

Analog Output 2 Return (-)

B1

Analog Output Shield

Optional connection point for
analog shields.

(1)

Refer to

Analog Input Settings on page 3-17

for necessary dip switch settings.

(2)

Analog shields should connect to common at the signal source, if possible. Shields for signals from ungrounded
devices, such as analog tachometers, should connect to an analog shield terminal point at the drive.
