2-6

PowerFlex

®

700H Control Wiring

Analog I/O Configuration

Important: Analog I/O must be configured through programming, as well

as the jumpers shown below. Refer to publication
20C-PM001…, PowerFlex 700H Adjustable Frequency AC
Drive - Programming Manual.

Refer to

Figure 2.2 on page 2-3

for the location of the jumpers indicated in

the table below.

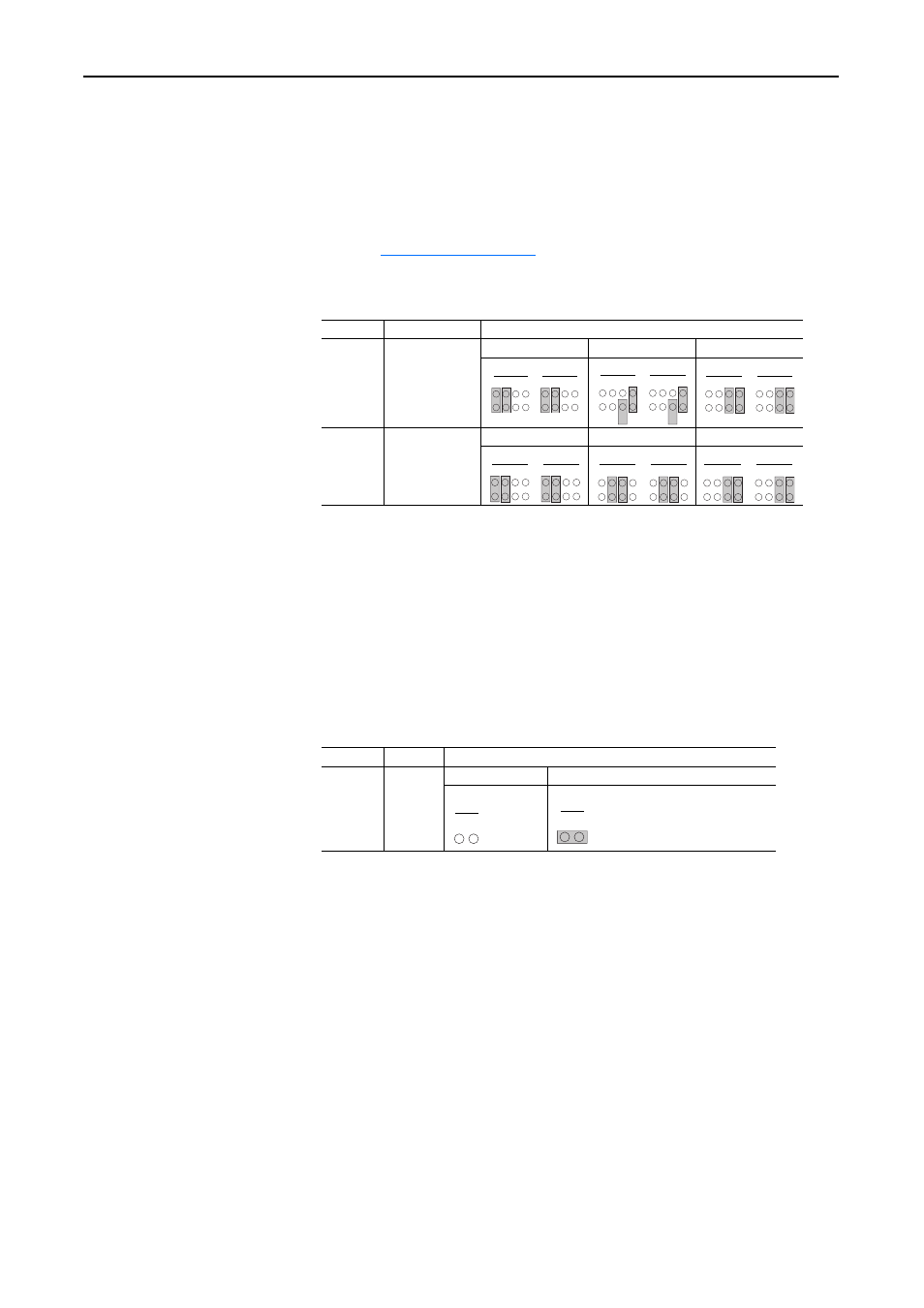

Table 2.E I/O Configuration

Hardware Enable Circuitry

By default, the user can program a digital input as an Enable input. The
status of this input is interpreted by drive software. If the application
requires the drive to be disabled without software interpretation, a
“dedicated” hardware enable configuration can be utilized. This is done by
removing jumper J5 and wiring the enable input to “Digital In 6” (see
below). Verify that parameter 366 [Digital In6 Sel] is set to “1 - Enable”.

Table 2.F Hardware Enable Configuration

Auxiliary Power Supply

You may use an auxiliary power supply to keep the 700H Control Unit
energized, when input power is de-energized. This provides back-up power
for the Control Unit and is sufficient for setting parameters. Connect 24V dc
power to pin 19 and 24V dc common to pin 20 of the 24V dc version of the
I/O card.

Signal

Jumper

Setting

Analog
Inputs

J1 (Analog In 1)
J2 (Analog In 2)

0-20 mA

0-10V

±

10V

Analog
Outputs

J3 (Analog Out 1)
J4 (Analog Out 2)

0-20 mA

0-10V

±

10V

Signal

Jumper

Setting

Hardware
Enable

J5

Hardware Enable

Input Programmable (No Hardware Enable)

C D

B

A

J1

J2

C D

B

A

C D

B

A

J1

J2

C D

B

A

C D

B

A

J1

J2

C D

B

A

C D

B

A

J3

J4

C D

B

A

C D

B

A

J3

J4

C D

B

A

C D

B

A

J3

J4

C D

B

A

B

A

J5

B

A

J5
