4-4
Control Wiring for PowerFlex 700S Drives with Phase II Control

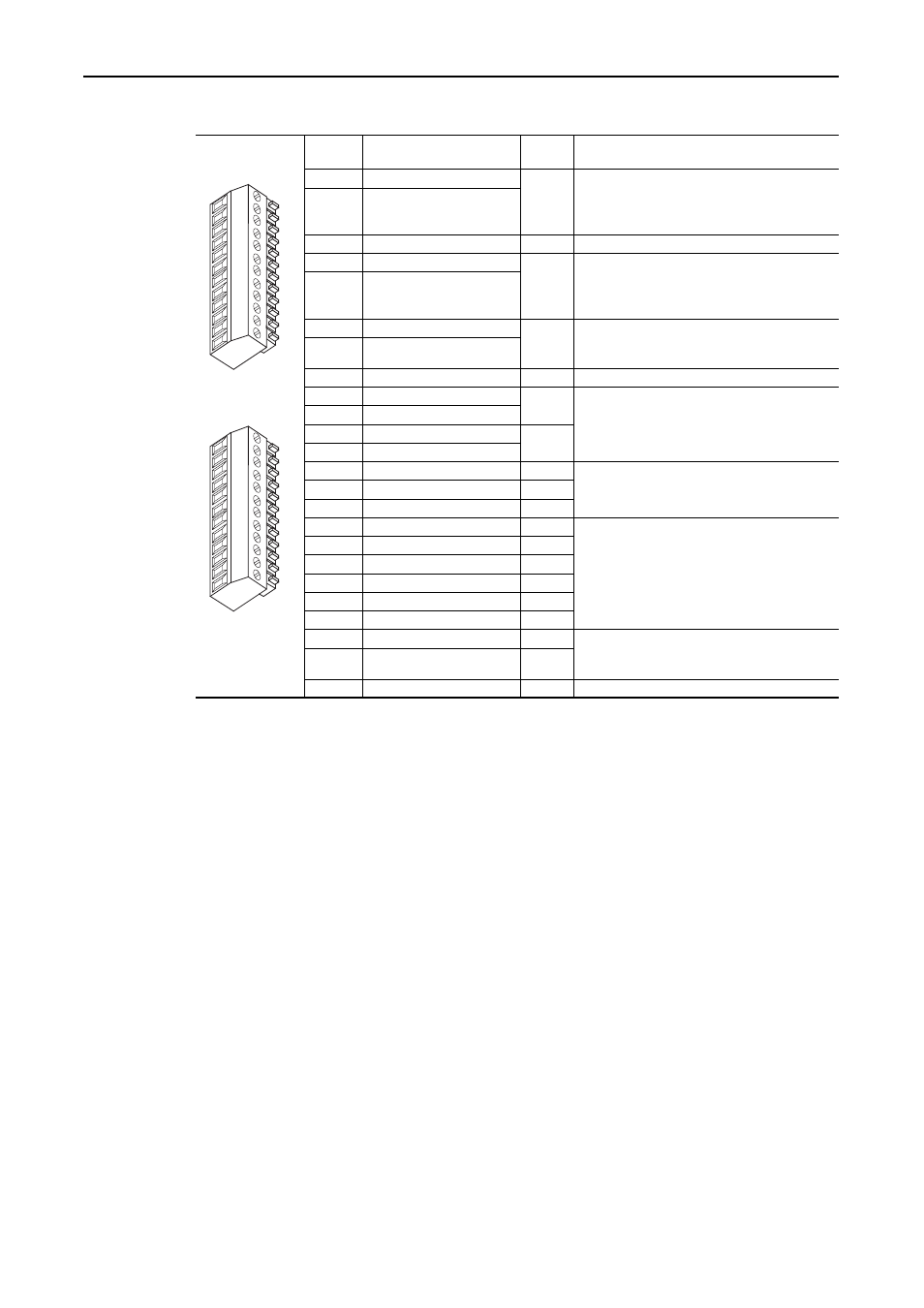

Table F TB1 Terminals
Terminal Signal
Factory
Default
Description
1
Analog Input 1 Comm.
(Volt)
Bipolar, differential input, +/-10V, 0-20 mA, 13 bit +
sign
20k Ohm impedance at Volt; 500 Ohm impedance
at mA
(1)
2
Analog Input 1 (+/-)
3
Shield
NA
Analog Input Shield
4
Analog Input 2 Comm.
(Volt)
Bipolar, differential input, +/-10V, 0-20 mA, 13 bit +
sign
20k Ohm impedance at Volt; 500 Ohm impedance
at mA
5
Analog Input 2 (+/-)
6
Analog Input 3 [NTC-] Comm. (Volt)
Differential input, 0-10V, 10 bit (for motor control
mode FVC2, this is the temperature adaptation
input).
7
Analog Input 3 [NTC+]
8
Shield
NA
Analog Output Shield
9
Analog Output 1 (-)
(Volt)
Bipolar, differential output, +/-10V, 0-20 mA, 11 bit
+ sign
2k Ohm minimum load
10
Analog Output 1 (+)
11
Analog Output 2 (-)
(Volt)
12
Analog Output 2 (+)
13
+10V Reference
NA
Rating: 20 mA maximum load (Recommend 5k
Ohm pot)
14
Reference Common
NA
15
-10V Reference
NA
16
Encoder A
NA
Normal current draw per channel: 20 mA
17
Encoder A (Not)
NA
18
Encoder B
NA
19
Encoder B (Not)
NA
20
Encoder Z
NA
21
Encoder Z (Not)
NA
22
Encoder Reference (+)
NA
12 or 5V DC power supply for primary encoder
interface
Rating: 300 mA maximum
23
Encoder Reference (-)
NA
24
Encoder Shield
NA
Connection point for encoder shield
(1)
The analog inputs are not isolated. However, the analog inputs can be connected in series when using current mode. Note that at 20mA the
voltage source must be capable of providing 10V dc at the drive terminals for one drive - - 20V dc is required for two drives and 30V dc is
required for three drives.
