Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 88
7-4
Frame 10 Installation

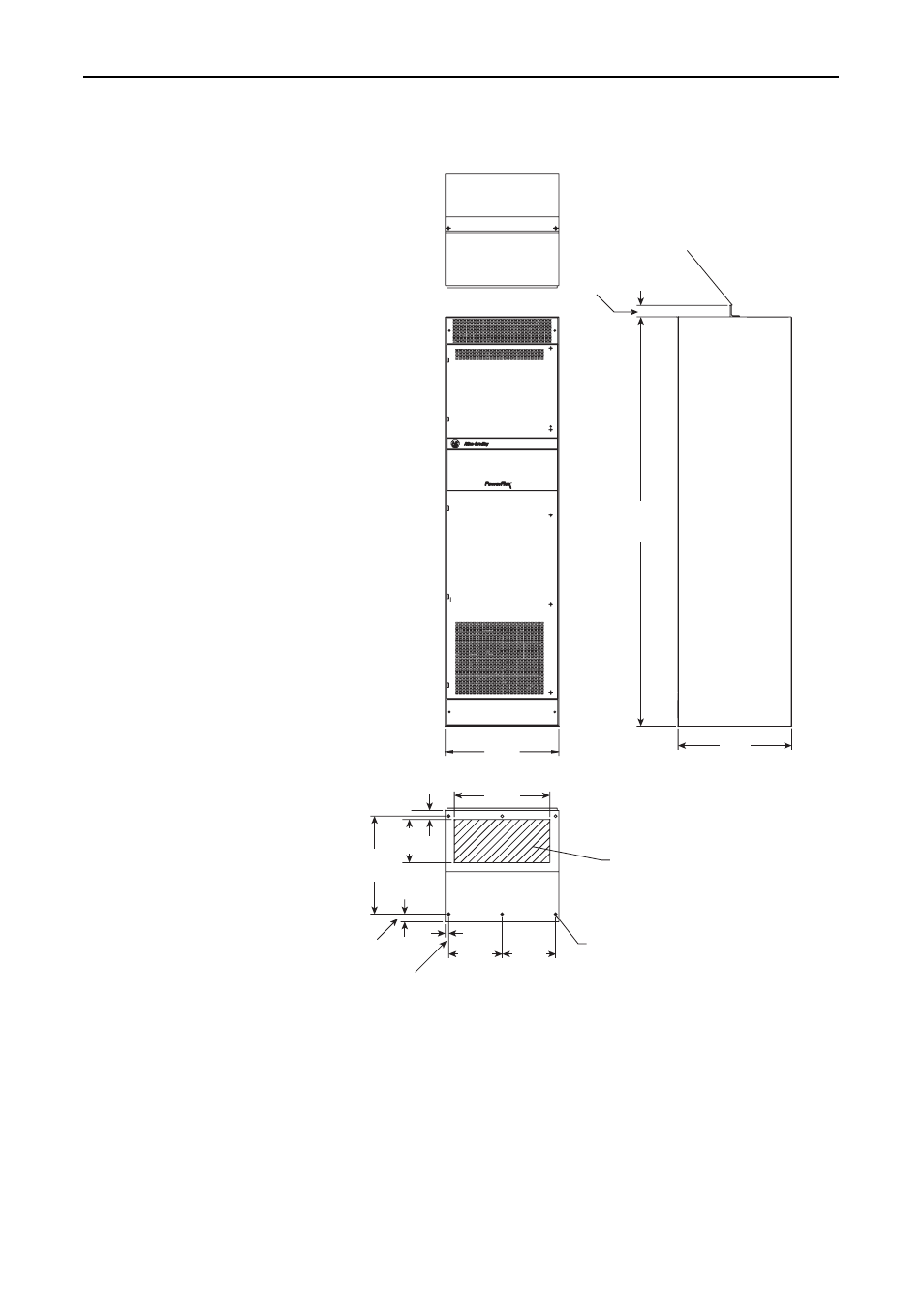

Figure 7.4 Enclosure Code B (NEMA/UL Type 1, IP20 MCC) and K (NEMA/UL Type 1,
IP20 MCC w/Conformal Coat)
0.625 Dia. - 6 Mounting Holes
Removeable Lifting Angle
Area available for conduit routing
635
(25.0)
2286
(90.0)
63.5
(2.5)
295.5
(11.75)
295.5
(11.75)
19.0
(0.75)
548.6
(21.6)
241.3
(9.5)
50.8
(2.0)
43.2
(1.7)
533.4
(21.0)
635
(25.0)
Powerful Performance, Flexible Control.
Dimensions are in millimeters and (inches).
