Rockwell Automation 20D PowerFlex 700H and 700S Frame 9-14 Drives Installation - A4 Size User Manual
Page 145
Frame 13 Installation
10-13
Output Power Wiring
Connect the motor to the output power terminals.
Important: Parallel wiring must have the same cable dimensions, type and
routing. Non-symmetrical wiring may cause unequal loading
between the converters and reduce the drive’s ability to deliver
current to the motor.

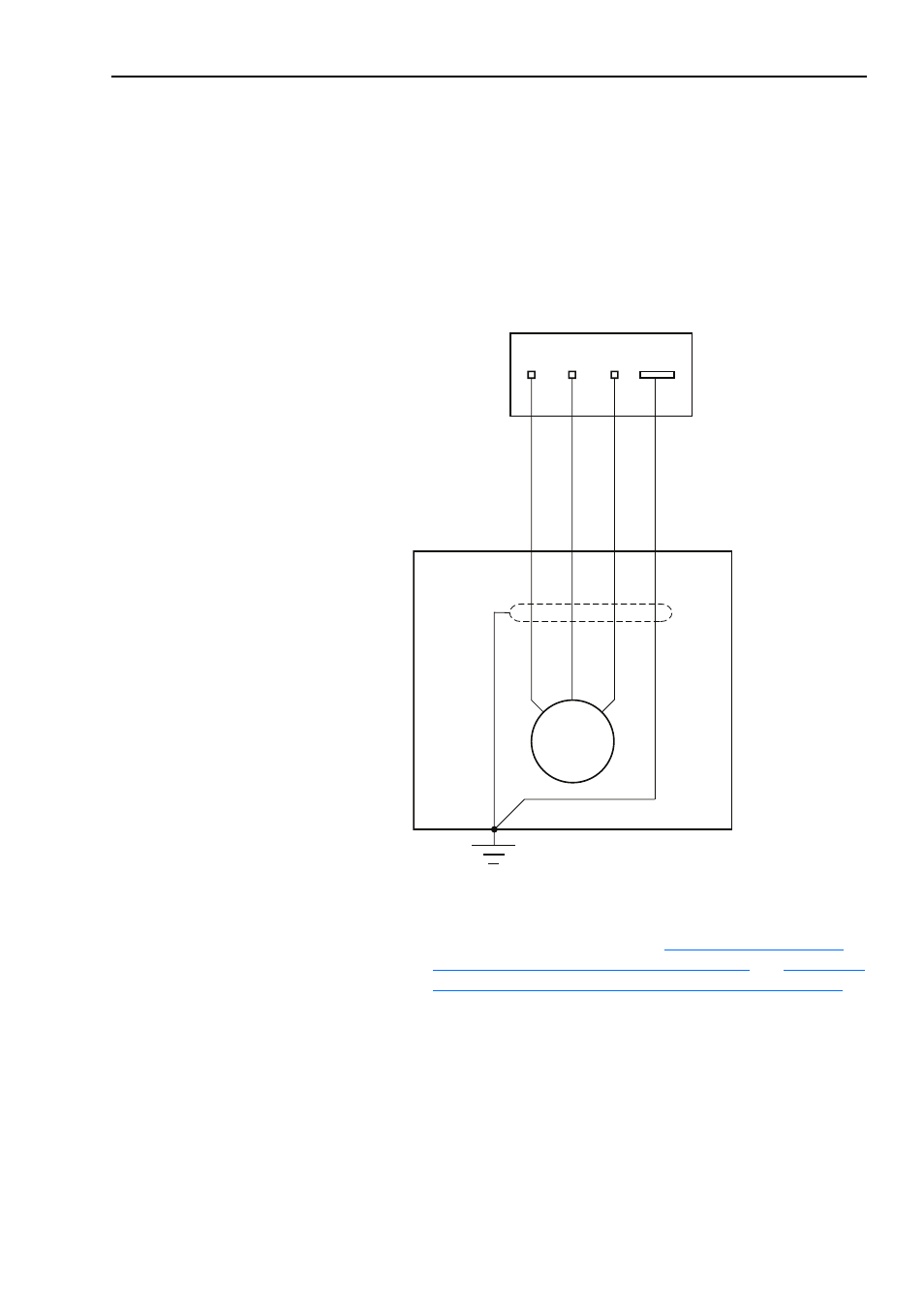

Figure 10.5 Frame 13 Motor Wiring Example
Important: Once power wiring has been completed, the protective covers
must be installed before energizing the drive. Installation is in
reverse order of removal (refer to
Covers from the Converter Unit" on page 10-6
and
the Protective Covers from the Inverter Unit" on page 10-10
U/T1
V/T2
W/T3
PE
Motor Frame
Motor
