Publication 2100-UM001B-EN-P – January 2001
Ladder Logic Programming—Including Reading Inputs 5-17

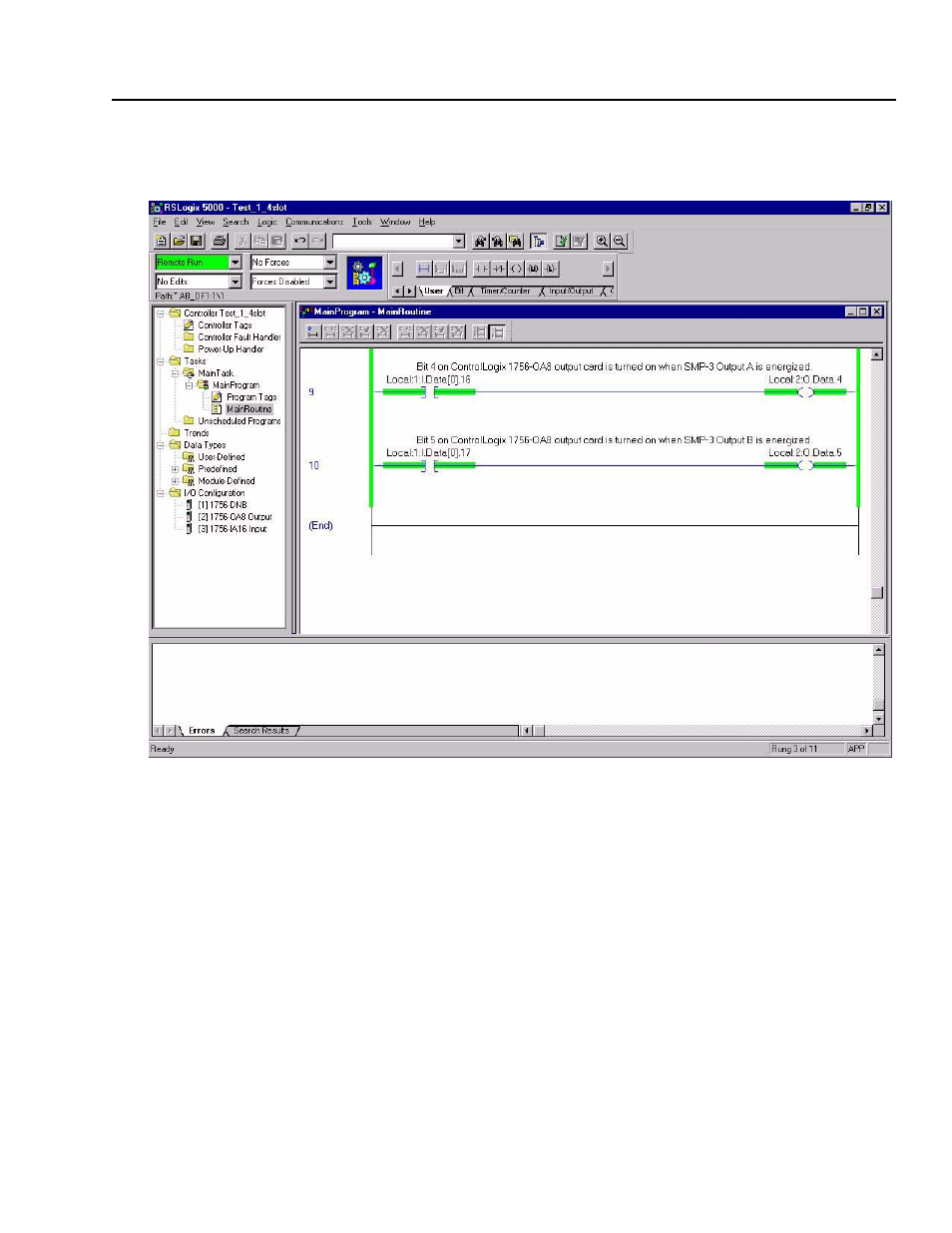

Rungs 9 and 10 show how SMP-3 Status Word information is read.
The Output card in slot 2 shows status at bits 4 and 5.
Figure 5.12
The next word after Status word is analog information from SMP-3.
Average Current, Current Imbalance, Thermal Capacity Utilized, and
Full Load Current Setting can be monitored. The parameter to be
monitored is selected by logic state of bits 13-15 in the Logix Control
Word.
