Publication 2100-UM001B-EN-P – January 2001
6-28 Using DeviceNet Explicit Messaging
8. The communication path must be entered here. In this example,
we enter DnetScanner1, 2, 4. DnetScanner1 is the name given to
the 1756-DNB module, 2 is the DeviceNet Port on that module,
and 4 is the node of the E3 we want to read from. Please adjust
your entries to properly match your hardware configuration.
9. Select OK to finish MSG configuration.
10. Accept and assemble the rungs of logic just entered, and then
look at the destination tag for the value being read.

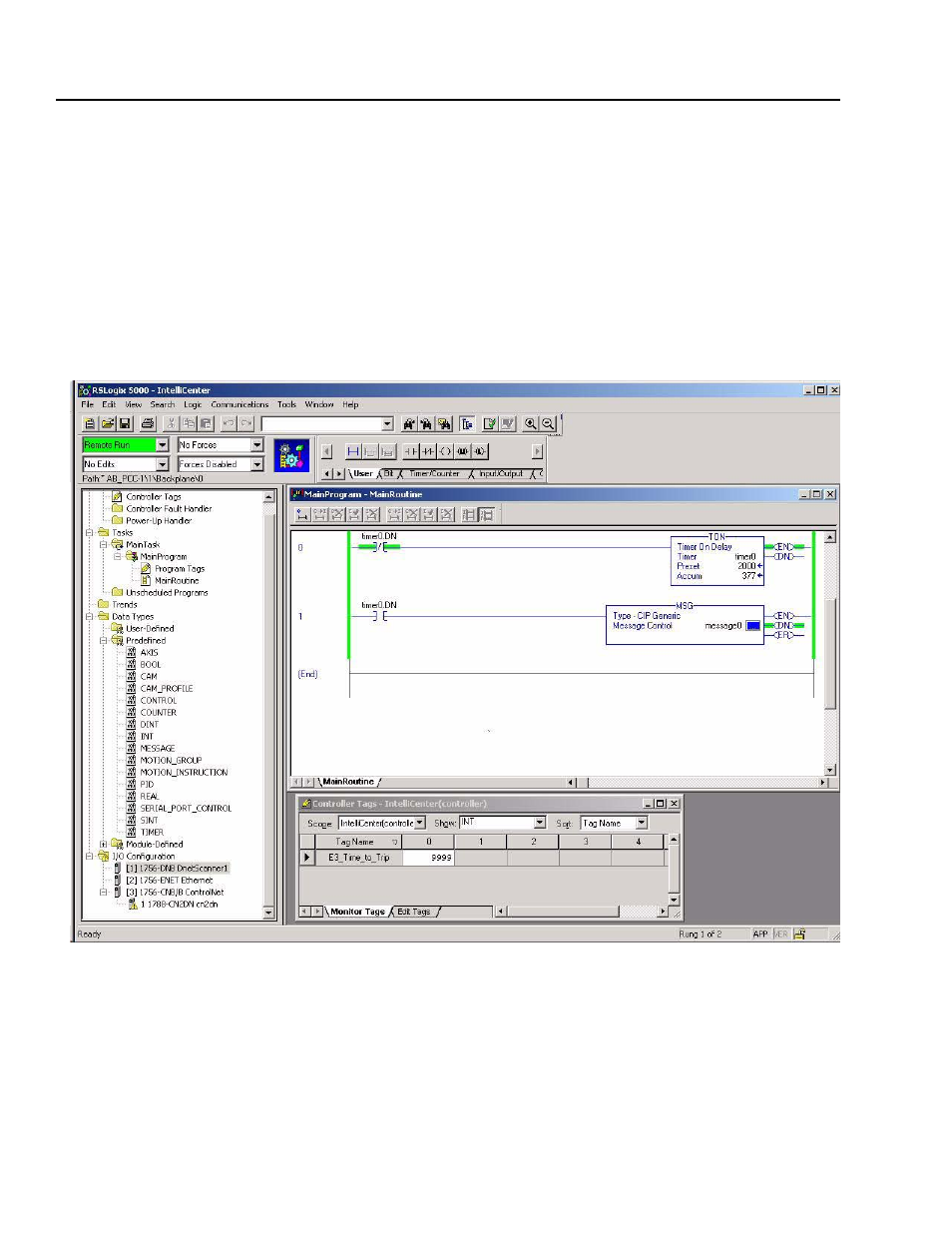

Figure 6.16
RSLogix 5000 Complete
