Publication 2100-UM001B-EN-P – January 2001
Configuring a Scanner to Communicate with the Adapter 4-3
3. In the Network menu, select Online, or click on the Online icon
as indicated in Figure 4.2.
4. The Browse Network screen appears, requesting specification of
which network you wish to go online with. Select the DeviceNet
network desired and click on OK.

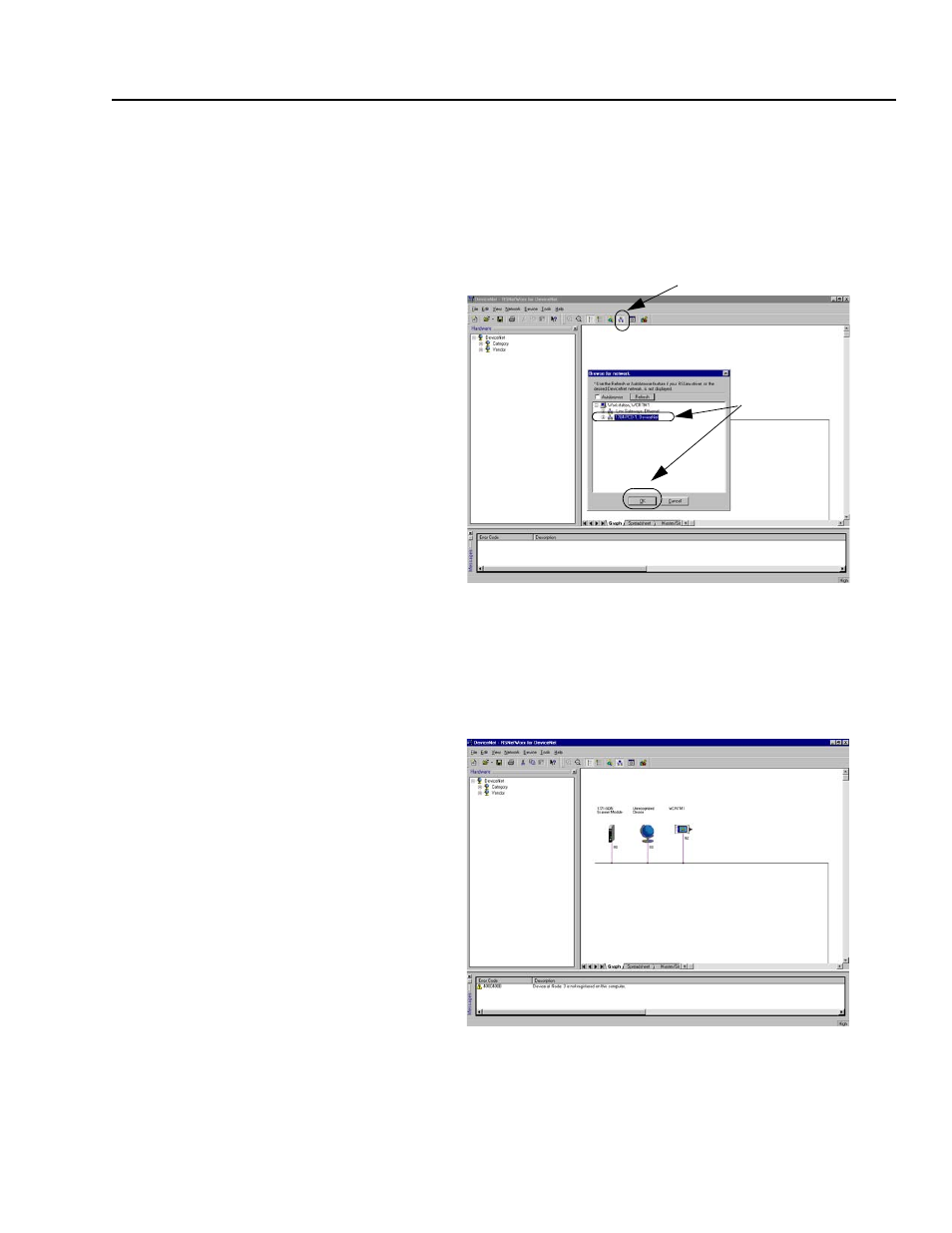

Figure 4.2
Online Screen
5. The network will be scanned and the screen will build the online
configuration as shown in Figure 4.3.
Figure 4.3
Online Graphical View
Important: In our example, our module is Node 3. It has a
Unrecognized Device icon, and the error code lists it as an
unregistered device, so we will need to download an EDS file for it.
Step # 3
Step # 4
