Publication 2100-UM001B-EN-P – January 2001
Overview 1-3

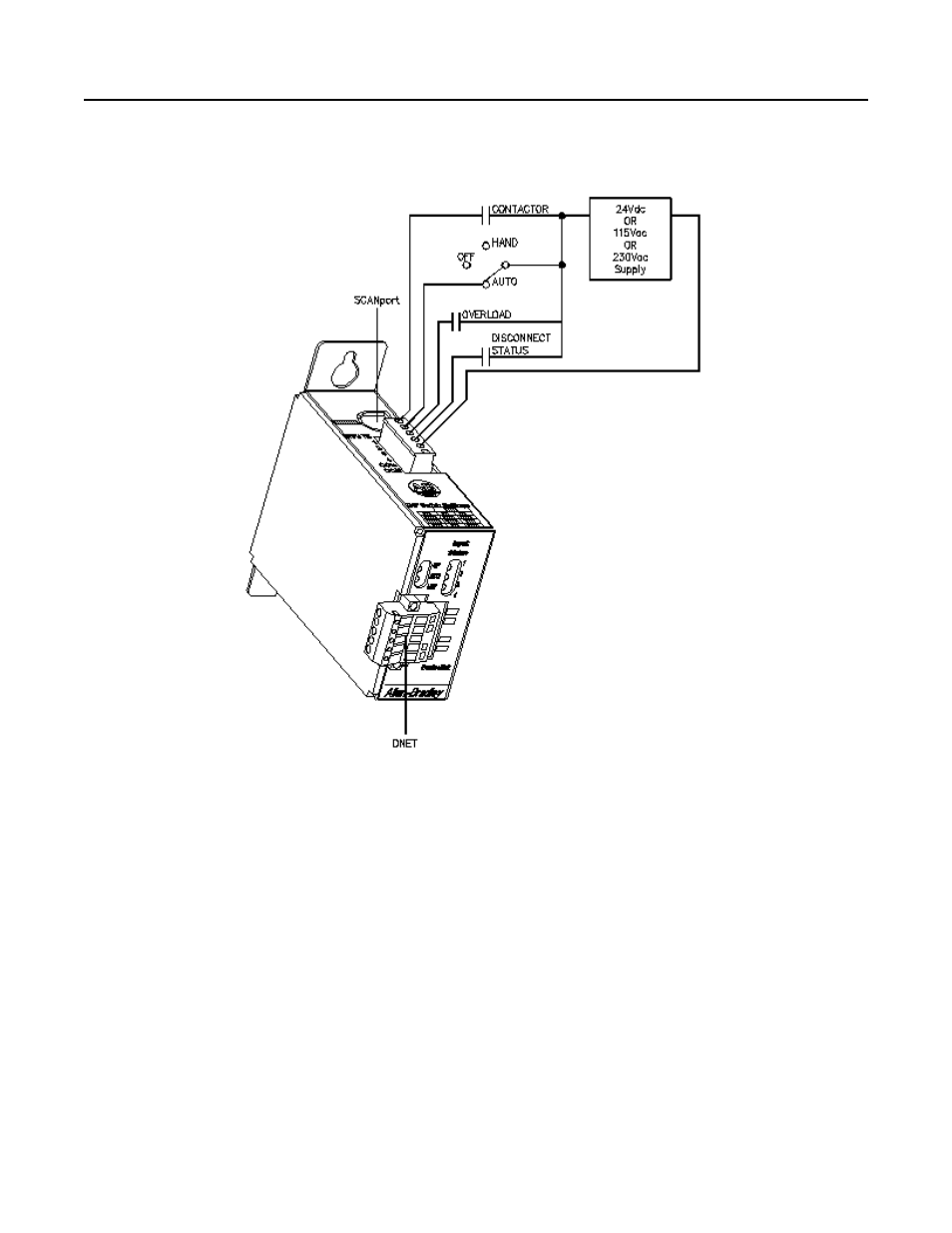

Figure 1.3
Example of 2100-GK61 Module Connecting Digital Inputs
In Figure 1.3, discrete wiring connects up to four (4) digital inputs to
the 2100-GK61 module. A DeviceNet cable connects the module to
the DeviceNet network and a SCANport cable connects a SCANport
product to the module. The contact status is then translated into a
DeviceNet message that can be used to control SCANport devices
attached to the module or other devices on the DeviceNet network.
Features of the Communication
Adapter The DeviceNet network is an open, global industry-standard
communication network designed to provide an interface through a
single cable from a programmable controller directly to “smart”
devices such as sensors, push buttons, motor starters, simple operator
interfaces, and drives.
The 2100-GK61 module lets you connect your SCANport products to
a DeviceNet network. This adapter features the following:
• Flash upgradeability allows for field updates in the event of
changes to the adapter’s firmware.
