Publication 2100-UM001B-EN-P – January 2001
Installation 2-7
3. Remove power from the network.
4. Insert the DeviceNet cable wires into the 10-pin connector. Make
sure you follow the color key next to the connector receptacle on
the module.

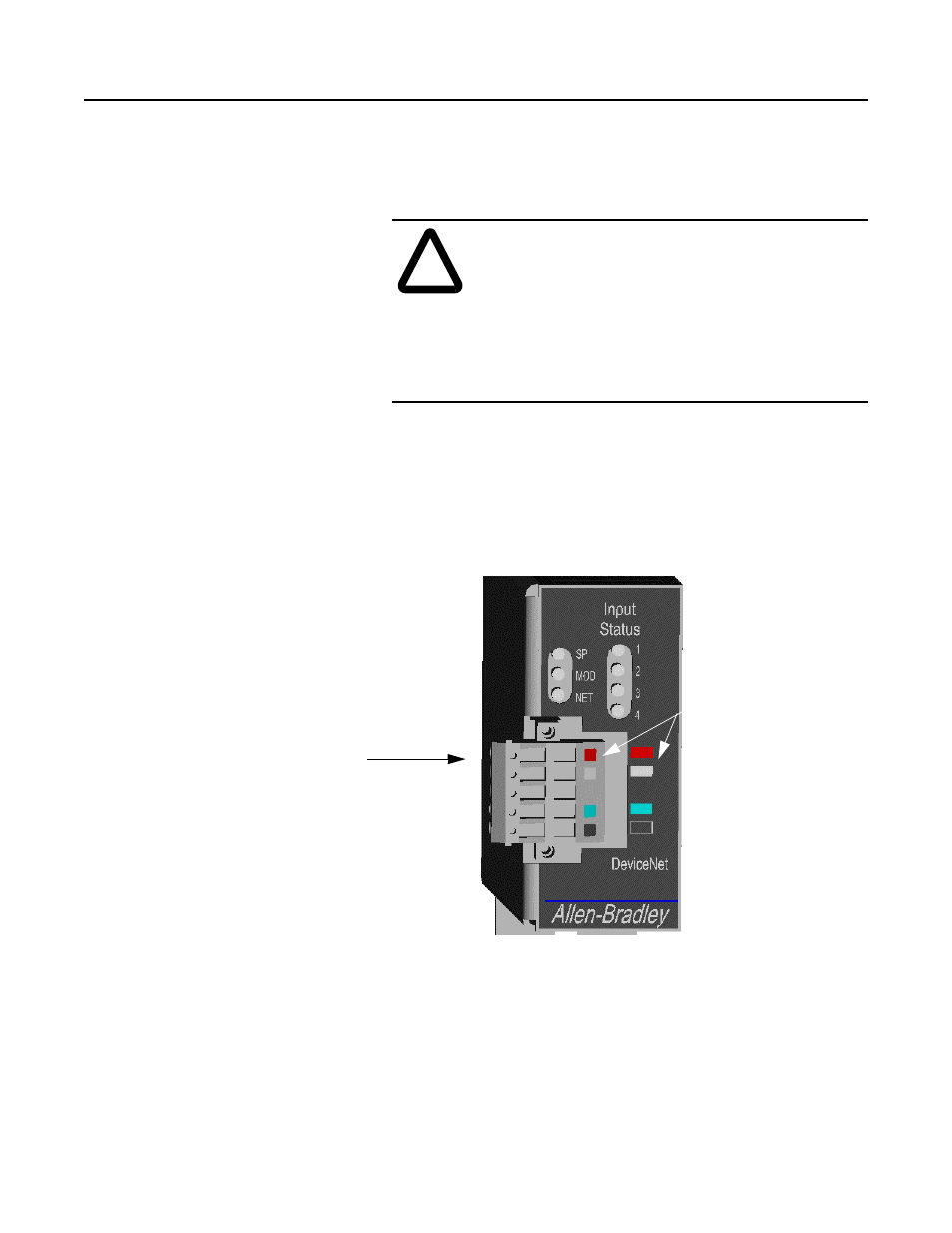

Figure 2.3
DeviceNet Connections
!
ATTENTION: If you wire the 10-pin header after
you’ve connected it to the module, static control
precautions are required. Device malfunction may occur
if you do not follow ESD control procedures. If you are
not familiar with static control procedures, refer to
Allen-Bradley Publication 8000-4.5.2, Guarding
Against Electrostatic Damage, or other applicable ESD
protection handbook.
Front View of 2100-GK61 Module
1 - Red - V+
2 - White-CAN_H
3 - Shield
4 - Blue-CAN_L
5 - Black- V-
Color Key
10-pin Dual Row
DeviceNet Connection
