Publication 2100-UM001B-EN-P – January 2001

4-6

Configuring a Scanner to Communicate with the Adapter

4. In the example below, a search is being performed for an EDS file

for a 1336 drive with 2100-GK61. The procedure involves (1)
selecting Smart MCC for the device type 2100-GK61, (2)
entering at least a portion of the catalog numbers, and (3) clicking
on Search.

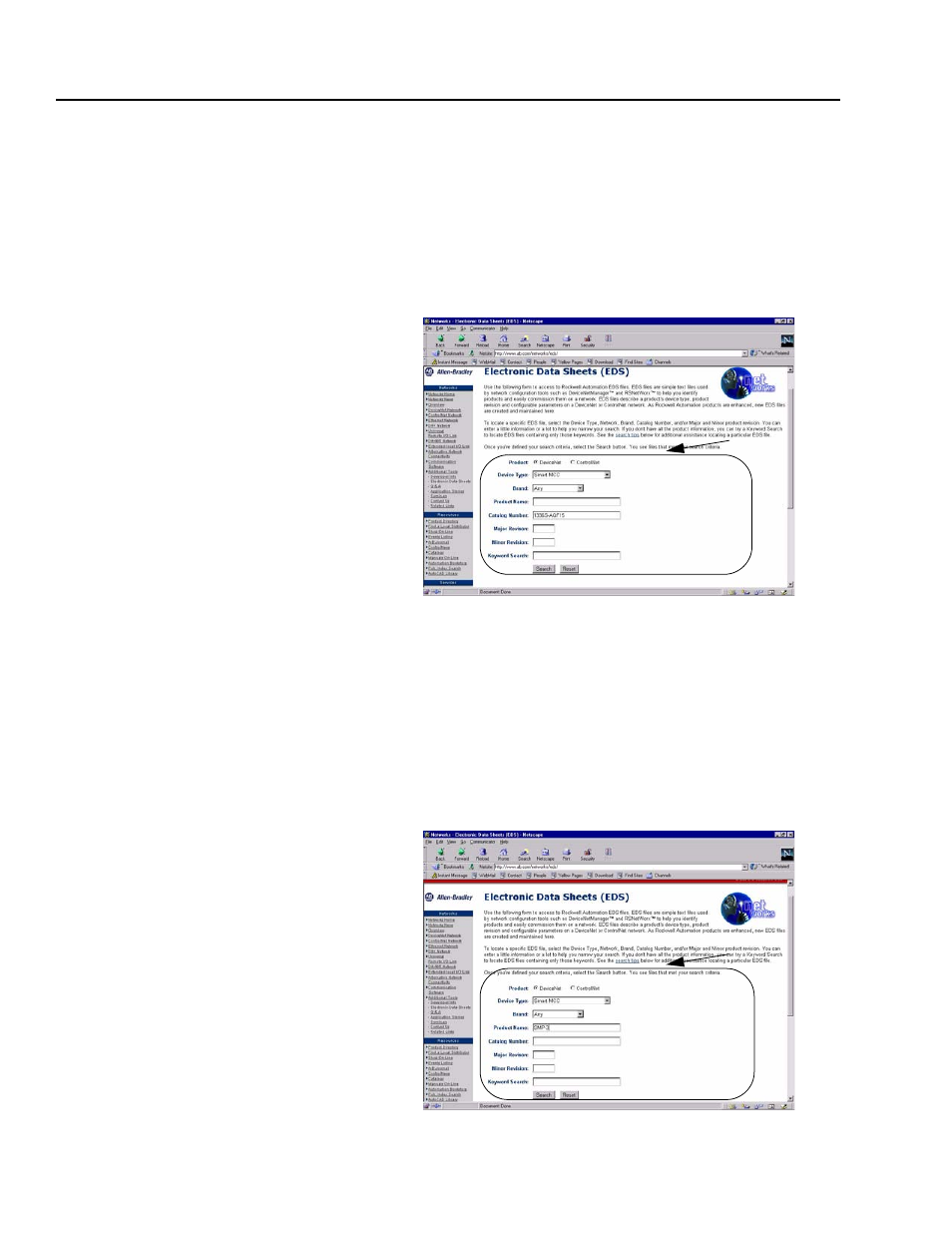

Figure 4.5
EDS Search for 1336 Drive with 2100-GK61

5. The next example displays an EDS search for an SMP-3 Solid-

State Overload Relay with 2100-GK61. The procedure involves
(1) selecting Smart MCC for the device type 2100-GK61, (2)
entering SMP-3 for the product name, and (3) clicking on
Search.

Figure 4.6
EDS Search for SMP-3 with 2100-GK61

Step #4

Step #5
