Publication 2100-UM001B-EN-P – January 2001

Ladder Logic Programming—Including Reading Inputs

5-9

In the following programming example, a PLC is used to read the
inputs of a 2100-GK61 and control the outputs of an SMP-3
electronic overload relay.

PLC Code: Rung 0 enables scanner; Rungs 1 and 2 are Block
Transfer Read & Write. SMP-3 Output A is turned OFF when I:001/0
in Rung 3 is momentarily turned ON. SMP-3 output B is turned OFF
when I:001/1 in Rung 4 is momentarily turned ON.

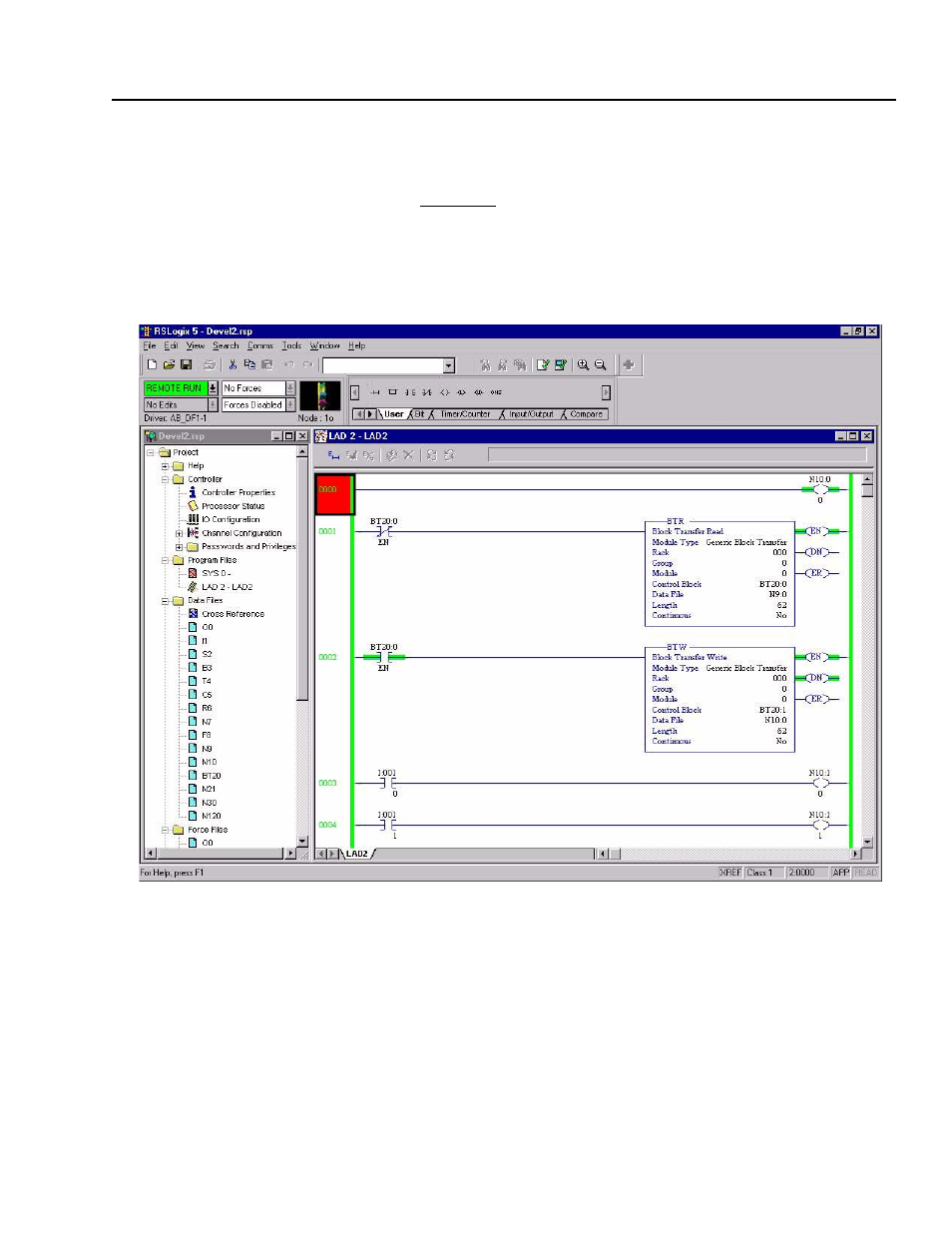

Figure 5.4
