Publication 2100-DU021B-EN-P - January 2004
5-18 Ladder Logic Programming—Including Reading Inputs
Rungs 5 through 8 also read 2100-GK61 inputs. In this case, however, control
information is being sent to an area of the Scanner where SMP-3 Command
Word is located. Commands pass through ScanPort to SMP-3, where Outputs
A and B are turned on or off. For example, when 2100-GK61 input 3 is
momentarily turned on in rung 7, SMP-3 Output A is energized via
Local:1:0:Data[0].3.
See Logic Control Data and Status Data tables from the SMP-3 manual on the
last page of this Tech Note.

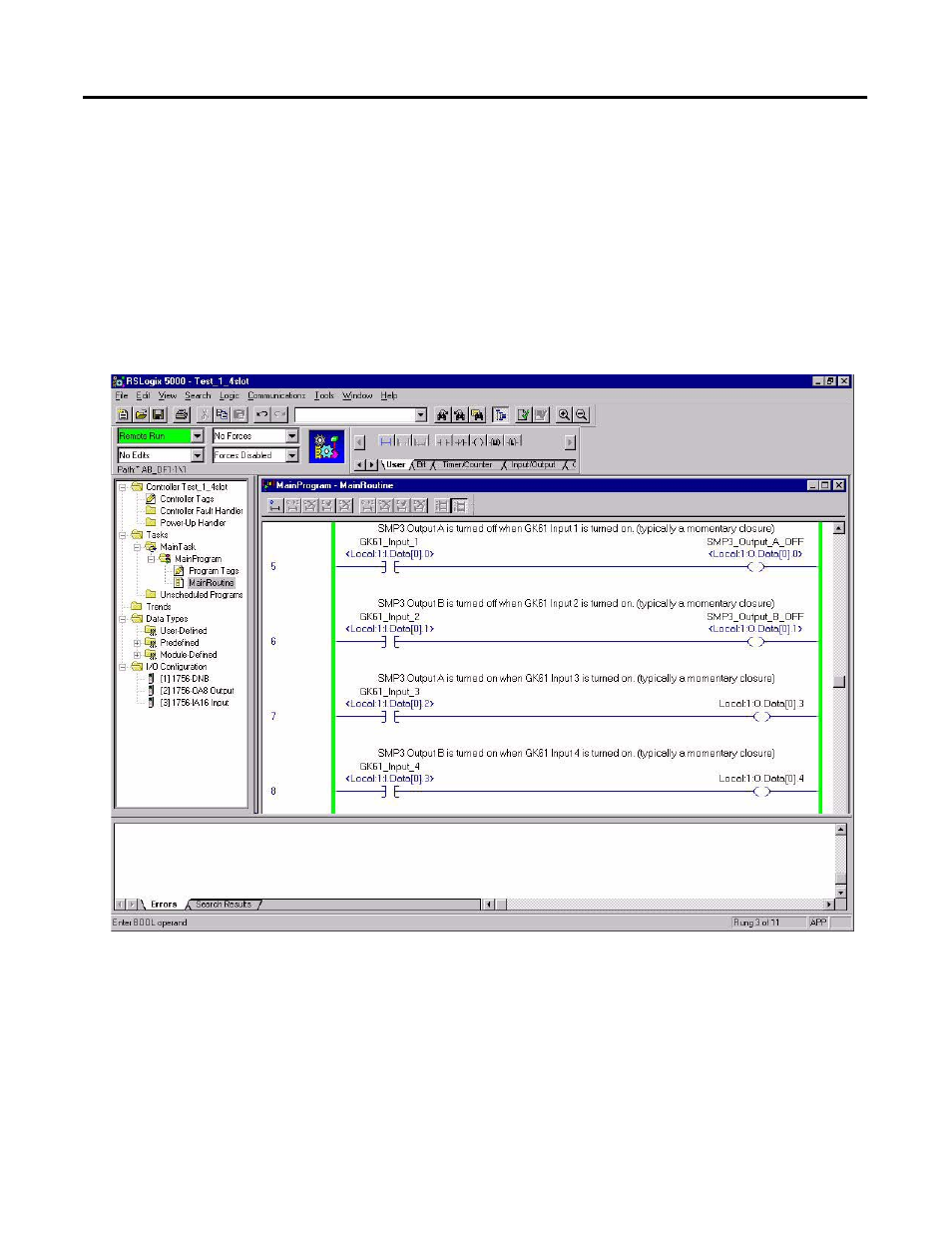

Figure 5.13
