DeviceNet to SCANport Communication Module with Digital Inputs Parameters B-15
Enabling the Adapter to Transmit Peer I/O
You can have your DeviceNet to SCANport Communication Module
with Digital Inputs send I/O data to another DeviceNet to SCANport
Communication Module with Digital Inputs on the network.

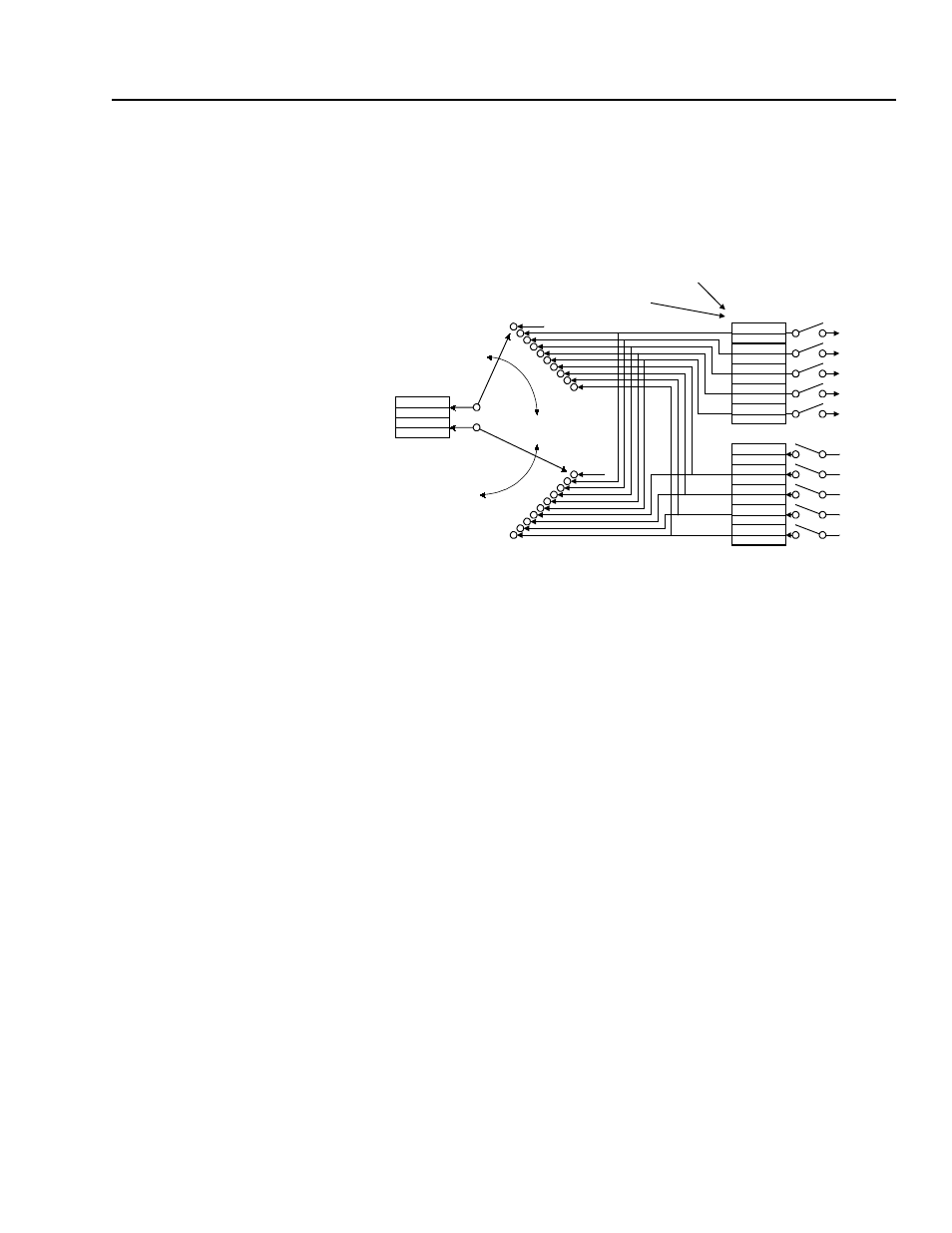

Figure B.8
Transmitting I/O to Another Adapter
To have your adapter send output data to another adapter, you need to:
1. Ensure the Peer Output Enable (40) parameter is Off.
2. Set the Peer A Output (38) parameter to the source of the output
data.
3. If transmitting four words, set the Peer B Output (39) parameter
to a different source of output data.
4. Set the Peer Output Time (41) parameter to the minimum time
interval between peer messages.
5. Set the Peer Output Skip (42) parameter to a value between 1 and
16. The product of this value and the value of the Peer Output
Time (41) parameter determine the maximum time interval
between peer messages if there is not a change in status.
6. Set the Peer Output Enable (40) parameter to On.
Your adapter is now configured to transmit I/O data to another
DeviceNet to SCANport Communication Module with Digital Inputs.
Make sure another DeviceNet to SCANport Communication Module
with Digital Inputs on the DeviceNet network is configured to receive
peer data. Refer to the “Enabling the Adapter to Receive Peer I/O”
section in this chapter.
