Rockwell Automation 2100-GK61 DeviceNet to SCANport User Manual
Page 200
Publication 2100-DU021B-EN-P - January 2004
Ladder Logic Programming—Including Reading Inputs 5-15
The following programming example shows how to read 2100-GK61
inputs and control SMP-3 outputs with an SLC-500.

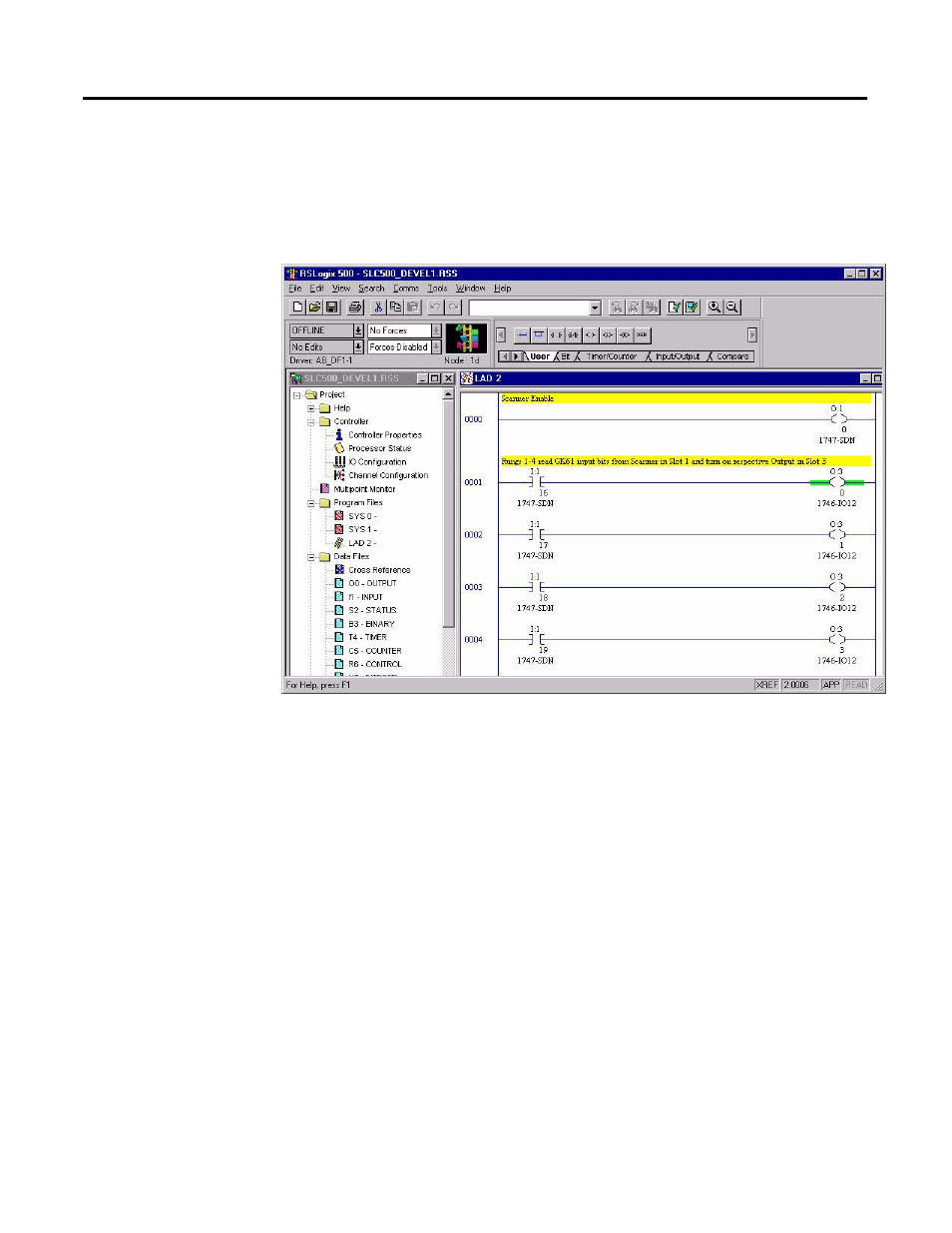

SLC Code: Rung 0 enables scanner; Rungs 1 through 4 read 2100-GK61
inputs and turn on respective output in Slot 3 I/O Card.
Figure 5.10
