Configuring a Scanner to Communicate with the Adapter
4-11
14. Pictures of various icons appear. Select the icon by clicking on
the one which best represents your device.

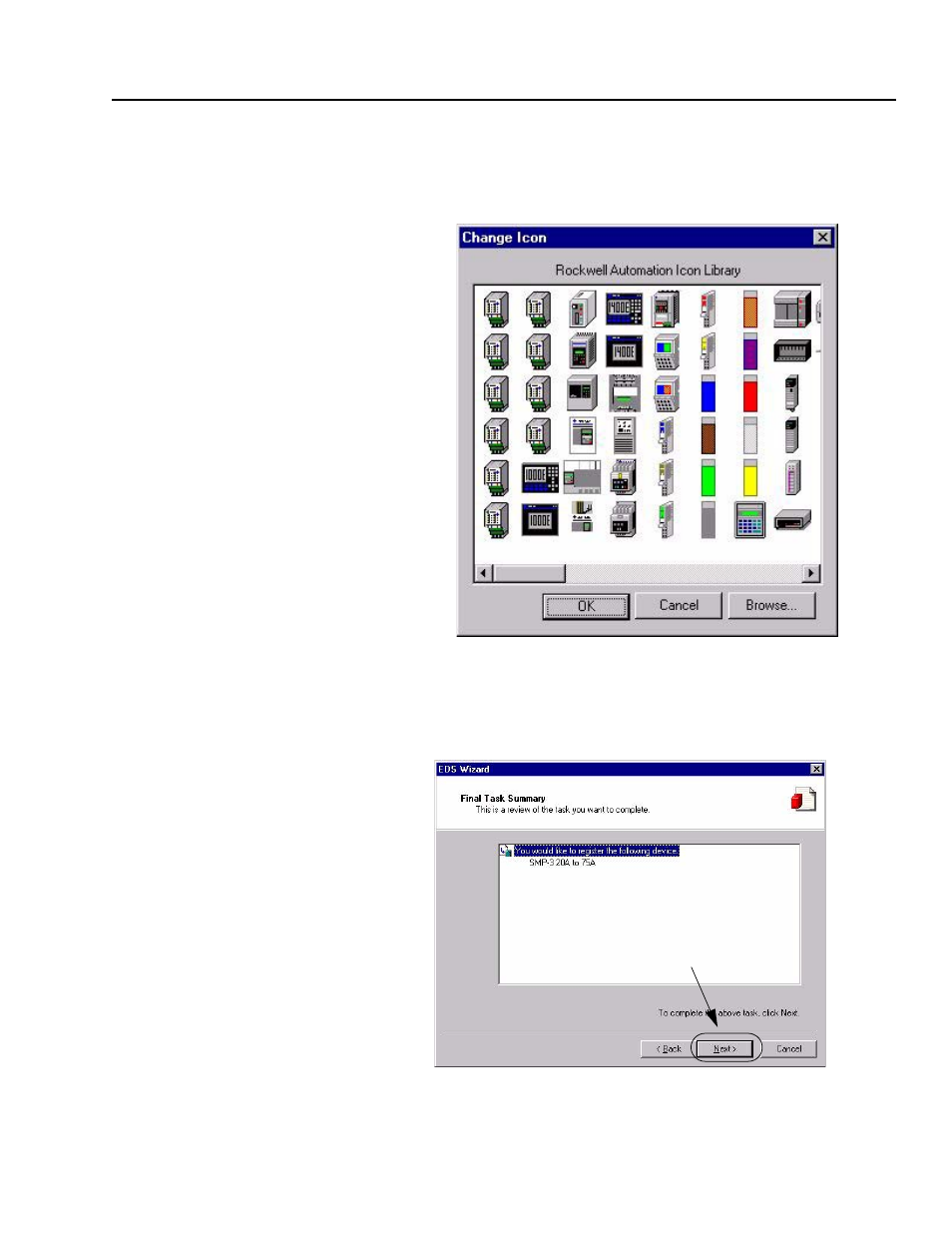

Figure 4.14
Icon Options
15. Click Next to complete EDS file registration.
Figure 4.15
Final Task Summary Screen
Step #15
