Configuring a Scanner to Communicate with the Adapter 4-5
2. An Unrecognized Device screen appears. The device identity can
be obtained from this screen. Included in the example shown in
Figure 4.4 are Vendor Code (1), Device Code (122), Product
Code (20), and Major Revision Code (1).

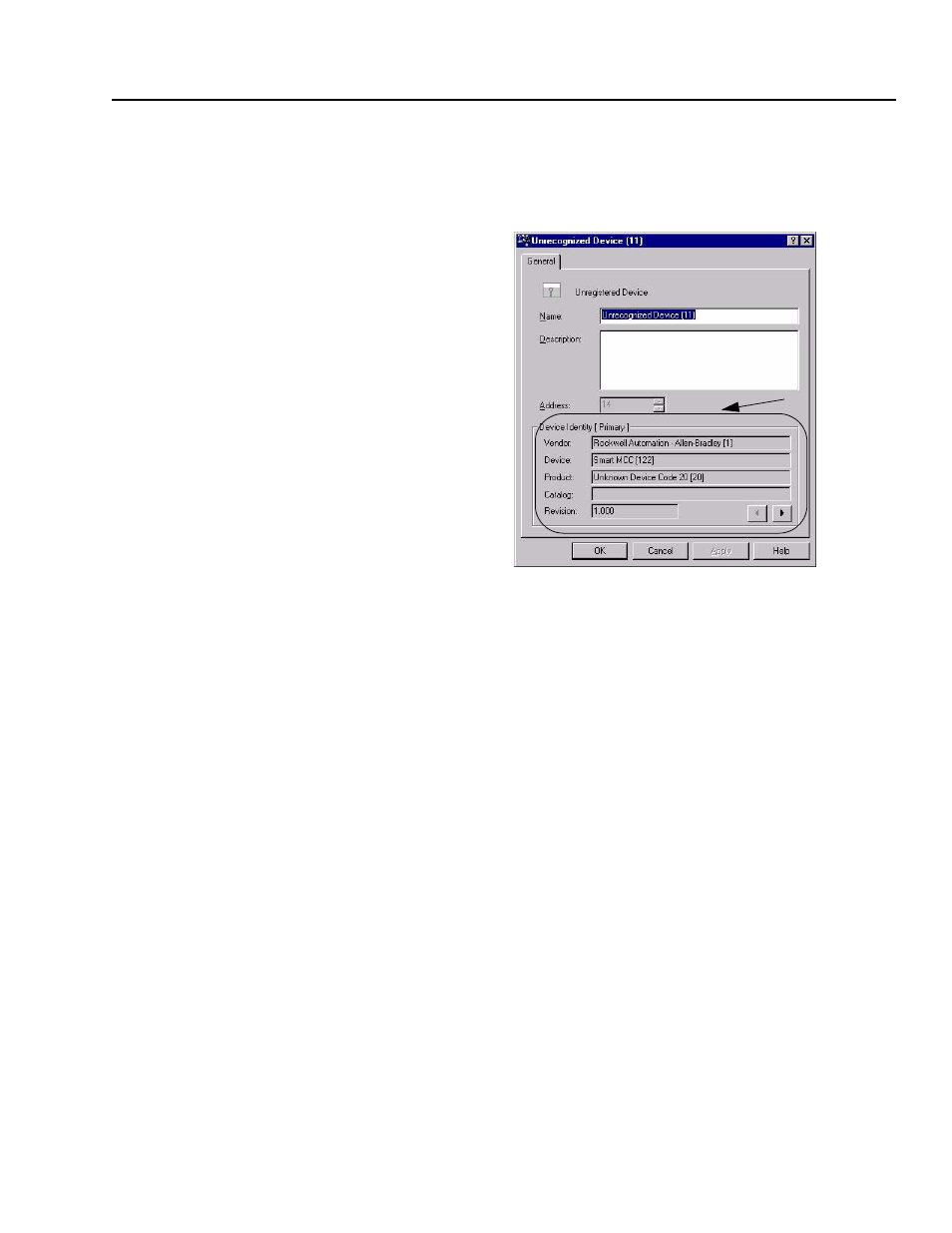

RSNetWorx Information Screen for Unrecognized Device
3. EDS files are available for download at the Allen-Bradley web
site http://www.ab.com/networks/eds. There is a unique EDS
(Electronic Data Sheet) file for each size of E3, each type of
DSA, and every combination of 2100-GK61 and connected
SCANPort Product (Drive, SMC, or SMP-3).
Step #2
