3-6 Configuring the DeviceNet to SCANport Communication Module with Digital Inputs
8. Click on the Groups pull-down arrow and select DeviceNet
Module. The display changes, listing only the parameters
associated with the 2100-GK61.

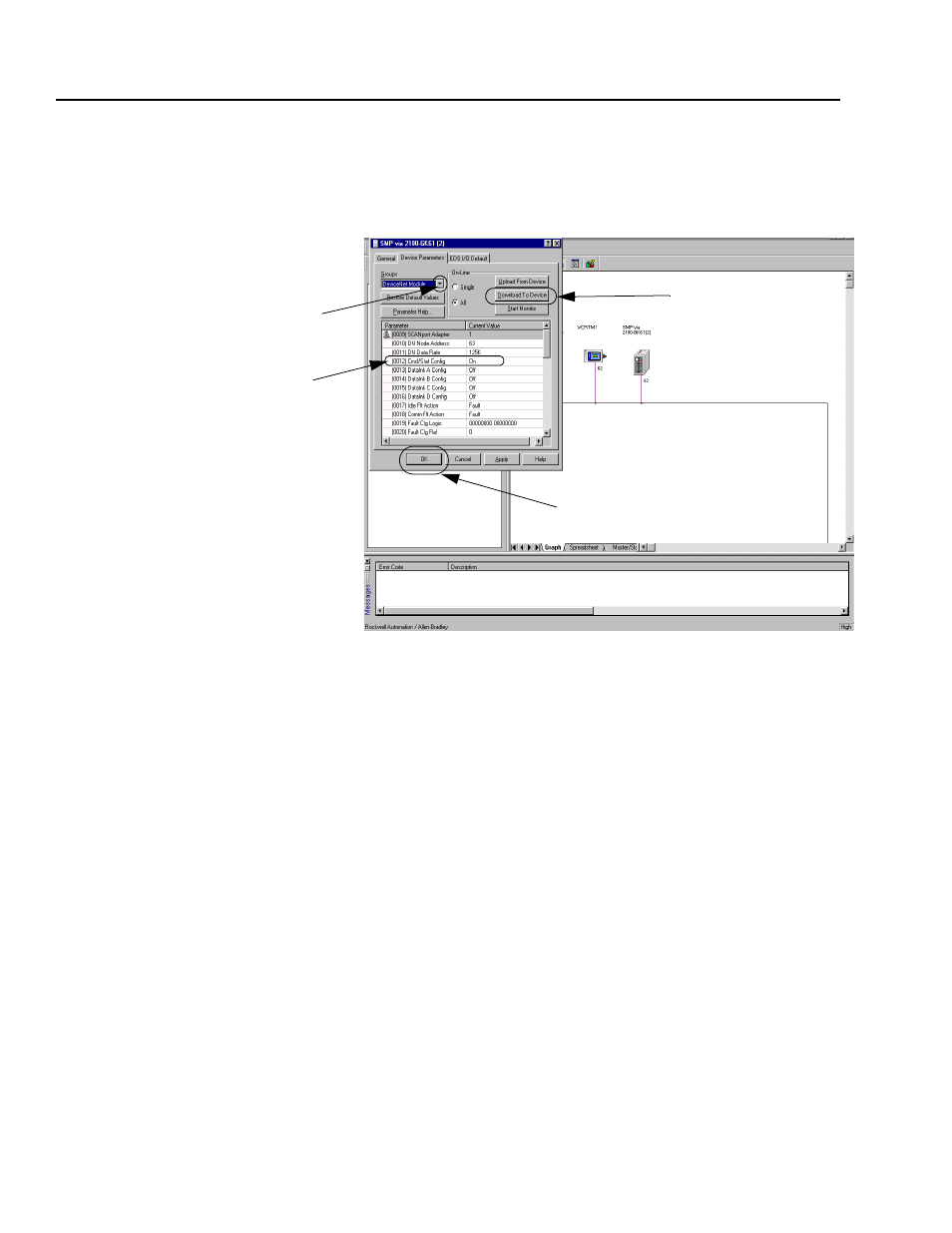

Figure 3.5
Device Parameters, Module Only
9. Double click on the parameter(s) you wish to edit. Change the
data to the desired value (refer to Appendix B for acceptable
values for each parameter). A lock icon indicates that the
parameter is read-only and cannot be changed.
10. Click on the Download to Device button to save the changes
made to the module.
Important: It may be necessary to reset the adapter for the changes
to take effect. Refer to Appendix B to see if the parameter you
changed required the module to be reset in order to take effect.
11. Click on the OK button to return to the graph screen.
Step #10
Step #11
Step #9
Step #8
