Publication 2100-UM001B-EN-P – January 2001
2-8 Installation
5. Plug the connector into the module.
6. Connect the Digital Inputs to the Digital Input six (6) pin connec-
tors. Below is the connection pinout detail.

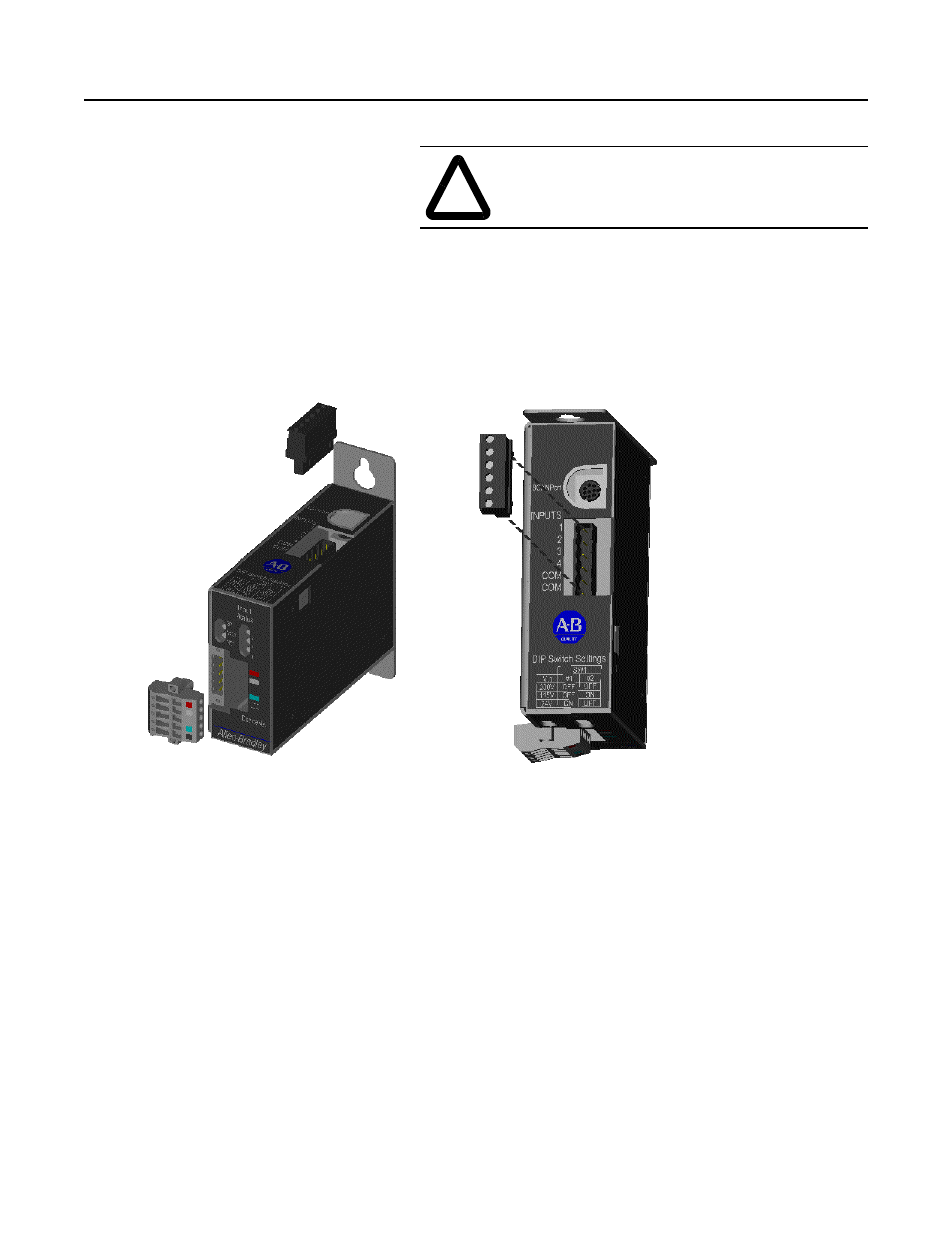

Figure 2.4
Digital Input Connections
7. Plug the Input connector into the module.
8. Connect the SCANport cable to the communications adapter and
then to the SCANport product.
!
ATTENTION: Danger of electrical shock exists if
power is not disconnected to Digital Input Devices.
Verify power is removed before proceeding.
Pin 1 = Input #1
Pin 2 = Input #2
Pin 3 = Input #3
Pin 4 = Input #4
Pin 5 = Input Common
Pin 6 = Input Common
