AlliedView™-EMS 3.11 Device Management Guide

Page 65 of 402

AT-8224XL

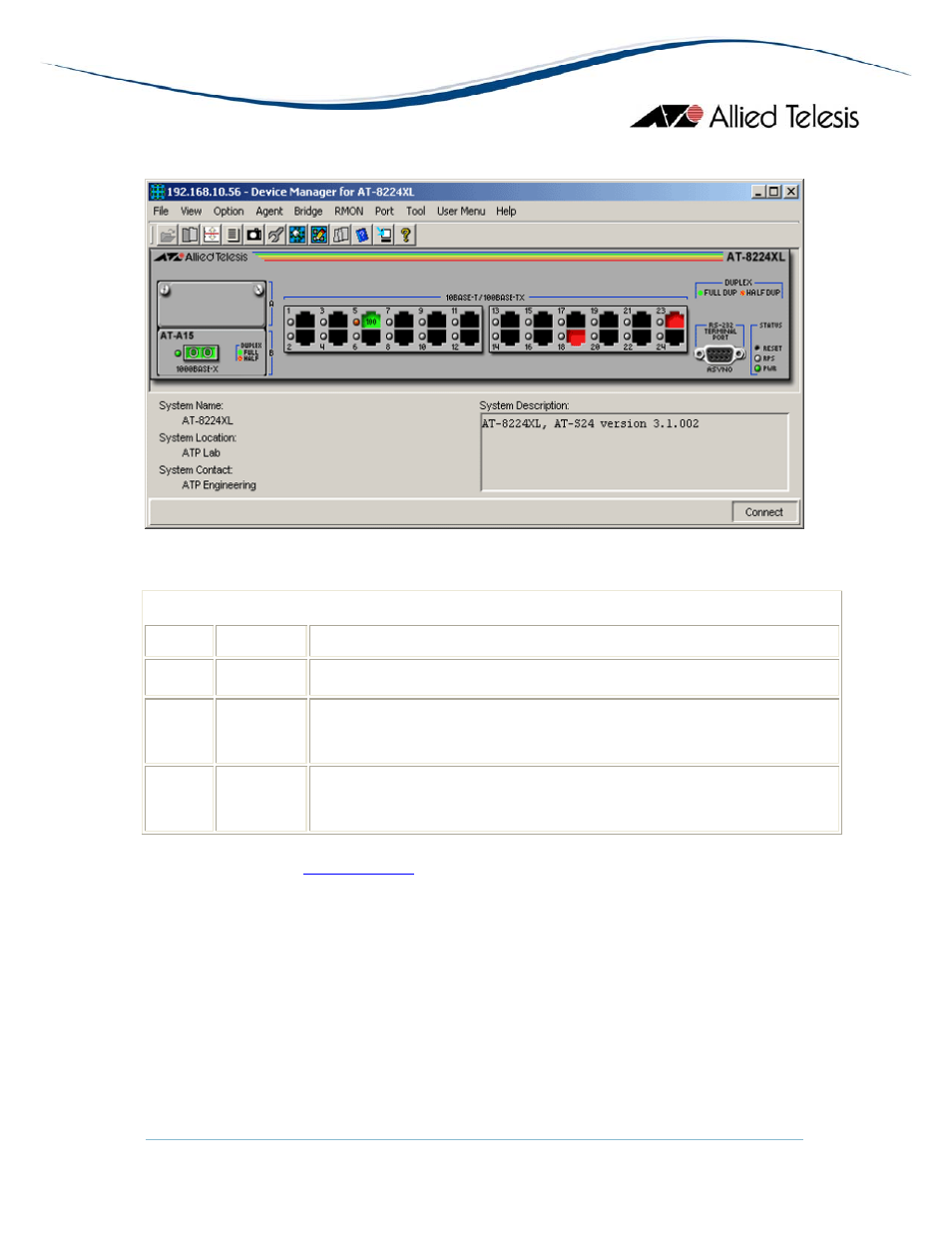

Device Manager LEDs for AT-8200XL Series

LED

State

Description

PWR

Green

The switch is receiving power.

RPS Green

Gray

An optional redundant power supply is connected to the switch.

There is no redundant power supply connected to the switch.

DUPLEX Green

Orange

The port is operating at full-duplex mode.

The port is operating at half-duplex mode.

Note

- Please refer to

Uplink Modules

for the operations and behavior of the expansion

modules installed on these devices.

Agent Menu

From the Agent menu, you can view and edit the system information for the device, or log
into the CLI using Telnet.

System Info

Displays basic system information, including system name, location, contact and
description.
