AlliedView™-EMS 3.11 Device Management Guide

Page 108 of 402

AT-9006T

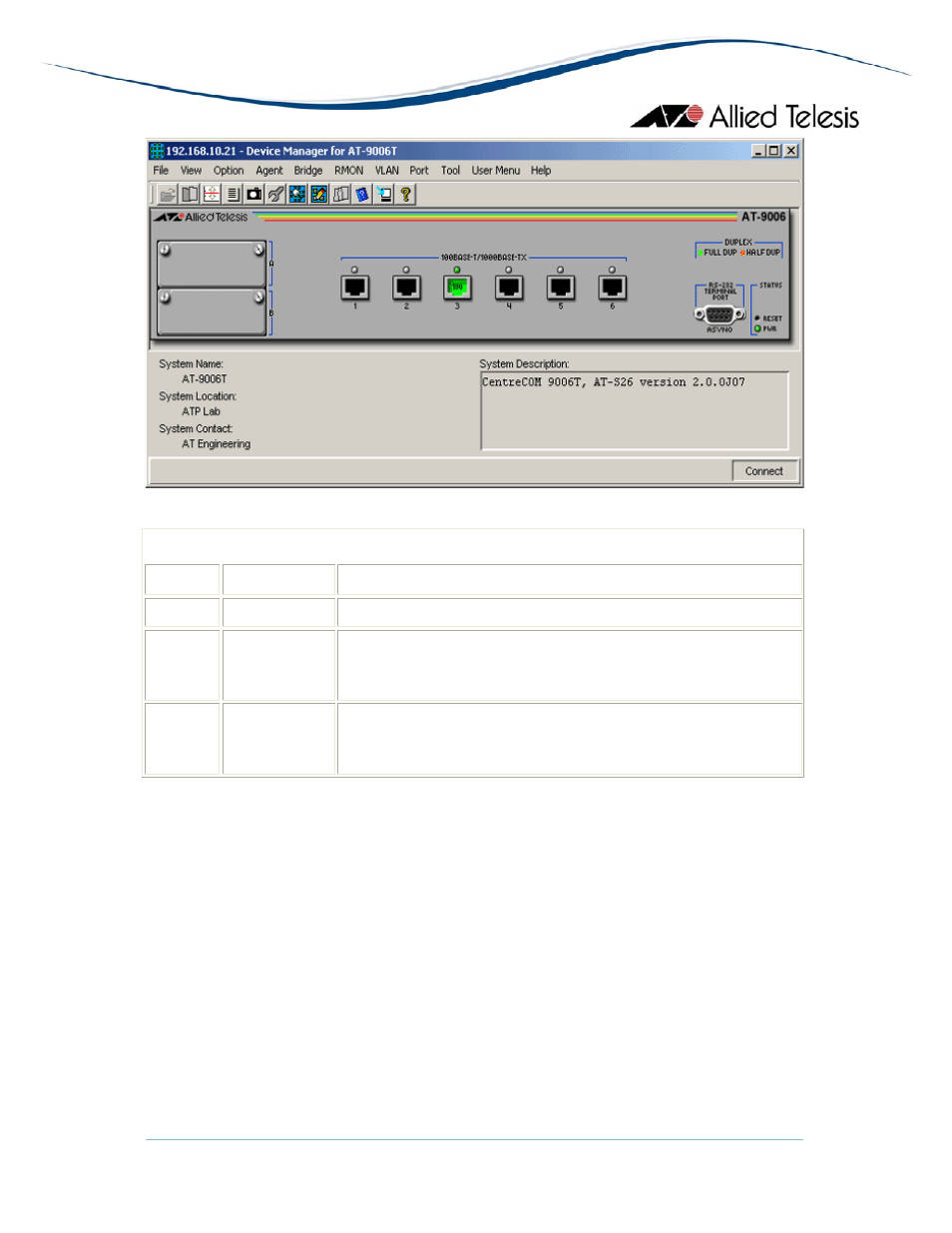

Device Manager LEDs for AT-9006 Family

LED

State

Description

PWR

Green

The switch is receiving power.

RPS Green

Gray

An optional redundant power supply is connected to the switch.

There is no redundant power supply connected to the switch.

DUPLEX Green


Orange

The port is operating in full-duplex mode.

The port is operating in half-duplex mode.

Note

- Ports on the expansion modules are numbered starting from 7. Slot A's leftmost port

has the smallest number and Slot B's rightmost port has the largest number.

Agent Menu

From the Agent menu, you can view and edit the system information for the device, or log

into the CLI using telnet.

System Info

Displays basic system information, including system name, location, contact and

description.


Firmware Info

Displays firmware version.
