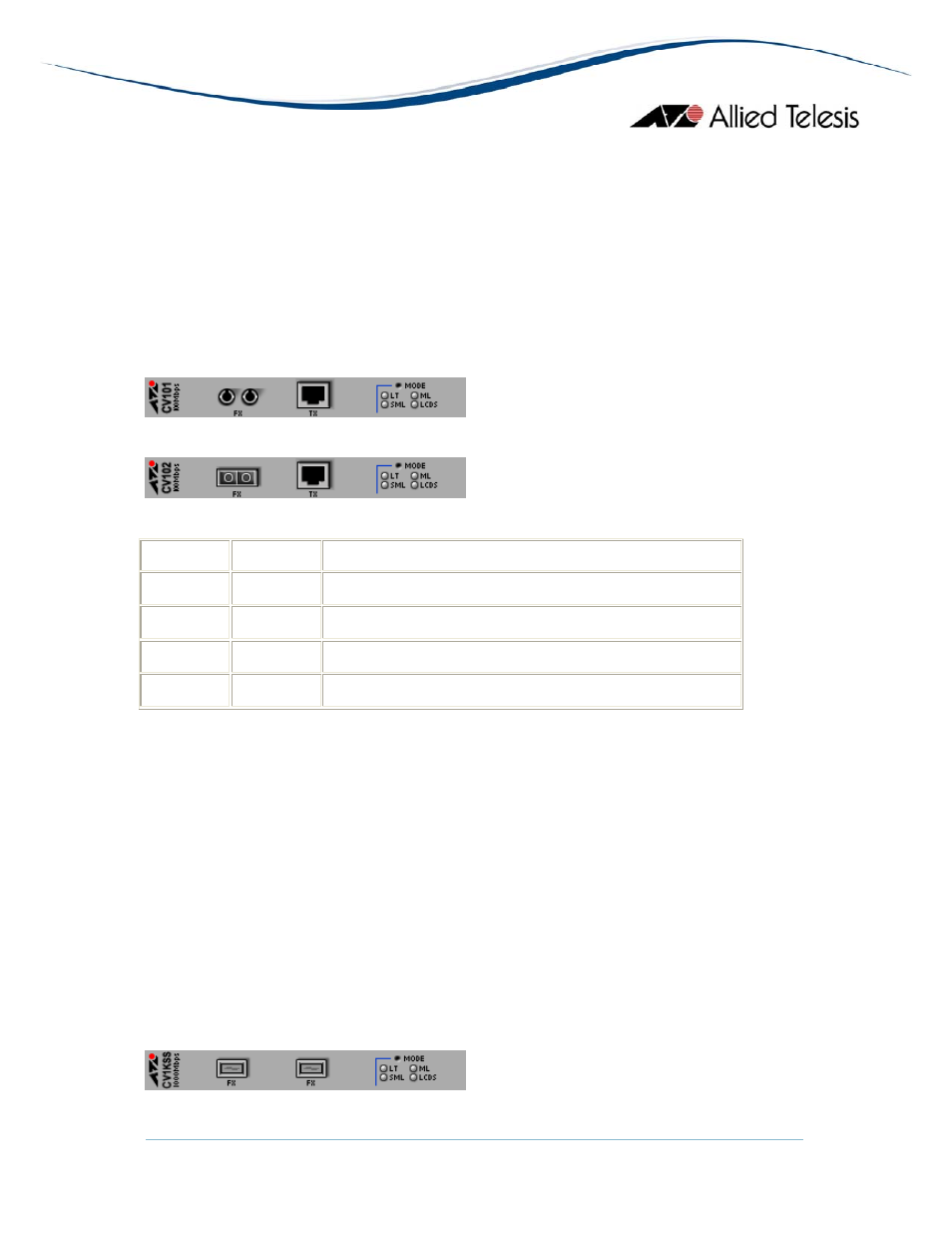

AlliedView™-EMS 3.11 Device Management Guide

Page 332 of 402

Note

- The current firmware version does not allow Device Manager to configure or

display information on the T1/E1 port of the AT-CM70S.

Context Menu

Note

- Selecting the Telnet option in the RS-232 Terminal Port Context Menu of the

AT-CM70S will establish a Telnet session to the AT-CV5M01 management module.

AT-CV10x

AT-CV101: 100TX to 100FX (ST)

AT-CV102: 100TX to 100FX (SC)

LED

State

Description

LT

Green

Link Test is enabled

SML

Green

Smart Missing Link is enabled

ML

Green

Missing Link is enabled

LCDS

Green

Line Card Dip Switch is enabled


Module Info

Note

-The current firmware version does not return the correct value for the

Module MAC Address parameter.

Note

- Configuring the Module Operation Mode parameter will result in the error

message: "The error occurred with 'Set' operation. Error: time out occurred".

Port Info

Note

- The current firmware version does not allow any of the parameters under

this table to be configured.

AT-CV1KSS

1000X to 1000X SFP
