AlliedView™-EMS 3.11 Device Management Guide

Page 159 of 402

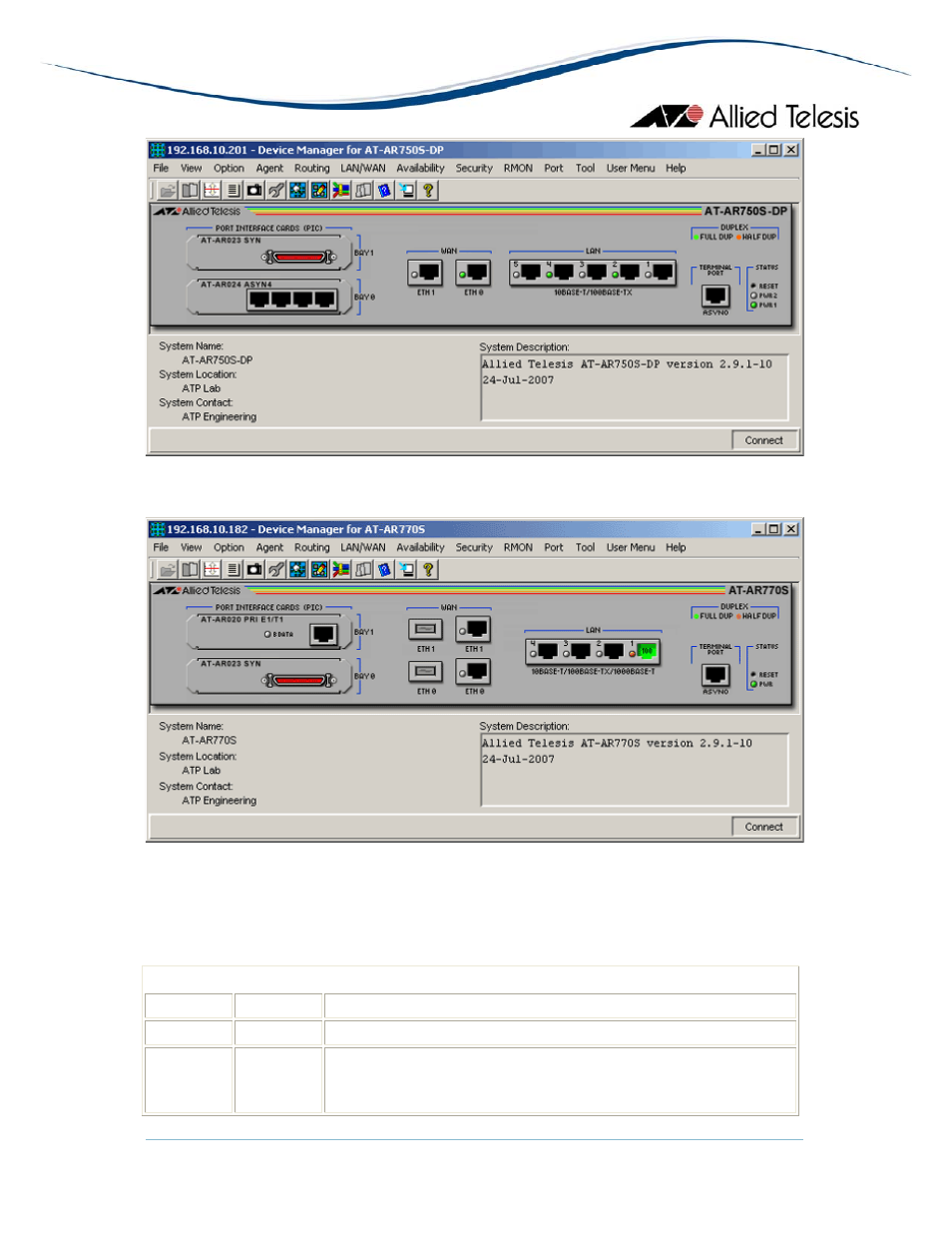

AT-AR750S-DP


AT-AR770S

Note

- AT-AR770S: DUP LEDs of active ports will always be orange regardless of the actual

duplex mode of the ports. This is because the current firmware version always returns a
half-duplex value for the Duplex Mode parameter of these ports.

Device Manager LEDs for the AT-AR700S Series

LED

State

Description

PWR

Green

The router is receiving power from the main power supply unit.

DUPLEX Green

Gray

The port is operating at full-duplex.

The port is either inactive or is operating at half-duplex.
