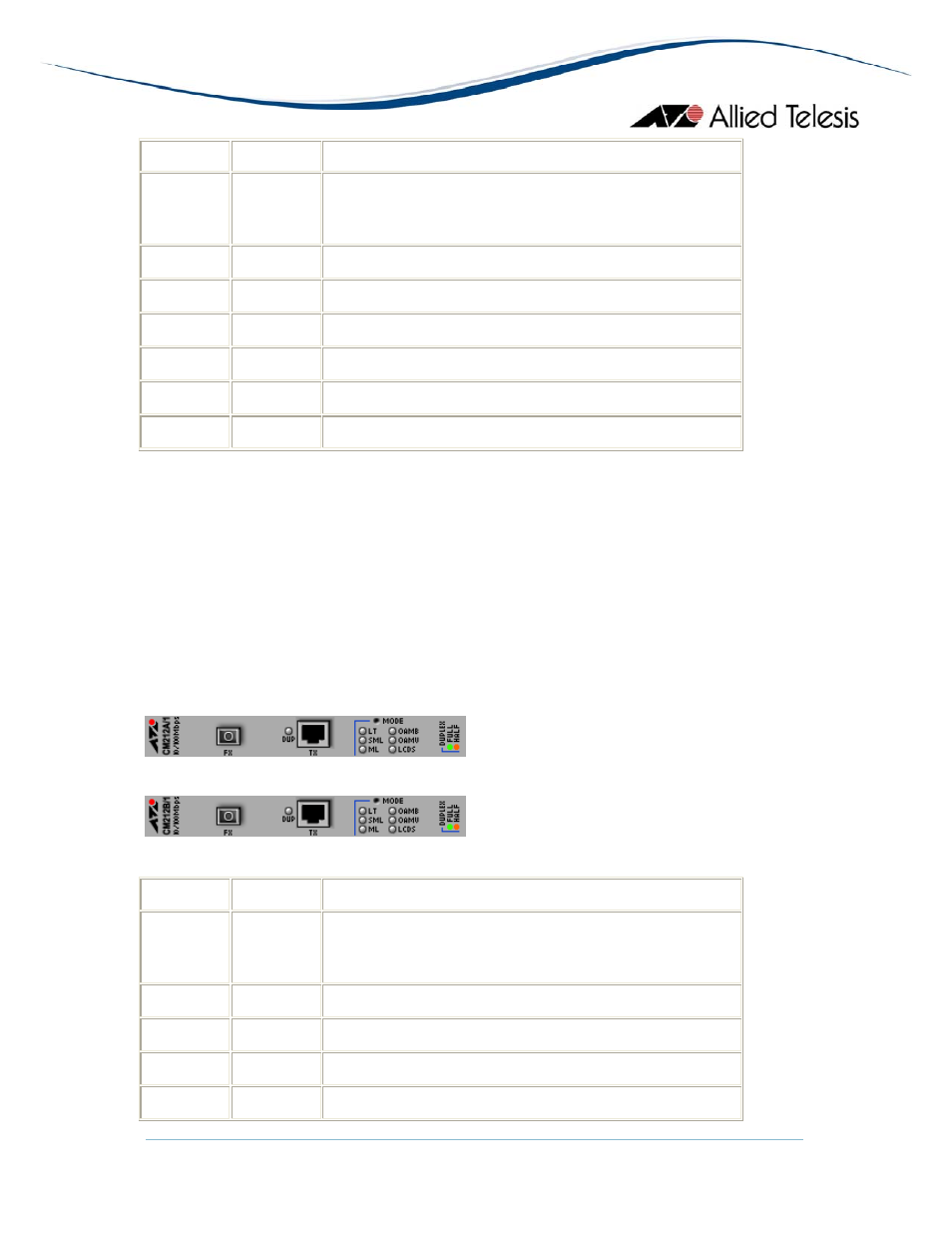

AlliedView™-EMS 3.11 Device Management Guide

Page 329 of 402

LED

State

Description

DUP

Green

Orange

The port is operating in full-duplex mode.

The port is operating in half-duplex mode.

LT

Green

Link Test is enabled

SML

Green

Smart Missing Link is enabled

ML

Green

Missing Link is enabled

OAMB

Green

OAM Bypass is enabled

OAMV

Green

OAM Visible is enabled

LCDS

Green

Line Card Dip Switch is enabled

Port Info

Note

- The value of the Port Mode parameter of a port with an established link

automatically changes to 'auto' when the settings of the port to which it is
connected are modified.

Note

- The value of the Port Speed parameter of a port with an established link

automatically changes to '10Mbps' when the value of its Port Mode parameter is
changed from 'auto' to 'manual'.

AT-CM212x/1

AT-CM212A/1: 10/100TX to 100FX (SC, 15km, SM)

AT-CM212B/1: 10/100TX to 100FX (SC, 15km, SM)

LED

State

Description

DUP

Green

Orange

The port is operating in full-duplex mode.

The port is operating in half-duplex mode.

LT

Green

Link Test is enabled

SML

Green

Smart Missing Link is enabled

ML

Green

Missing Link is enabled

OAMB

Green

OAM Bypass is enabled
