Time Proportioned Output Configuration
The Time Proportioned Output Configuration page sets the parameters for the time proportioned outputs in-
stalled. Outputs can be configured as control outputs or event (alarm) outputs. A time proportioned output cycles
on and off. The time the output is on versus off The Time Proportioned Output Configuration page is shown below.
You can see and change all of the parameters on the Output Configuration page. Only those that apply will be
relevant. For example, you can set the Event Output Parameters even though you have the Output Function set to
Control. Only parameters relating to control outputs have any effect on the controller. If you change the Output
Function to Event, the Event Output Parameters previously entered are used.
Note: You must click Submit to send the new values to the Series PD.

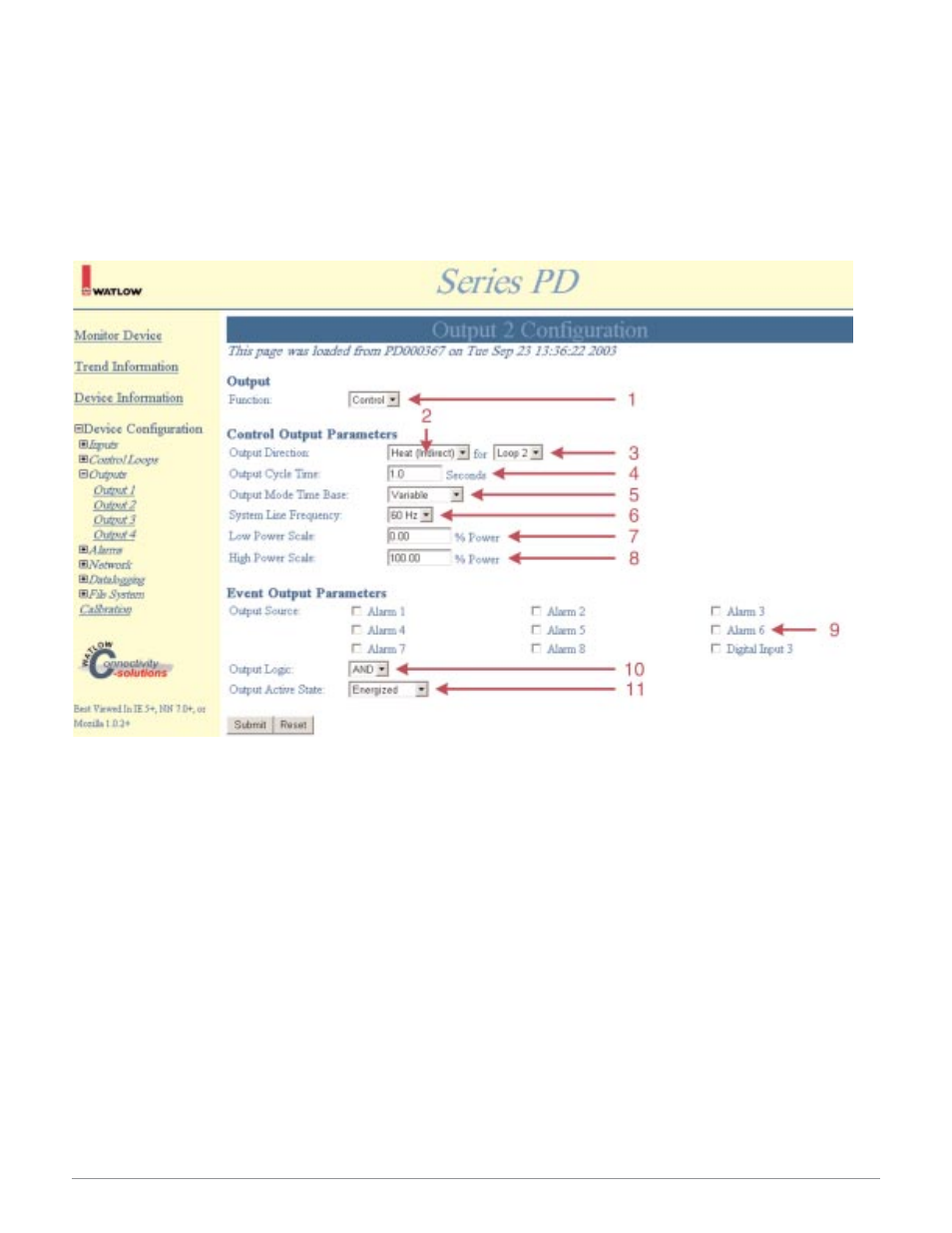

Figure 41 — Time Proportioned Output Configuration Web Page Example
Note: Red tag arrows and tag numbers are links to item descriptions. Click on a red tag arrow or number to go to a description of the item.
