Output 2 solid-state relay, Output 2 switched dc, Output 2 open collector – Watlow Series PD User Manual

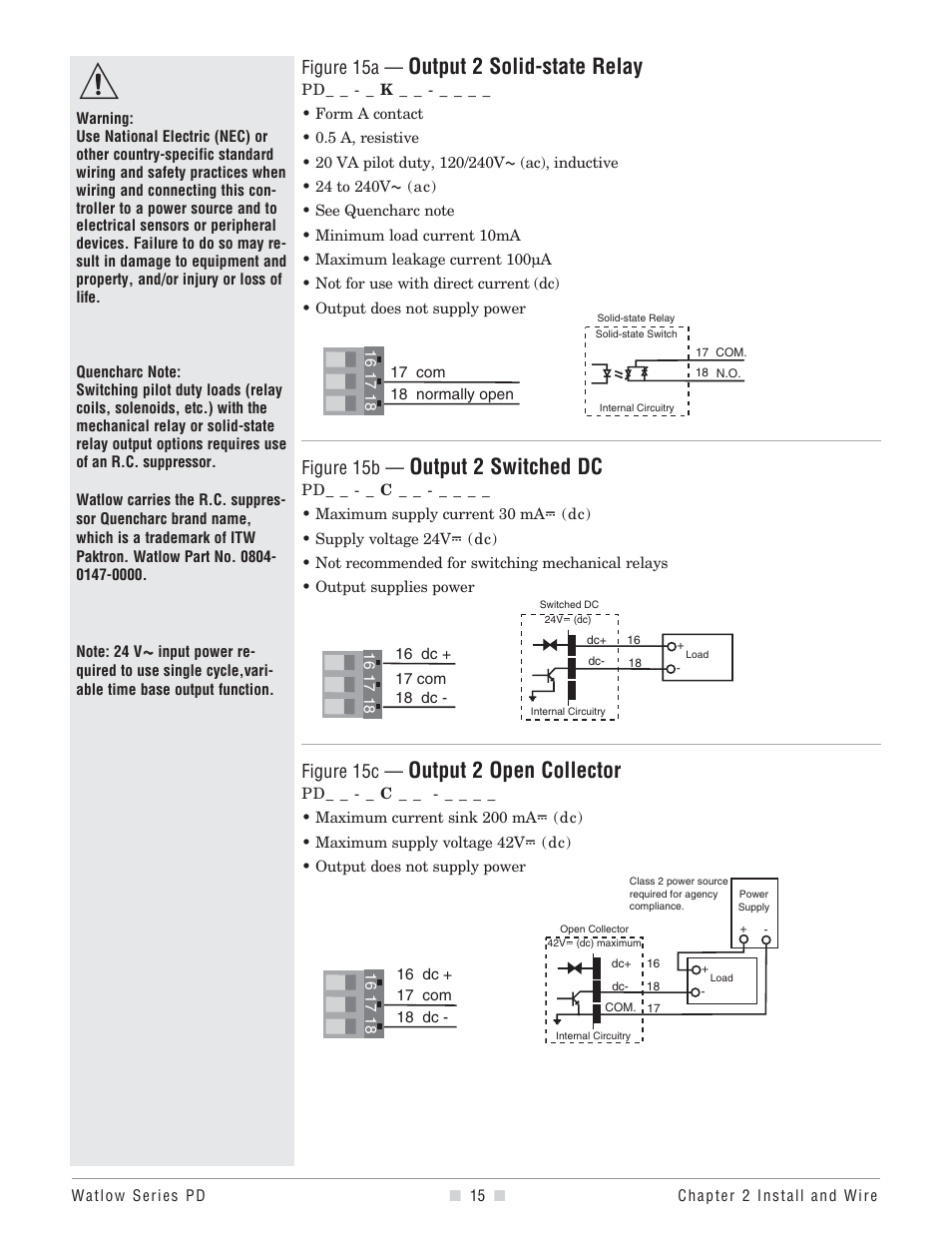

Page 17: Figure 15a, Figure 15b, Figure 15c
