Output 1 open collector, Output 1 process, Output 2 mechanical relay – Watlow Series PD User Manual

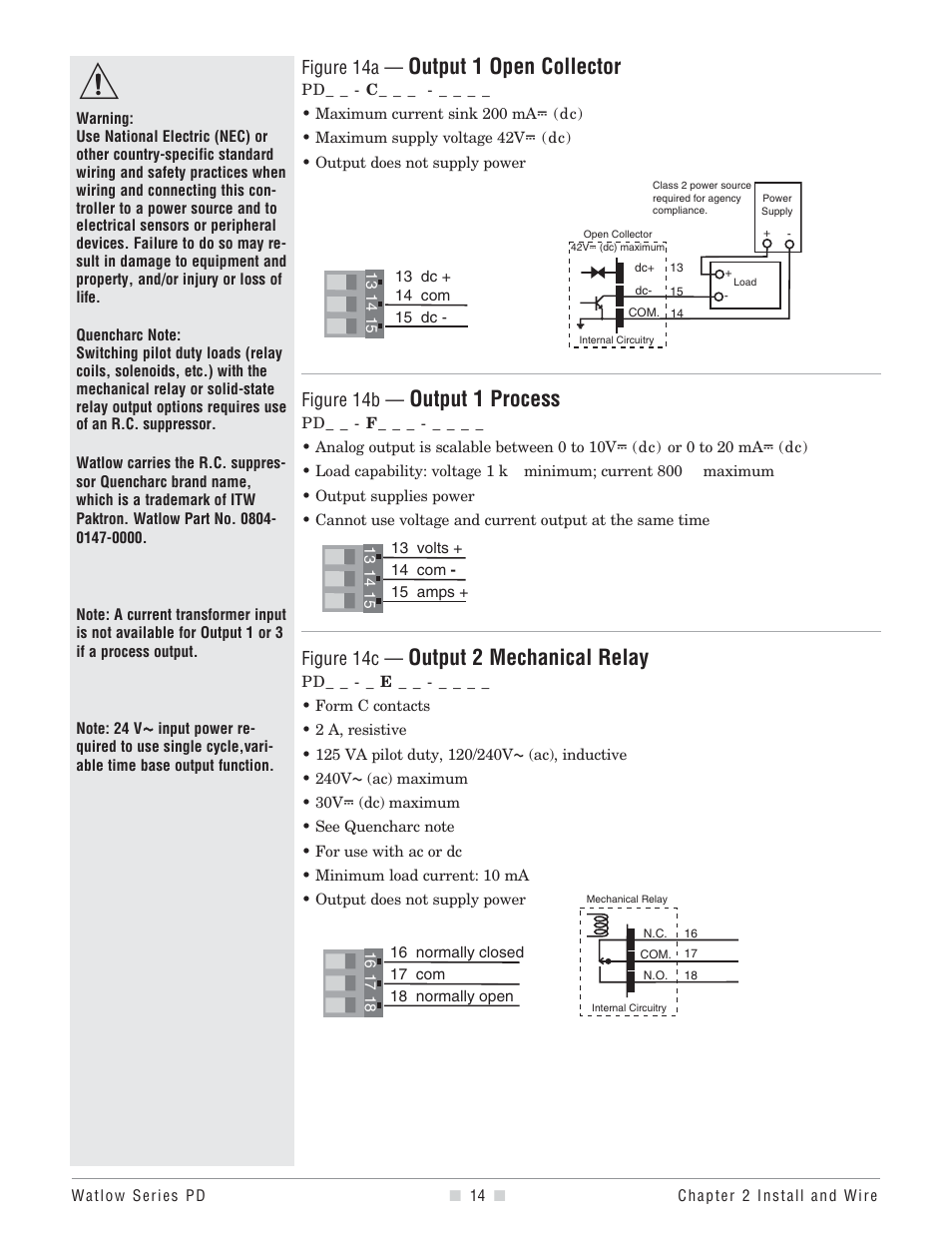

Page 16: Figure 14a, Figure 14b, Figure 14c
